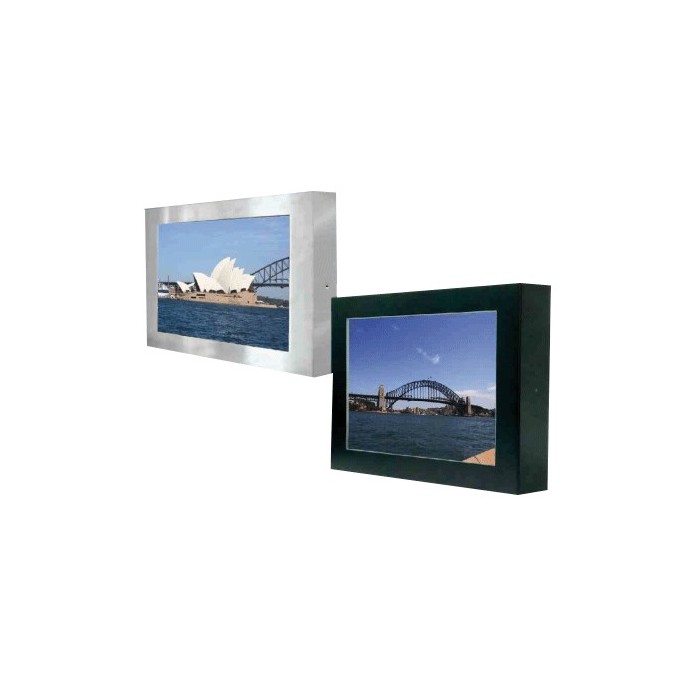

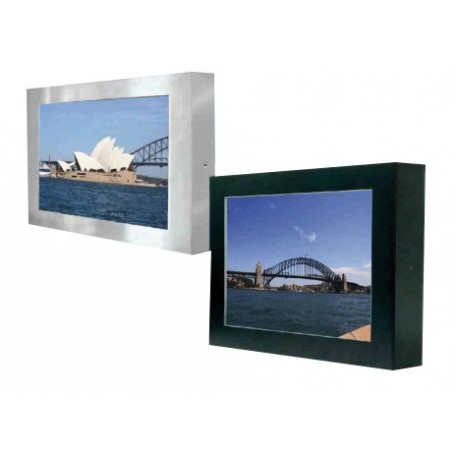

Full IP65 / NEMA 4 chassis 12.1” : R12T600-65M1 Agrandir l'image

Full IP65 / NEMA 4 chassis 12.1” : R12T600-65M1

Documentation détaillée
Description
Screen Size : 12.1"
Display Resolution (pixel) : 800x600
Contrast Ratio : 500:1 (typ.)
Brightness (CD/m^2) : 350 (typ.)

Specification
Model Name : R12T600-65M1
Screen Size : 12.1"
Active Display Area (mm) : 246.0 (H) x 184.5 (V)
Pixel Pitch (mm) : 0.3075 (H) x 0.3075 (V)
Display Resolution (pixel) : 800x600
Contrast Ratio : 500:1 (typ.)
Display Color : 262,144 (6bits/color)
Brightness (CD/m^2) : 350 (typ.)
Viewing Angles (CR >=10) : -65~65 (H); -75~45 (V)
Synchronization Range_Horizontal / Vertical : 31.5~46.9KHz / 60~75Hz
Recommended Resolution : 800x600@60Hz, 75Hz
Signal Connector : D-Sub 15pin
I/O : 3 pin Power cable(IP65 connector); 10 pin VGA cable (IP65 connector); Optional 10 pin RS232 or USB cable(IP65 connector);
Power Source : DC12V in
Power Consumption : 20 W typical, normal operation
Power Management : VESA DPMS Compliant
Plug & Play : VESA DDC 1/2B
Protection glass (optional, reflection rate<0.5%) : YES

*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
