Full IP65 / NEMA 4 chassis 15” : R15L600-65C3 Agrandir l'image

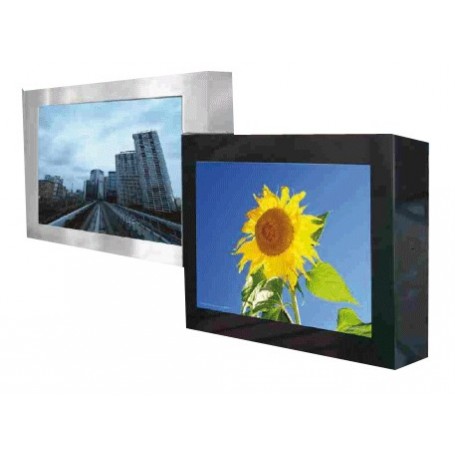

Full IP65 / NEMA 4 chassis 15” : R15L600-65C3

Documentation détaillée
Description
Screen Size : 15"
Display Resolution (pixel) : 1024x768
Contrast Ratio : 500:1 (typ.)
Brightness (CD/m^2) : 250 (typ.)

Specification
Model Name : R15L600-65C3
Screen Size : 15"
Active Display Area (mm) : 304.1 (H) x 228.1 (V)
Pixel Pitch (mm) : 0.297 (H) x 0.297 (V)
Display Resolution (pixel) : 1024x768
Contrast Ratio : 500:1 (typ.)
Display Color : 16.2M (6bits+FRC)
Brightness (CD/m^2) : 250 (typ.)
Viewing Angles (CR >=10) : -70~70 (H); -60~60 (V)
Synchronization Range_Horizontal / Vertical : 31.5~60.0KHz / 60~75Hz
Recommended Resolution : 1024x768@60Hz, 75Hz
Signal Connector : 15 pin D-sub
I/O : 3 pin Power cable(IP65 connector); 10 pin VGA cable (IP65 connector); Optional 10 pin RS232 or USB cable(IP65 connector);
Power Source : DC12V in
Power Consumption : 25 W typical, normal operation
Power Management : VESA DPMS Compliant
Plug & Play : VESA DDC 1/2B
Video Input (optional) : yes
Optional Touch Screen : Resistive,Capacitive

*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
