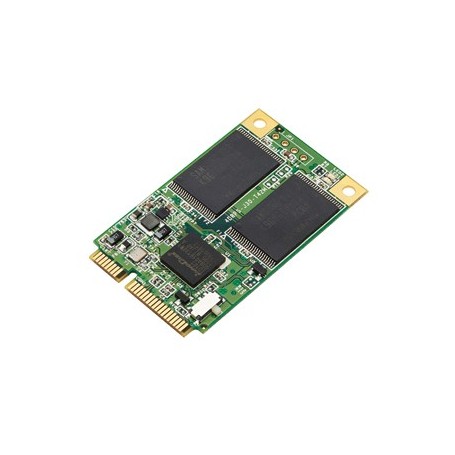

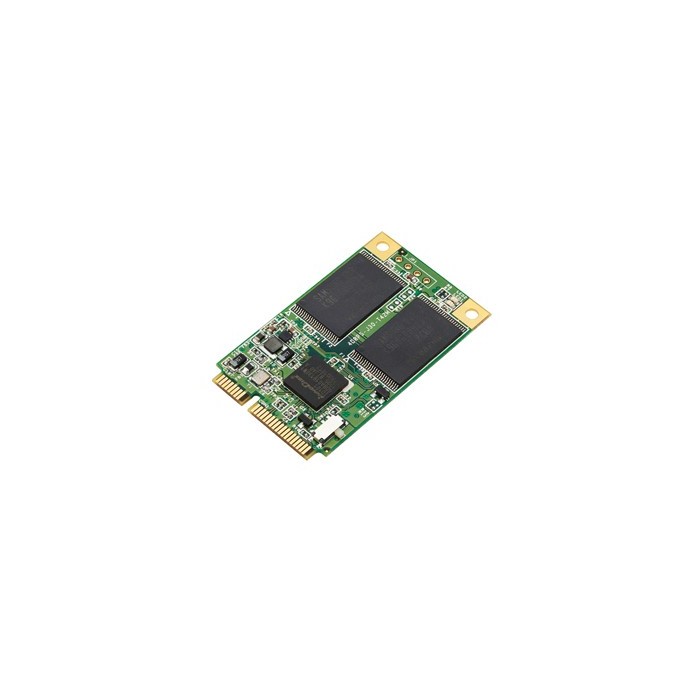

mSATA D150Q Agrandir l'image

mSATA D150Q

Description

Innodisk’s mSATA D150Q is designed in a standard mini PCIe form factor with  a SATA interface. This unique combination provides fast data transfer rate performance and allows for effective integration in small form factor applications, such as digital signage and notebooks. The mSATA D150Q also supports the SATA II standard (3.0Gb/s) and is compliant with JEDEC MO-300 standards and SATA-IO mini SATA standards. The mSATA D150Q is an SLC-based flash device and is available in capacities from 2GB up to 64GB.

Features :

  • Static wear leveling algorithm support
  • S.M.A.R.T / iSMART disk health monitoring tool
  • Excellent data transfer speed
  • Write protection security
  • Built-in thermal sensor

Benefits :
The Innodisk mSATA D150Q provides manufacturers with a suitable replacement for hard disk drives (HDDs).

  • Enables personal computer design to be smaller and more compact
  • Reduces operation system boot time
  • Consumes less power than an HDD
  • Can be configured as a boot device or a data storage device

Specifications :

  • Model Name : mSATA D150Q
  • Interface : SATA II 3.0Gb/s
  • Type : Standard
  • Flash Type : SLC
  • Pin Definition : mSATA
  • Capacity : 2GB~64GB
  • Max. Channels : 4
  • Sequential R/W (MB/sec, max.) : 130/120
  • Max. Power consumption : 1.25W (3.3V x 380mA)
  • Thermal Sensor : Y
  • External DRAM Buffer : N
  • H/W Write Protect : Y
  • ATA Security : Y
  • S.M.A.R.T. : Y
  • Conformal Coating : N
  • Dimension (WxLxH/mm) : 29.8 x 50.8 x 3.5
  • Vibration : 20G@7~2000Hz
  • Shock : 1500G@0.5ms
  • MTBF : >3 million hours
  • Storage Temperature : -55°C ~ +95°C
  • Operation Temperature :
    - Standard Grade: 0°C ~ +70°C
    - Industrial Grade. OP: -40°C ~ +85°C
