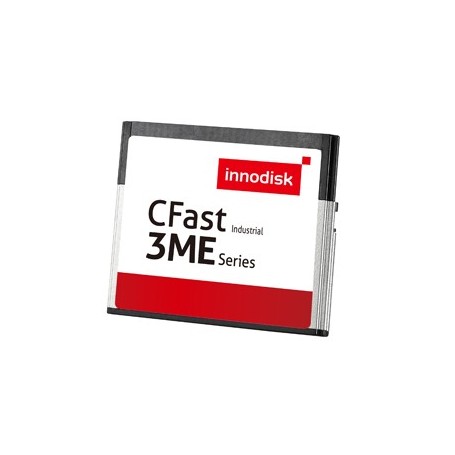

CFast 3ME Agrandir l'image

CFast 3ME


The Innodisk CFast 3ME operates at SATA III 6.0 Gb/s, which offers data transfer rate of read up to 310MB/sec. and of sequential write up to 150MB/s. Compliant with CFast 2.0 standard, it is designed with 7+17 pin connector and is SATA compatible. Due to the idle power saving, it reduces 35% power consumption. CFast 3ME is featured as small form factor, and suitable for most industrial application.

CFast 3ME can work under harsh environment, and complies with ATA protocol. Without additional drives, the disk can be configured as a boot device or data storage device. CFast 3ME support hardware write protect to prevent modification of valuable data on a device. Besides, through Innodisk's enhanced power cycling technology and more capacitors, CFast 3ME prevents data loss caused by sudden power failure. By using Innodsik's iSMART, users can not only monitor the operation status of SSD, but also visualize Wear-Leveling status with graphics.

Features :

  • SATA III interface
  • Extremely low power consumption
  • iSMART disk health monitoring
  • Intelligent error recovery system
  • Excellent data transfer speed
  • Hardware write protect
  • Enhanced power cycling management

Specifications :

  • Model Name : CFast 3ME
  • Interface : SATA III 6.0 Gb/s
  • Type : Standard
  • Flash Type : MLC
  • Connector : 7pin+17pin
  • Capacity : 8GB~128GB
  • Max. Channels : 2
  • Sequential R/W (MB/sec, max.) : 310/150
  • Max. Power consumption : 1.1W
  • Thermal Sensor : Optional
  • H/W Write Protect : Y
  • Dimension (WxLxH/mm) : 42.8 x 36.4 x 3.6
  • Vibration : 20G@7~2000Hz
  • Shock : 1500G@0.5ms
  • MTBF : >3 million hours
  • Storage Temperature : -55°C ~ +95°C
  • Operation Temperature :
    - Standard Grade: 0°C ~ +70°C
    - Industrial Grade. OP: -40°C ~ +85°C
