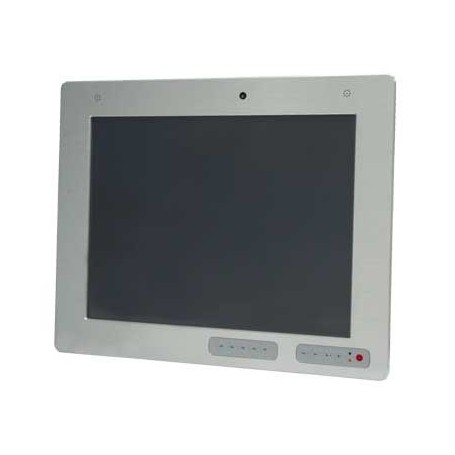

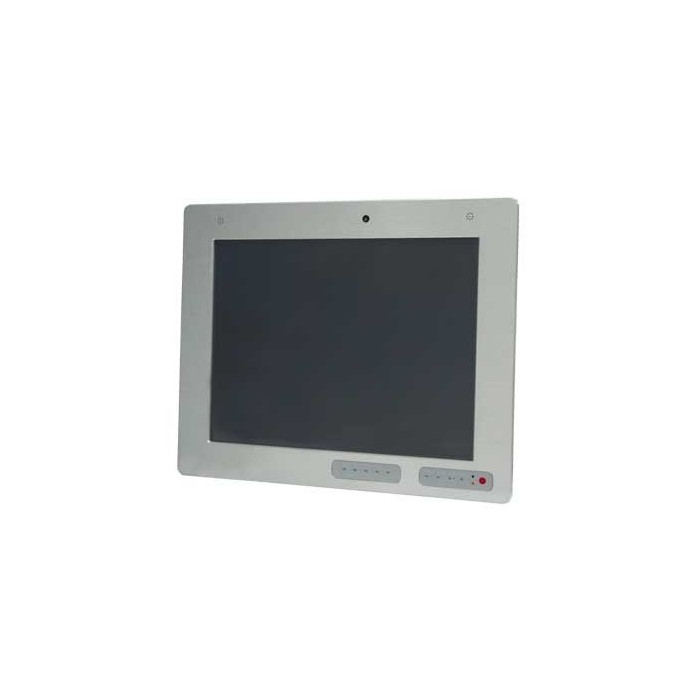

19'' ATOM D2550 fanless avec 1 slot extension PCI : IPPC19A7-RE Agrandir l'image

19'' ATOM D2550 fanless avec 1 slot extension PCI : IPPC19A7-RE

Documentation détaillée
Description
  • Dual-Core Intel® Atom™ Processor D2550
  • DDR3-1066 memory supported, up to 4GB
  • 2M battery backup SRAM
  • Auto brightness adjustment w/ front dimming sensor
  • Front keypads for OSD adjustment and function keys
  • IP65 front panel protection
  • 5-wire resistive touch panel
  • One PCI expansion slot
  • Slim & compact design

Spécification :

  • System Mainboard : IB806
  • CPU Type : Intel® Atomä Processor D2550 (1M Cache, 1.86 GHz)
  • System Speed : 1.86GHz
  • Memory : 1066 DDR3, up to 4GB
  • Construction : Aluminum & SGCC
  • Chassis Color : Silver
  • Front Panel External I/O : Function keys / LAN and COM port monitor LED
  • Rear Panel External I/O :
    - 2x Gigabit LAN (RJ45)
    - 4x USB 2.0 (USB Host. A-Type)
    - COM1 RS-232/422/485
    - 1x12V DC-in
    - 1x VGA
    - 1x Speaker-out microjack n
    - 1x Mic-in microjack
    - 1x 6-pin Digital IO
  • Expansion I/O : 1x PCI slot
  • Storag : 1x 2.5” HDD drive bay
  • Mounting : VESA mount, 75mm x 75mm and 100mmx100mm
  • Power Suppl : +12V DC-in, 84W power adaptor
  • Dimensions : 465mm(W) x 390mm(D) x 73mm(H)
  • LCD Size : 19" TFT LCD
  • LCD Color : 16.7M colors
  • Touch Screen : 5-wire resistive touch panel
  • Display Resolution : 1280 x 1024
  • LCD Brightness : 350 cd/cm2
  • Viewing Angle : 170(H)/160(V)
  • Backlight MTBF : 50,000 Hrs
  • Operating Temperature : 0°C~ 45°C (32°F~113°F)
  • Storage Temperature : -20°C~80°C (-4°F~176°F)
  • Relative Humidity : 5 ~ 90% @ 45°C, non-condensing
  • Protection Class : IP65 (Front panel with wall mount)
