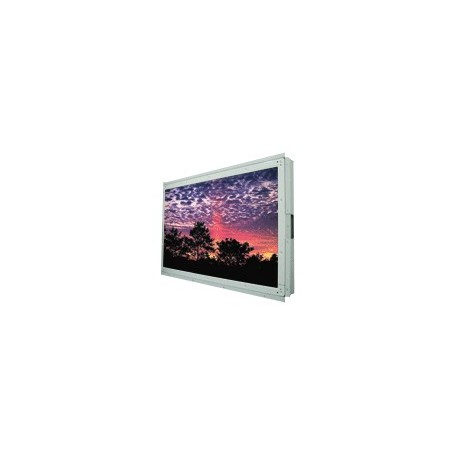

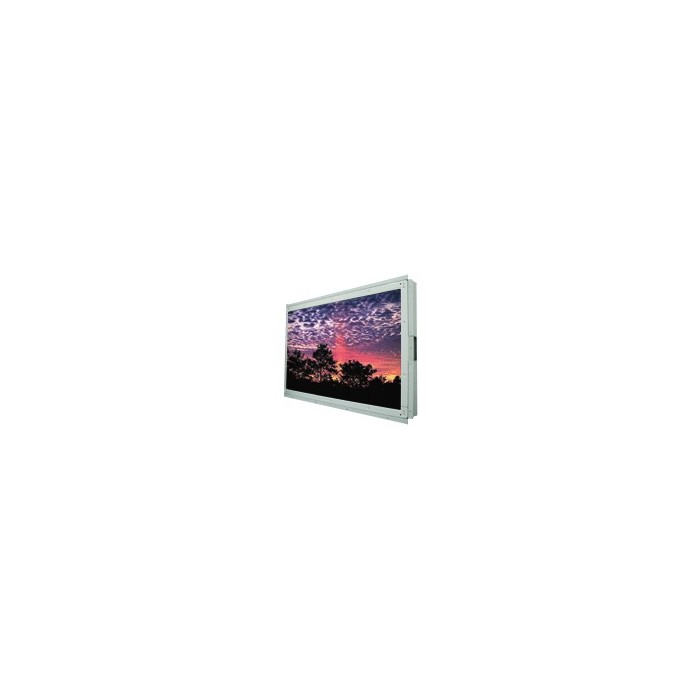

Open Frame LCD 47" : W47L100-OFL1/W47L110-OFL1 Agrandir l'image

Open Frame LCD 47" : W47L100-OFL1/W47L110-OFL1

Documentation détaillée
Description

Screen Size : 47"(16:9)
Display Resolution (pixel) : 1920x1080
Contrast Ratio : 1000:1 (typ.)
Brightness (CD/m^2) : 500 (typ.)


Specification
Active Display Area (mm) : 1039.68(H) x 584.82 (V)
Pixel Pitch (mm) : 0.5415(H)x0.5415(V)
Display Resolution (pixel) : 1920x1080
Contrast Ratio : 1000:1 (typ.)
Display Color : 16.7M (8bits/color)
Brightness (CD/m^2) : 500 (typ.)
Viewing Angles (CR >=10) : -89~89(H);-89~89(V)
Synchronization Range_Horizontal / Vertical : 31.5~80.0KHz / 60~75Hz
Recommended Resolution : 1920x1080 @60Hz
Signal Connector : 15 pin D-sub
Power Source : AC 100~240 V,Universal,±10%
Power Consumption : 265 W typical, normal operation
Power Management : VESA DPMS Compliant
Plug & Play : VESA DDC 1/2B
Video Input (optional) : S-Video,Composite
DVI Input (optional) : Yes
Support Video Signal Type : NTAC/PAL
Optional Touch Screen : No

Remark:W47L100 = VGA input only
W47L110 = VGA + Video input

*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
*Build in power is default
