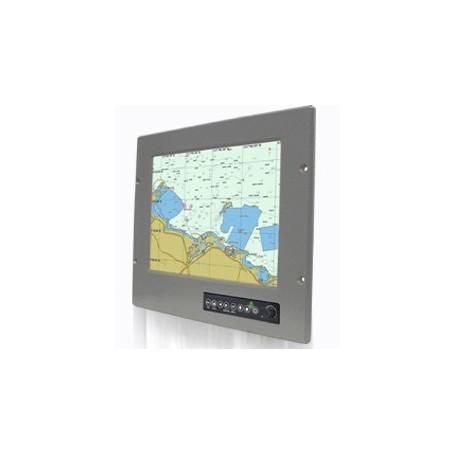

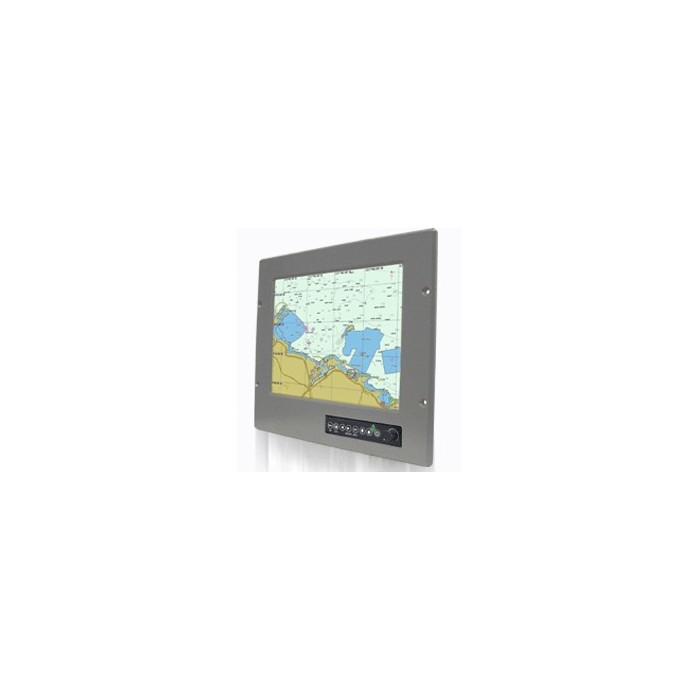

Marine Bridge System Display 12.1" : R12L100-MRM6HB(High Brightness) Agrandir l'image

Marine Bridge System Display 12.1" : R12L100-MRM6HB(High Brightness)

Documentation détaillée
Description
Pixel Number : 800 x 600
Pixel Pitch (RGB) : 0.3075 (H) x 0.3075 (V) mm
Touch Screen Options : SAW, 5 Wire Resistive
Contrast Ratio : 500 : 1(typ.)
Viewing Angles : -60~60 (H); -75~45 (V)
Max Colors : 16.7M (8bits/color)

Features
• Dimming knob control backlight brightness from nearly 0% to 100%
• High brightness TFT-LCD panel enhance the best visibility
• Panel (flush) mount IP65 aluminum housing with powder coating design (IP54 rear)
• 8 to 36V DC to DC power input acceptable(AC power for option)
• High quality touchscreen / AR protection glass for option
• PIP(picture in picture) function and multi-video inputs
• Ease of use front panel OSD control
• Enhanced shock and vibration resistance
