15.6" WXGA Infotainment Touch Display With Industrial Cloud Technology : ACD-515C Agrandir l'image

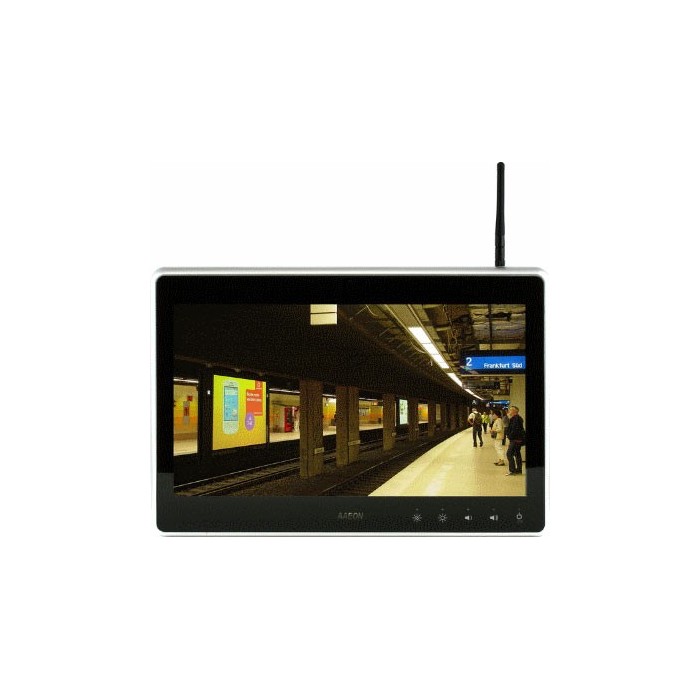

15.6" WXGA Infotainment Touch Display With Industrial Cloud Technology : ACD-515C

Description
Main Feature
  • 15.6" WXGA (1366 x 768) Fanless TFT LCD Display
  • Supports Industrial Cloud technology
  • Easy-To-Clean: Multi-Touch Window Design (Two-Point)
  • IPX1 100% Water-Proof
  • Anti-Scratch Surface (7H Hardness)

Specifications

System :

  • Input Signal : VGA or HDMI
  • On Screen Display Control : Brightness, Contrast, Phase, Sharpness, AutoTune, H/V-position
  • I/O connector : RJ-45 x 1, Line-out x 1, USB x 2
  • OS support : Windows XP (T/S: Single point), Linux Fedora (T/S: Single point), Windows 7 (T/S: Multi-point)

Mechanical :

  • Construction : IP-65/ NEMA4 for plastic front bezel, IPx1 for plastic chassis
  • Mounting : VESA 75/100
  • Dimension : 15.51" x 10.71" x 2.44" (394mm x 272mm x 62mm)

Environmental :

  • Operating Temperature : 32°F ~ 104°F (0°C ~ 40°C)
  • Storage Temperature : -4°F ~ 140°F (-20°C ~ 60°C)
  • Storage Humidity : 10%~95% @ 40°C; non-condensing
  • Vibration : 1 g rms/ 5~500Hz/ Random operation
  • Shock : 15 G peak acceleration (11 msec. Duration)
  • EMC : CE/FCC Class B

Power Supply :

  • DC input : DC 12V, with AC power adapter with lock

LCD :

  • Display Type : 15.6" TFT-LCD, CCFL
  • Max Resolution : 1366 x 768
  • Max. Colors : 16.7M colors (6/8-bit for R,G,B)
  • Luminance : 300 cd/m2
  • Viewing Angle : 170°(H)/160°(V)
  • Back Light : CCFL
  • Back Light MTBF (hours) : 50,000

Touchscreen :

  • Type : Projected Capacitive Multi-Touch (WindowsR 7)
  • Light Transmission : 90%

Note : Users have to select the ACG-201 to work with the ACD-518C.
