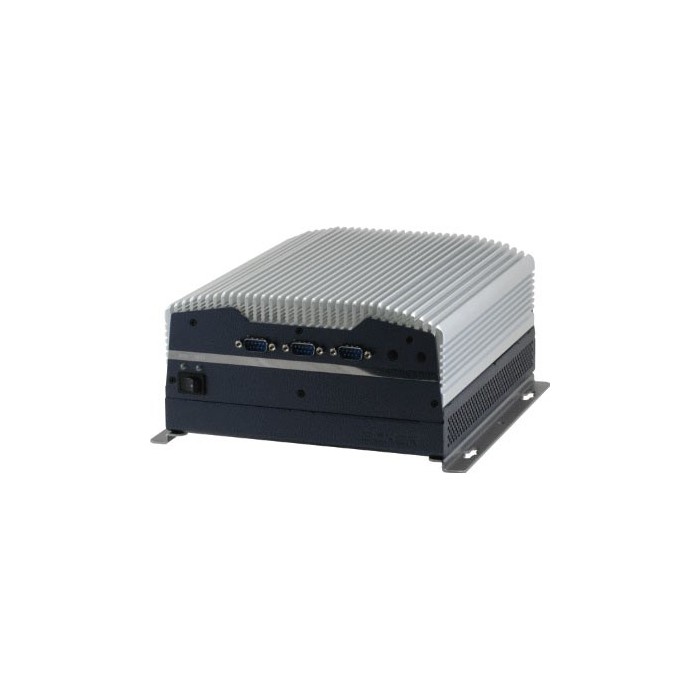

AEC-6876 : Fanless Embedded Controller With Intel Core i5 Celeron Processor And PCI-Express Expansion Agrandir l'image

AEC-6876 : Fanless Embedded Controller With Intel Core i5 Celeron Processor And PCI-Express Expansion

Documentation détaillée
Description

Main Feature :

  • Intel Core i5-2510E/ Celeron-B810 Processor
  • Intel QM67 Chipset
  • Gigabit Ethernet x 2
  • Intel Integrated Graphics Engine Supports Dual View by VGA, DVI, HDMI, LVDS
  • COM x 4
  • PCI-Express [x4] x 1

Application :

  • Machine Control
  • Data Processing
  • Fleet Management
  • Data Management



Specifications :

  • CPU : Intel Core-i5-2510E 2.5 GHz/Celeron-B810 1.6GHz
  • Chipset : Intel QM67
  • System Memory : DDR3 1066/1333, Max. 16GB
  • Display Interface :
    - VGA : DB-15 x 1 (optional 2nd VGA)
    - DVI : DVI-D x 1 (optional 2nd DVI), support 1920 x 1200 @ 60 Hz
    - HDMI : HDMI x 1, support 1920 x 1200 @ 60 Hz
  • Storage Device :
    - SSD : CFast slot
    - HDD : SATA 6.0Gb/s x 1 (SATA 0, 2)
  • Network :
    - Gigabit Ethernet, RJ-45 x 2
    - Wireless: Optional by mini-card
  • Front I/O :
    - RS-232 x 3
    - Power button x 1
  • Rear I/O :
    - USB2.0 x 4
    - RJ-45 x 2
    - RS-232/422/485 x 1
    - Mic-in, Line-in, Line-out
    - KB/MS PS/2 KB x 1 + MS x 1
    - Power input x 1
  • Expansion :
    - PCIe [x4] x 1
    - Mini Card x 1
  • Indicator : Front : Power LED x 1, Hard Disk Drive active LED x 1
  • Power Requirement : DC-in 12V, with DC jack lockable, DC 9 ~ 30V with 3-pin terminal block
  • System Cooling : Passive Cooling
  • Mounting : Wallmount
  • Operating Temperature :
    - No Airflow
    - 32°F ~ 122°F (0°C ~ 50°C) Wide Temperature CFast with WT RAM x 2
    - Ambient with Airflow
    - 5°F ~ 131°F (-15°C ~ 55°C) Wide Temperature CFast with WT RAM x 2
  • Storage Temperature : -4°F ~ 158°F (-20°C ~ 70°C)
  • Anti-Vibration :
    - 5 g rms/ 5 ~ 500Hz/ operation – CFast
    - 1 g rms/ 5~ 500Hz/ operation – HDD
  • Anti-Shock :
    - 50 G peak acceleration (11 msec. duration) – CFast
    - 20 G peak acceleration (11 msec. duration) – HDD
  • Certification : CE/FCC class A
  • Dimension (W x H x D) : 8.19"(W) x 4.02"(H) x 9.37"(D) (208mmx 102mm x 238mm)
  • Gross Weight : 13.2 lb (6 Kg)
  • OS Support : Windows XP Embedded, Windows XP, Windows 7, Linux Fedora 10
