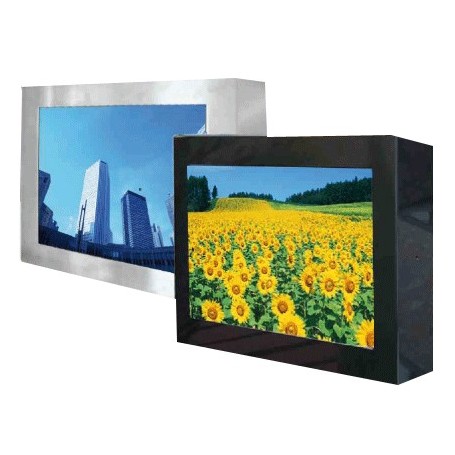

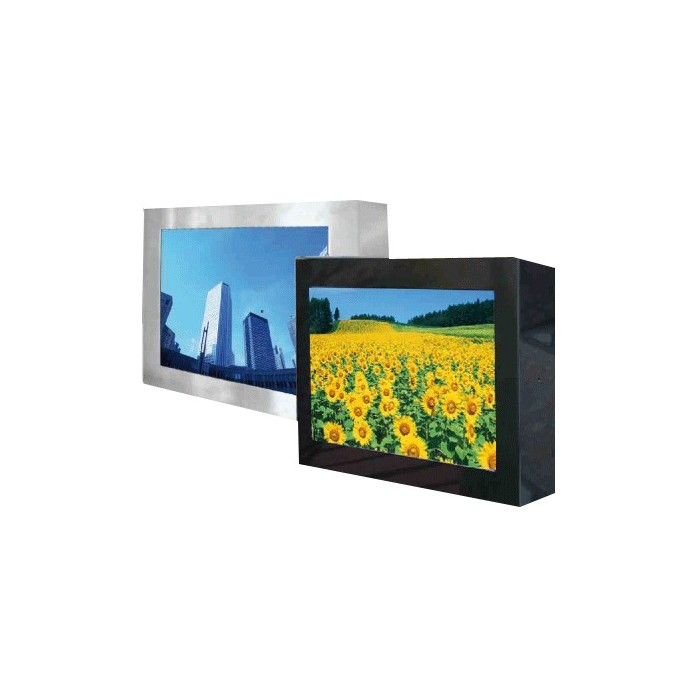

Full IP65 / NEMA 4 chassis 20.1” : R20L100-65A2/R20L110-65A2 Agrandir l'image

Full IP65 / NEMA 4 chassis 20.1” : R20L100-65A2/R20L110-65A2

Documentation détaillée
Description
Screen Size : 20.1"
Display Resolution (pixel) : 1600x1200
Contrast Ratio : 1000:1 (typ.)
Brightness (CD/m^2) : 300 (typ.)

Specification
Model Name : R20L100-65A2/R20L110-65A2
Screen Size : 20.1"
Active Display Area (mm) : 408.0 (H) x 306.0 (V)
Pixel Pitch (mm) : 0.255(H) x 0.255(V)
Display Resolution (pixel) : 1600x1200
Contrast Ratio : 1000:1 (typ.)
Display Color : 16.7M (8bits/color)
Brightness (CD/m^2) : 300 (typ.)
Viewing Angles (CR >=10) : -89~89 (H); -89~89 (V)
Synchronization Range_Horizontal / Vertical : 31.5~80.0KHz / 60~75Hz
Recommended Resolution : 1600x1200 @60Hz
Signal Connector : 15 pin D-sub
I/O : 3 pin Power cable(IP65 connector); 10 pin VGA cable (IP65 connector); Optional 10 pin RS232 or USB cable(IP65 connector);
Power Source : DC12V in
Power Consumption : 41 W typical, normal operation
Power Management : VESA DPMS Compliant
Plug & Play : VESA DDC 1/2B
Video Input (optional) : yes
Optional Touch Screen : Resistive

*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
