IP65 Stainless Chassis w24" : ISCH2405-FHD Agrandir l'image

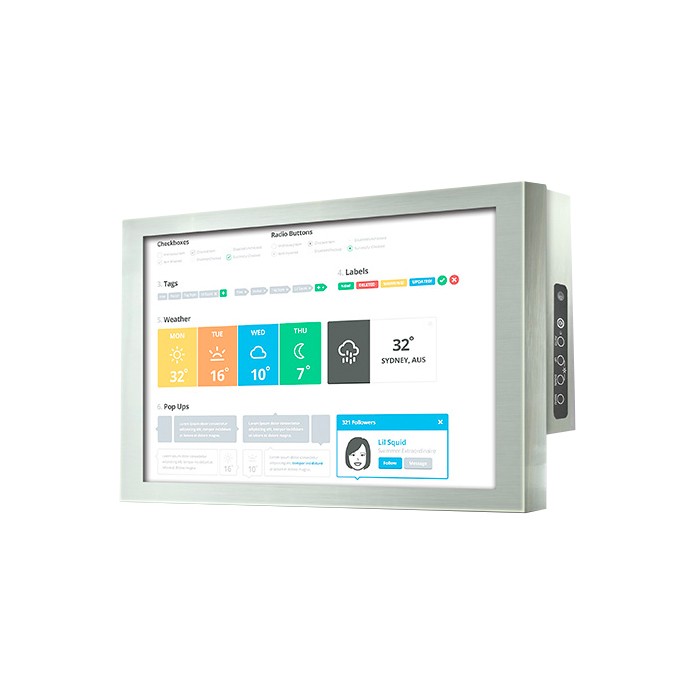

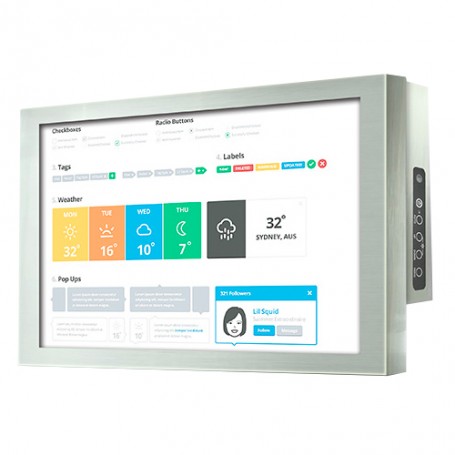

IP65 Stainless Chassis w24" : ISCH2405-FHD | WINSONIC

IP65 front side sealed for water-dust proof Modularize mechanical design provides flexible product configuration and easy maintenance Optional build-in touch screen for interactive application VGA connector with optional AV,SV,AV-Looping Complete custom design/solution for OEM customers Available...

Plus de détails

Téléchargement

Description

  • IP65 front side sealed for water-dust proof
  • Modularize mechanical design provides flexible product configuration and easy maintenance
  • Optional build-in touch screen for interactive application
  • VGA connector with optional AV,SV,AV-Looping
  • Complete custom design/solution for OEM customers
  • Available with auto-brightness sensor offers application in day and night



INDEXLEDExtended Feature
Normal BrightnessHigh BrightnessWT , WVWT/WV + High Brightness
Model No.ISCH2405-WH25L0ISCH2405-WHA0L0ISCH2405-WH25L3ISCH2405-WHA0L3
Max. Resolution1920 x 10801920 x 10801920 x 10801920 x 1080
Brightness / Contrast250 cd/m²   1000:11000 cd/m²   1000:1250 cd/m²   3000:11000 cd/m²   3000:1
Response Time≤ 5ms≤ 5ms≤ 15ms≤ 15ms
Viewing Angle (H. / V.)170 / 160170 / 160178 / 178178 / 178

Fiche technique (peut contenir des options)

Dalles TactilesCapacitif, Infra Rouge , Résistif, SAW
Diagonales de l'écran24''
Entrées vidéoHDMI, DVI, VGA
Luminosités250 cd/m2
Résolutions1 920 x 1 080
