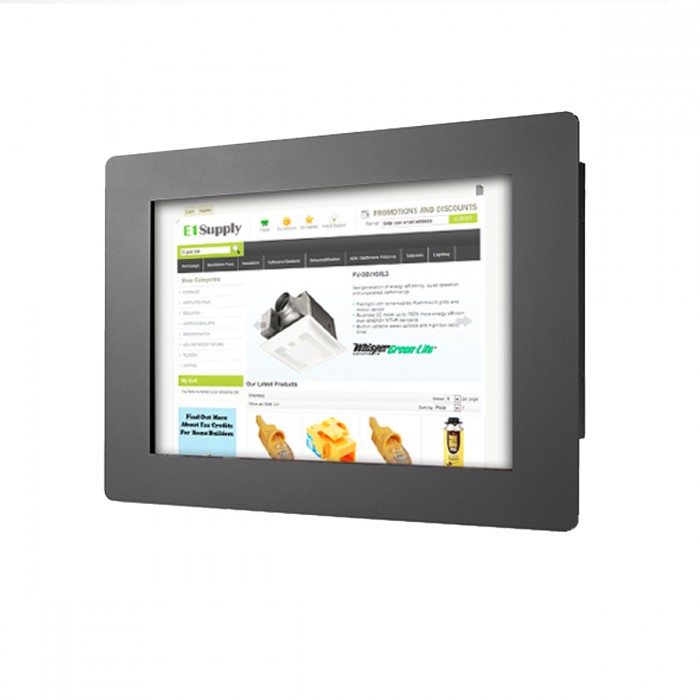

Panel Mount w17" : PM1735-FHD Agrandir l'image

Panel Mount w17,3" : PM1735-FHD | WINSONIC

Modularize mechanical design provides flexible product configuration and easy maintenance Optional build-in touch screen for interactive application Available with auto-brightness sensor offers application in day and night VGA connector with optional AV,SV,AV-Looping Complete custom...

Plus de détails

Téléchargement

Description

  • Modularize mechanical design provides flexible product configuration and easy maintenance
  • Optional build-in touch screen for interactive application
  • Available with auto-brightness sensor offers application in day and night
  • VGA connector with optional AV,SV,AV-Looping
  • Complete custom design/solution for OEM customers



INDEX LED Extended Feature
Normal Brightness High Brightness WT , WV WT/WV + High Brightness
Model No. PM1735-WH30L0 N.A. PM1735-WH30L2 N.A.
Max. Resolution 1920 x 1080 1920 x 1080
Brightness / Contrast 300 cd/m²   400:1   300 cd/m²   600:1
Response Time ≤ 8ms ≤ 35ms
Viewing Angle (H. / V.) 90 / 50 178 / 178

Fiche technique

Dalles Tactiles Capacitif, Infra Rouge , Résistif, SAW
Diagonales de l'écran 17 à 19''
Entrées vidéo VGA
Luminosités 300 cd/m2
Résolutions 1 920 x 1 080
OSD Arrière
