Description

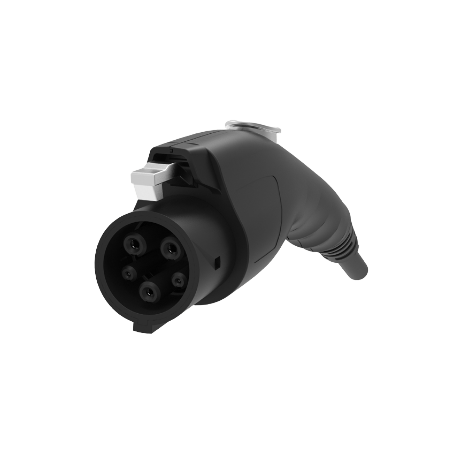

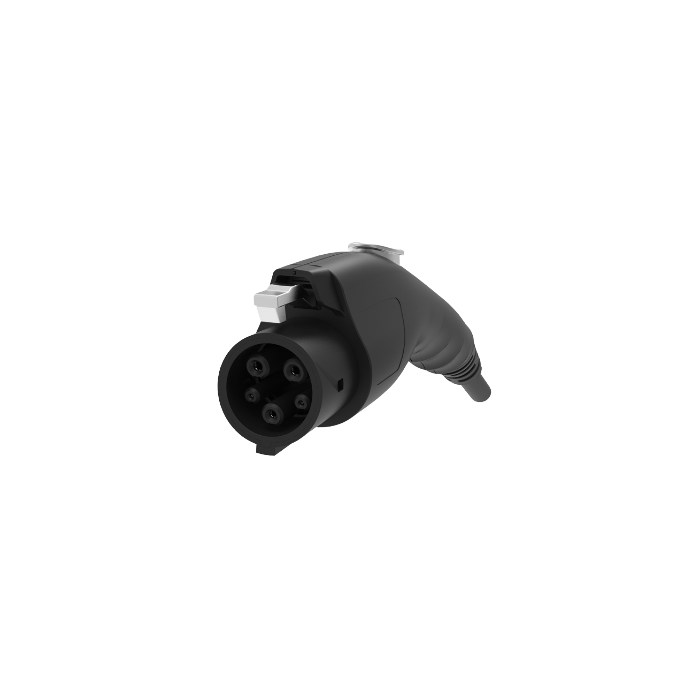

Câble de charge AC, avec prise de charge pour véhicule et prise libre, Type 1, SAE J1772:2017, 50A/240V (DC), logo DEGSON, câble : 5M, Noir.
Avantages :
- Toutes les prises AC pour véhicules et les prises AC d'alimentation de Degson adoptent un design unifié
- La surface des contacts d'alimentation et de signal est métallisée
- Certifiées selon le système IATF 16949:2016
- Poignée ergonomique avec assemblage supplémentaire en caoutchouc pour une manipulation facile
Spécifications :
| Environmental conditions |
|
Ambient temperature (operation)
|
-30 °C ~ 50 °C |
| Ambient temperature (storage / transport) |
-40 °C ~ 80 °C |
| IP class |
Type 3S |
| Maximum altitude |
5000 m (Above sea level) |
| Electrical characteristics |
| Maximum charge power |
12 KW |
| Phase |
1 |
| Power pin quantity |
3 |
| Rated current of high-power contacts |
40 |
| Power contact rated voltage |
240 |
| Quantity of signal contacts |
2 |
| Signal contact rated current |
2 |
| Signal contact rated voltage |
30 |
| Resistance coding |
480 Ω |
| Signal transmission type |
Pulse width adjustment |
| Mechanical properties |
| Insertion/pullout cycle |
10 000 |
| Insertion force |
< 75 N |
| Pull out force |
< 75 N |
| Marking material |
| Shell color |
black |
| EV charger color |
black |
| Actuation component color |
Silver |
| Cover color |
black |
| Customization basis |
Provided according to customer requirements |
| Shell material |
Plastic |
| Actuating handle material |
Metal |
| Protective cover material |
Soft plastic |
| Flammability rating |
V0 |
| Contact surface material |
Ag |
| Environmental Product Compliance |
| China RoHS |
conform |
| Cable |
| Cable composition |
3*8AWG+1*18AWG |
| Wiring standard |
UL62 |
| Wiring level |
5 class |
| Certification |
UL |
| Cable outer diameter |
21.7±0.8 mm |
| Wire type |
Straight line |
| Cable resistance |
≤ 0.00558 Ω/m (Based on the power core, at an ambient temperature of 20°C) |
| Outer sheath,color |
black |
| Minimum bend radius |
130.2 mm |
| Outer sheath, material |
PUR |
| Dimension |
| Vehicle connector height |
101 mm (Vehicle charging connector) |
| Vehicle connector width |
54.5 mm (Vehicle charging connector) |
| Vehicle connector depth |
249.2 mm (Vehicle charging connector) |
| Cable length |
5000±100 mm |
| Strip length |
100±10 mm |
