Description

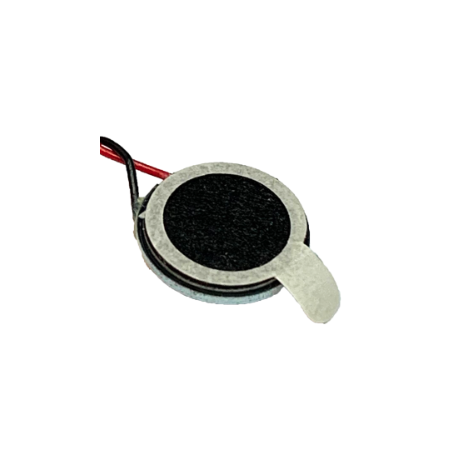

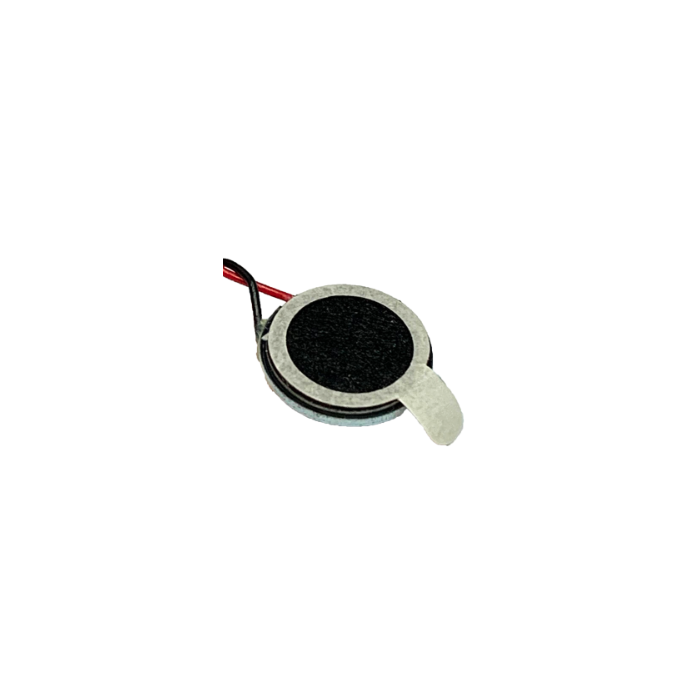

Haut-parleur Dynamique – Série Professionnelle
La série de haut-parleurs dynamiques proposée offre une gamme complète de solutions audio compactes et puissantes, conçues pour répondre aux exigences de performances élevées dans des dispositifs électroniques modernes. Disponibles en plusieurs tailles, ces haut-parleurs garantissent une restitution sonore de qualité, une large plage de fréquences, et une intégration facilitée dans divers produits.
Avantages
- Large éventail de dimensions (10 mm à 52 mm) pour s’adapter à tous les besoins d’intégration.
- Excellente sensibilité jusqu’à 104 dB pour une restitution sonore claire même à faible puissance.
- Faible distorsion harmonique, assurant une fidélité audio optimale.
- Durabilité éprouvée grâce à une conception robuste et des matériaux de qualité.
- Idéal pour les environnements compacts ou portables grâce à un design fin et léger.
Caractéristiques principales
-
Type : Haut-parleur dynamique
-
Puissance d’entrée nominale : De 0,3 W à 5 W selon les modèles
-
Puissance d’entrée maximale : Jusqu’à 7 W pendant 1 minute
-
Impédance : De 8 Ω à 32 Ω (±15 %)
-
Sensibilité : Jusqu’à 104 dB ±3 dB
-
Plage de fréquence : De la fréquence de résonance jusqu’à 20 kHz
-
Fréquence de résonance : De 150 Hz à 1400 Hz ±20 %
-
Distorsion harmonique totale : Max 5 à 10 % à 1 kHz
-
Dimensions disponibles : 10 mm, 13 mm, 15 mm, 18 mm, 20 mm, 40 x 28 mm, 41 x 41 mm, 52 mm
Applications
- Équipements portables (baladeurs, enceintes Bluetooth, systèmes de navigation)
- Appareils médicaux et dispositifs de communication
- Jouets électroniques et gadgets connectés
- Produits grand public nécessitant une restitution sonore claire dans un espace réduit
- Applications industrielles ou professionnelles nécessitant un signal sonore fiable
|
Browse Speakers
|
Part
|
Mounting
|
Box
|
Shape
|
L (mm)
|
W (mm)
|
H (mm)
|
Rated Input (W)
|
Impedance (ohm)
|
Freq (Hz)
|
SPL (dBA)
|
|---|
| AK-100803-MM-1CV |
Wire |
X |
Circle |
10 |
10 |
3.1 |
0.3 |
8 |
1350 |
82 |
| AK-100803-MM-2 |
Wire |
X |
Circle |
10 |
10 |
3.1 |
0.3 |
8 |
1400 |
80 |
| AK-1008RA-24W3 |
Wire |
X |
Circle |
10 |
10 |
3.4 |
0.3 |
8 |
1000 |
84 |
| AK-10210208HC-1 |
Wire |
X |
Rectangle |
102 |
102 |
22 |
10 |
8 |
180 |
86 |
| AK-1275808WC-1 |
Wire |
X |
Oval |
127 |
58 |
48 |
10 |
8 |
150 |
92 |
| AK-130805-MM-1C |
Wire |
X |
Circle |
13 |
13 |
4.1 |
0.5 |
8 |
1300 |
87 |
| AK-130805-MM-2CV |
Wire |
X |
Circle |
13 |
13 |
3.5 |
0.5 |
8 |
1060 |
90 |
| AK-1308DA-10W |
Wire |
X |
Circle |
13 |
13 |
3.5 |
0.5 |
8 |
1060 |
90 |
| AK-133203-PM-1 |
Solder Point |
X |
Circle |
13 |
13 |
3.4 |
0.3 |
32 |
1050 |
89 |
| AK-150805-PM-2WV |
Wire |
X |
Circle |
15 |
15 |
5.7 |
0.5 |
8 |
1350 |
96 |
| AK-150805-PM-6 |
Solder Point |
X |
Circle |
15 |
15 |
3.5 |
0.5 |
8 |
1000 |
91 |
| AK-150810-PM-3C2 |
Wire |
X |
Circle |
15 |
15 |
4.8 |
1 |
8 |
1200 |
95 |
| AK-1508A-1 |
Solder Point |
X |
Circle |
15 |
15 |
2.9 |
0.5 |
8 |
1050 |
90 |
| AK-1508EA-10C3 |
Wire |
X |
Circle |
15 |
15 |
4.8 |
1 |
8 |
1200 |
95 |
| AK-1508EA-10C7 |
Wire |
X |
Circle |
15 |
15 |
4.8 |
1 |
8 |
1200 |
95 |
| AK-1508EA-10W |
Wire |
X |
Circle |
15 |
15 |
4.8 |
1 |
8 |
1200 |
95 |
| AK-1508EA-15C3 |
Wire |
X |
Circle |
15 |
15 |
5.7 |
0.5 |
8 |
1000 |
93 |
| AK-1608A-1 |
Solder Point |
X |
Circle |
16 |
16 |
3.8 |
0.5 |
8 |
900 |
89 |
| AK-170810-PM-1W |
Wire |
X |
Circle |
17 |
17 |
4 |
1 |
8 |
900 |
95 |
| AK-180805-PM-2C |
Connector & Wire |
X |
Circle |
18 |
18 |
5.7 |
0.5 |
8 |
950 |
92 |
| AK-180805-PM-2C3 |
Connector & Wire |
X |
Circle |
18 |
18 |
6.4 |
0.5 |
8 |
950 |
92 |
| AK-180805-PM-2W |
Wire |
X |
Circle |
18 |
18 |
5.7 |
0.5 |
8 |
950 |
92 |
| AK-180805-PM-3CV |
Connector & Wire |
X |
Circle |
18 |
18 |
3.8 |
0.5 |
8 |
900 |
90 |
| AK-180810-PM-1CV |
Connector & Wire |
X |
Circle |
18 |
18 |
4.2 |
1 |
8 |
1000 |
92 |
| AK-180810-PM-1CV1 |
Connector & Wire |
X |
Circle |
18 |
18 |
4.2 |
1 |
8 |
1000 |
92 |
| AK-180810-PM-1V |
Solder Point |
X |
Circle |
18 |
18 |
4 |
1 |
8 |
1000 |
92 |
| AK-180810-PM-2CV1-IP67 |
Connector & Wire |
X |
Circle |
18 |
18 |
4.6 |
1 |
8 |
950 |
90 |
| AK-181308A-3C |
Connector & Wire |
X |
Oval |
18 |
13 |
4 |
0.8 |
8 |
1050 |
88 |
| AK-200405-MM-2W |
Connector & Wire |
X |
Circle |
20 |
20 |
5.8 |
0.5 |
4 |
1000 |
94 |
| AK-200810-MM-1C |
Connector & Wire |
X |
Circle |
20 |
20 |
3.7 |
1 |
8 |
1150 |
94 |
| AK-200810-MM-1CV1 |
Connector & Wire |
X |
Circle |
20 |
20 |
3.7 |
1 |
8 |
1150 |
94 |
| AK-200810-MM-1CV3 |
Connector & Wire |
X |
Circle |
20 |
20 |
7.1 |
1 |
8 |
1150 |
94 |
| AK-200810-MM-1CV4 |
Connector & Wire |
X |
Circle |
20 |
20 |
7.1 |
1 |
8 |
1150 |
94 |
| AK-200810-MM-1CV5 |
Connector & Wire |
X |
Circle |
20 |
20 |
10 |
1 |
8 |
1150 |
94 |
| AK-200810-MM-2 |
Solder Point |
X |
Circle |
20 |
20 |
3.7 |
1 |
8 |
1100 |
99 |
| AK-200815-PMU-1C |
Connector & Wire |
X |
Circle |
20 |
20 |
4.8 |
1.5 |
8 |
850 |
95 |
| AK-2008AA-11P |
Solder Point |
X |
Circle |
20 |
20 |
4.2 |
1 |
8 |
1400 |
94 |
| AK-2008AB-2C1 |
Connector & Wire |
X |
Circle |
20 |
20 |
6 |
1.5 |
8 |
850 |
95 |
| AK-2008AB-2C7 |
Connector & Wire |
X |
Circle |
20 |
20 |
6 |
1.5 |
8 |
850 |
95 |
| AK-2008EB-33C2 |
Solder Point |
X |
Circle |
20 |
20 |
4 |
0.5 |
8 |
750 |
94 |
| AK-2008EB-43C |
Connector & Wire |
X |
Circle |
20 |
20 |
3.7 |
1.5 |
8 |
1100 |
97 |
| AK-2008EB-43C4 |
Connector & Wire |
X |
Circle |
20 |
20 |
3.7 |
1.5 |
8 |
1100 |
97 |
| AKB-20130808-PM-1C |
Connector & Wire |
X |
Oval |
20 |
21 |
4.87 |
0.8 |
8 |
1300 |
95 |
| AK-230810-MM-1 |
Solder Point |
X |
Circle |
23 |
23 |
5 |
1 |
8 |
700 |
95 |
| AK-230810-MM-1C3 |
Connector & Wire |
X |
Circle |
23 |
23 |
5 |
1 |
8 |
700 |
95 |
| AK-230810-MM-2C |
Connector & Wire |
X |
Circle |
23 |
23 |
5 |
1 |
8 |
750 |
96 |
| AK-230810-MM-4C |
Connector & Wire |
X |
Circle |
23 |
23 |
3.6 |
1 |
8 |
700 |
97 |
| AK-2308EB-7C1 |
Connector & Wire |
X |
Circle |
23 |
23 |
4 |
1 |
8 |
820 |
97 |
| AK-2308EB-8C |
Connector & Wire |
X |
Circle |
23 |
23 |
5 |
1 |
8 |
820 |
97 |
| AK-2308EB-8C3 |
Connector & Wire |
X |
Circle |
23 |
23 |
5 |
1 |
8 |
820 |
97 |
| AK-2608AB-4C1 |
Connector & Wire |
X |
Circle |
26 |
26 |
4.5 |
0.5 |
8 |
660 |
97 |
| AK-280420-MM-1C1 |
Connector & Wire |
X |
Circle |
28 |
28 |
4.4 |
2 |
4 |
500 |
95 |
| AK-2804BB-1C |
Connector & Wire |
X |
Circle |
28 |
28 |
4.4 |
2 |
4 |
500 |
95 |
| AK-280805-MM-1C |
Connector & Wire |
X |
Circle |
28 |
28 |
5 |
0.5 |
8 |
600 |
94 |
| AK-280805-MM-1C1 |
Connector & Wire |
X |
Circle |
28 |
28 |
5 |
0.5 |
8 |
600 |
94 |
| AK-280805-MM-1C2 |
Connector & Wire |
X |
Circle |
28 |
28 |
5 |
0.5 |
8 |
600 |
94 |
| AK-280820-MM-1C1 |
Connector & Wire |
X |
Circle |
28 |
28 |
4.6 |
2 |
8 |
650 |
97 |
| AK-280820-MM-3C1 |
Connector & Wire |
X |
Circle |
28 |
28 |
5.2 |
2 |
8 |
800 |
92 |
| AK-280820-MM-5C1 |
Connector & Wire |
X |
Circle |
28 |
28 |
5.3 |
2 |
8 |
650 |
96 |
| AK-2808AA-2-LF |
Solder Point |
X |
Circle |
28 |
28 |
5 |
0.5 |
8 |
500 |
94 |
| AK-2808AB-31 |
Solder Point |
X |
Circle |
28 |
28 |
3.9 |
0.3 |
8 |
630 |
92 |
| AK-2808AB-32 |
Solder Point |
X |
Circle |
28 |
28 |
4.7 |
2 |
8 |
650 |
97 |
| AK-2808AB-32C |
Connector & Wire |
X |
Circle |
28 |
28 |
4.6 |
2 |
8 |
650 |
97 |
| AK-2808AB-32C1 |
Connector & Wire |
X |
Circle |
28 |
28 |
4.6 |
2 |
8 |
650 |
97 |
| AKB-282808B-1W |
Wire |
V |
Rectangle |
28 |
28 |
13.4 |
3 |
8 |
800 |
99 |
| AKB-282808B-1W1 |
Connector & Wire |
V |
Rectangle |
28 |
28 |
13.4 |
3 |
8 |
800 |
99 |
| AK-300810-MM-4C2 |
Connector & Wire |
X |
Circle |
30 |
30 |
5.1 |
1 |
8 |
600 |
96 |
| AK-3008AB-4C16 |
Connector & Wire |
X |
Circle |
30 |
30 |
4.9 |
1 |
8 |
610 |
99 |
| AK-3008AB-4-LF |
Solder Point |
X |
Circle |
30 |
30 |
5.1 |
1 |
8 |
610 |
99 |
| AK-3008B-2 |
Solder Point |
X |
Circle |
30 |
30 |
5.1 |
1 |
8 |
600 |
96 |
| AK-303203-PP-1W |
Wire |
X |
Circle |
30 |
30 |
5.5 |
0.3 |
32 |
250 |
86 |
| AK-3208BB-2C |
Connector & Wire |
X |
Circle |
32 |
32 |
4.7 |
2 |
8 |
550 |
100 |
| AK-3208BB-4 |
Solder Point |
X |
Circle |
32 |
32 |
4.7 |
2 |
8 |
550 |
100 |
| AK-351608EC-8C |
Connector & Wire |
X |
Oval |
35 |
16 |
5.8 |
1 |
8 |
720 |
95 |
| AK-352008CB-0 |
Solder Point |
X |
Rectangle |
35 |
20 |
7.6 |
1 |
8 |
750 |
97 |
| AKR-35200420-PPC-1 |
Solder Point |
X |
Rectangle |
35 |
20 |
7.6 |
2 |
4 |
800 |
97 |
| AK-360810-MM-3C |
Connector & Wire |
X |
Circle |
36 |
36 |
4.6 |
1 |
8 |
600 |
98 |
| AK-360810-MM-3C1 |
Connector & Wire |
X |
Circle |
36 |
36 |
4.6 |
1 |
8 |
600 |
98 |
| AK-3608BB-17C5 |
Connector & Wire |
X |
Circle |
36 |
36 |
4.6 |
1 |
8 |
550 |
102 |
| AK-3608BB-17-LF-1 |
Solder Point |
X |
Circle |
36 |
36 |
4.6 |
1 |
8 |
550 |
102 |
| AK-3608BB-34 |
Solder Point |
X |
Circle |
36 |
36 |
4.9 |
0.5 |
8 |
550 |
98 |
| AK-3608BB-6C1 |
Connector & Wire |
X |
Circle |
36 |
36 |
4.8 |
1 |
8 |
530 |
101 |
| AK-3608BB-6-LF |
Solder Point |
X |
Circle |
36 |
36 |
4.8 |
1 |
8 |
530 |
104 |
| AK-36100025-PM-2 |
Solder Point |
X |
Circle |
36 |
36 |
4.3 |
0.25 |
100 |
650 |
92 |
| AK-400410-MM-2C |
Connector & Wire |
X |
Circle |
40 |
40 |
5 |
1 |
4 |
600 |
98 |
| AK-4004BB-2-LF |
Solder Point |
X |
Circle |
40 |
40 |
5.1 |
1 |
4 |
600 |
100 |
| AK-4004BF-2 |
Solder Point |
X |
Circle |
40 |
40 |
20.5 |
3 |
4 |
250 |
101 |
| AK-400810-MM-1 |
Solder Point |
X |
Circle |
40 |
40 |
5 |
1 |
8 |
650 |
99 |
| AK-4008B-2 |
Solder Point |
X |
Circle |
40 |
40 |
5 |
1 |
8 |
560 |
96 |
| AK-4008BB-6-LF |
Solder Point |
X |
Circle |
40 |
40 |
5.1 |
1 |
8 |
600 |
102 |
| AK-4008BB-7 |
Solder Point |
X |
Circle |
40 |
40 |
5.1 |
0.5 |
8 |
600 |
98 |
| AK-4008JB-0 |
Solder Point |
X |
Circle |
40 |
40 |
19.5 |
2 |
8 |
235 |
96 |
| AK-4008JB-C |
Connector & Wire |
X |
Circle |
40 |
40 |
19.5 |
2 |
8 |
235 |
96 |
| AK-4016BB-7C |
Connector & Wire |
X |
Circle |
40 |
40 |
5.1 |
1 |
16 |
600 |
99 |
| AK-402008CC-12C |
Connector & Wire |
X |
Oval |
40 |
20 |
8 |
1.5 |
8 |
700 |
98 |
| AK-402008CC-14C |
Connector & Wire |
X |
Oval |
40 |
20 |
5.8 |
1 |
8 |
650 |
90 |
| AK-402008CC-17 |
Solder Point |
X |
Oval |
40 |
20 |
5.8 |
2 |
8 |
650 |
93 |
| AK-402008CC-6C7 |
Connector & Wire |
X |
Oval |
40 |
20 |
5.8 |
2 |
8 |
400 |
95 |
| AK-402808BC-3C13-LF |
Connector & Wire |
X |
Rectangle |
40 |
28.3 |
11.5 |
2 |
8 |
530 |
97 |
| AK-402808BC-3C19 |
Connector & Wire |
X |
Rectangle |
40 |
28.3 |
11.5 |
2 |
8 |
530 |
101 |
| AK-402808BC-3C24 |
Connector & Wire |
X |
Rectangle |
40 |
28.3 |
12 |
2 |
8 |
530 |
97 |
| AK-402808BC-3T-LF |
Solder Point |
X |
Oval |
40 |
28.3 |
12 |
2 |
8 |
530 |
97 |
| AK-402808BC-4C1 |
Connector & Wire |
X |
Rectangle |
40 |
28.3 |
13.5 |
2 |
8 |
500 |
97 |
| AK-402808BC-4C2 |
Connector & Wire |
X |
Rectangle |
40 |
28.3 |
13.5 |
2 |
8 |
500 |
97 |
| AK-402808BC-4-LF |
Solder Point |
X |
Rectangle |
40 |
28.3 |
13.5 |
2 |
8 |
500 |
97 |
| AK-410850-MM-1C |
Connector & Wire |
X |
Circle |
41 |
41 |
21.3 |
5 |
8 |
1160 |
109 |
| AK-414108JF-1C |
Connector & Wire |
X |
Rectangle |
41 |
41 |
24.4 |
5 |
8 |
260 |
93 |
| AK-4508BA-0-LF |
Solder Point |
X |
Circle |
45 |
45 |
10 |
0.2 |
8 |
630 |
97 |
| AK-500810-MP-2 |
Solder Point |
X |
Circle |
50 |
50 |
12 |
1 |
8 |
550 |
100 |
| AK-500850-MU-1C |
Solder Point |
X |
Circle |
50 |
50 |
19 |
5 |
8 |
250 |
97 |
| AK-5008B-2 |
Solder Point |
X |
Circle |
50 |
50 |
10.5 |
0.25 |
8 |
650 |
94 |
| AK-5008BA-5C |
Connector & Wire |
X |
Circle |
50 |
50 |
7.5 |
1 |
8 |
500 |
96 |
| AK-5008BB-15 |
Solder Point |
X |
Circle |
50 |
50 |
7.6 |
0.5 |
8 |
300 |
97 |
| AK-5008BB-23C |
Connector & Wire |
X |
Circle |
50 |
50 |
7.2 |
1 |
8 |
380 |
97 |
| AK-5008BC-14-LF |
Solder Point |
X |
Circle |
50 |
50 |
12 |
1 |
8 |
500 |
102 |
| AK-503205-MM-1 |
Solder Point |
X |
Circle |
50 |
50 |
11.5 |
0.5 |
32 |
550 |
96 |
| AK-5050025-PM-1W |
Connector & Wire |
X |
Circle |
50 |
50 |
7.8 |
0.25 |
50 |
400 |
97 |
| AK-505008YC-1 |
Solder Point |
X |
Rectangle |
50 |
50 |
16 |
2 |
8 |
550 |
94 |
| AK-520820-MPU-2C |
Connector & Wire |
X |
Circle |
52 |
52 |
28 |
2 |
8 |
150 |
100 |
| AK-520820-MPU-2C1 |
Connector & Wire |
X |
Circle |
52 |
52 |
28 |
2 |
8 |
150 |
100 |
| AKB-54200810-PMC-1C |
Connector & Wire |
V |
Rectangle |
54 |
20 |
10.3 |
1 |
8 |
900 |
93 |
| AK-542008CC-1C4 |
Connector & Wire |
V |
Rectangle |
54 |
20 |
10.2 |
1 |
8 |
900 |
93 |
| AK-5708YC-1C1 |
Connector & Wire |
X |
Circle |
57 |
57 |
16.5 |
0.5 |
8 |
500 |
94 |
| AK-582308CC-1C |
Connector & Wire |
V |
Rectangle |
57.5 |
23 |
14.85 |
1 |
8 |
800 |
93 |
| AK-582308CC-2C |
Connector & Wire |
V |
Rectangle |
57.4 |
23 |
14.7 |
1 |
8 |
800 |
93 |
| AK-603308BC-8C15 |
Connector & Wire |
V |
Rectangle |
60 |
33 |
15 |
2 |
8 |
750 |
95 |
| AK-603308BC-8C16 |
Connector & Wire |
V |
Rectangle |
60 |
33 |
18 |
2 |
8 |
750 |
95 |
| AK-603308BC-8C3 |
Connector & Wire |
V |
Rectangle |
60 |
33 |
18 |
2 |
8 |
750 |
95 |
| AK-770820-MP-1 |
Solder Point |
X |
Circle |
77 |
77 |
27.5 |
2 |
8 |
340 |
110 |
| AK-77770820-MP-1C |
Connector & Wire |
X |
Rectangle |
77 |
77 |
28.5 |
2 |
8 |
300 |
109 |
| AK-777708ZC-1 |
Solder Point |
X |
Rectangle |
77 |
77 |
28.5 |
2 |
8 |
300 |
109 |
| AK-787808GF-1 |
Solder Point |
X |
Rectangle |
78 |
78 |
47.5 |
5 |
8 |
180 |
96 |
| AK-787808ZF-1 |
Solder Point |
X |
Rectangle |
78 |
78 |
37.5 |
3 |
8 |
150 |
107 |
| AKB-803108C-2W |
Connector & Wire |
V |
Rectangle |
80 |
31.1 |
14.9 |
2.5 |
8 |
630 |
101 |
| AK-803108DC-1C8 |
Connector & Wire |
V |
Rectangle |
80 |
31.1 |
14.9 |
2.5 |
8 |
630 |
101 |
| AK-803108DC-2C |
Connector & Wire |
V |
Rectangle |
80 |
31.1 |
14.9 |
2.5 |
8 |
700 |
97 |
| AK-803108DC-2C2 |
Connector & Wire |
V |
Rectangle |
80 |
31.1 |
14.9 |
2.5 |
8 |
700 |
97 |
| AK-905008YC-3 |
Solder Point |
X |
Rectangle |
90 |
50 |
40 |
5 |
8 |
250 |
99 |
| AKB-2308D-P |
Solder Point |
V |
Circle |
22.6 |
22.6 |
8.5 |
0.1 |
8 |
1600 |
84 |
| AKB-30150810-PM-1C |
Connector & Wire |
V |
Rectangle |
30 |
15 |
7.5 |
1 |
8 |
900 |
90 |
| AKB-37140820-MMC-1C |
Connector & Wire |
V |
Rectangle |
36.6 |
14 |
10.4 |
2 |
8 |
1700 |
92 |
| AKB-37140820-MMC-1C1 |
Connector & Wire |
V |
Rectangle |
36.8 |
14.3 |
10 |
2 |
8 |
1700 |
92 |
| AKB-38170415-PPC-1C |
Connector & Wire |
V |
Rectangle |
38 |
17 |
12 |
1.5 |
4 |
1100 |
98 |
| AKB-40200810-PC-1C |
Connector & Wire |
V |
Rectangle |
40 |
20 |
8.6 |
1.5 |
8 |
1300 |
92 |
| AKB-64220420-PPC-1C |
Connector & Wire |
V |
Rectangle |
63.5 |
22.4 |
18 |
2 |
4 |
800 |
105 |
| AKB-64220820-PPC-1C |
Connector & Wire |
V |
Rectangle |
63.5 |
22.4 |
18 |
2 |
8 |
800 |
99 |
| AKB-80310825-PPC-1C |
Connector & Wire |
V |
Rectangle |
80 |
31.1 |
14.9 |
2.5 |
8 |
650 |
101 |
| AKB-80310825-PPC-1C1 |
Connector & Wire |
V |
Rectangle |
80 |
31.1 |
14.9 |
2.5 |
8 |
630 |
101 |
| AKB-80310825-PPC-3C1 |
Connector & Wire |
V |
Rectangle |
80 |
31.1 |
14.9 |
2.5 |
8 |
700 |
97 |
| AKB-803108C-1C |
Connector & Wire |
V |
Rectangle |
80 |
31.1 |
14.9 |
2.5 |
8 |
630 |
99 |
| AKB-961100810-PPU-1C |
Connector & Wire |
V |
Horn |
96 |
110 |
136 |
10 |
8 |
260 |
97 |
| AKB-980430-PPF-1C |
Connector & Wire |
V |
Circle |
98 |
98 |
11.5 |
3 |
4 |
460 |
99 |
| AKB-980430-PPF-2C |
Connector & Wire |
V |
Circle |
98 |
98 |
15 |
3 |
4 |
265 |
100 |
| AK-M28M8-3C |
Connector & Wire |
X |
Circle |
28 |
28 |
5.5 |
0.5 |
8 |
750 |
96 |
| AK-M36M8-3C |
Connector & Wire |
X |
Circle |
28 |
28 |
4.7 |
0.5 |
8 |
550 |
94 |
| AKR-151107D-1P |
Solder Point |
V |
Rectangle |
15 |
11 |
3.8 |
0.6 |
7 |
600 |
83 |
| AKR-15110801-PM-1CV |
Connector & Wire |
V |
Rectangle |
15 |
11 |
3.8 |
0.1 |
8 |
500 |
80 |
| AKR-15110801-PP-1C |
Connector & Wire |
V |
Rectangle |
15 |
11 |
3.8 |
0.1 |
8 |
550 |
80 |
| AKR-15110806-PAM-1PV |
Solder Point |
V |
Rectangle |
15 |
11 |
3 |
0.6 |
8 |
650 |
85 |
| AKR-15110807-PAM-5CV |
Connector & Wire |
V |
Rectangle |
15 |
11 |
3.1 |
0.7 |
8 |
700 |
88 |
| AKR-15110807PAM-5CV1 |
Connector & Wire |
V |
Rectangle |
15 |
11 |
3.1 |
0.7 |
8 |
700 |
88 |
| AKR-151108D-5C |
Connector & Wire |
V |
Rectangle |
15 |
11 |
3.8 |
0.1 |
8 |
550 |
80 |
| AKR-232308D-C |
Connector & Wire |
X |
Rectangle |
23 |
23 |
10.2 |
2 |
8 |
700 |
88 |
| AKR-251408C-2C1 |
Connector & Wire |
X |
Rectangle |
25 |
14 |
5.4 |
1 |
8 |
110 |
87 |
| AKR-251408C-2C3 |
Connector & Wire |
X |
Rectangle |
25 |
14 |
5.4 |
1 |
8 |
110 |
87 |
| AKR-28280420-MMPU-1 |
Solder Point |
X |
Rectangle |
28 |
28 |
7.2 |
2 |
4 |
400 |
94 |
| AKR-28280420-MMPU-1C |
Connector & Wire |
X |
Rectangle |
28 |
28 |
7.8 |
2 |
4 |
400 |
94 |
| AKR-28280820-MMPU-1 |
Solder Point |
X |
Rectangle |
28 |
28 |
7.8 |
2 |
8 |
430 |
94 |
| AKR-28280820-MMPU-1C2 |
Connector & Wire |
X |
Rectangle |
28 |
28 |
7.8 |
2 |
8 |
430 |
94 |
| AKR-28280820-MMPU-1C4 |
Connector & Wire |
X |
Rectangle |
28 |
28 |
7.8 |
2 |
8 |
430 |
94 |
| AKR-28280820-MMPU-1C5 |
Connector & Wire |
X |
Rectangle |
28 |
28 |
7.8 |
2 |
8 |
430 |
94 |
| AKR-28280820-MMPU-1W |
Connector & Wire |
X |
Rectangle |
28 |
28 |
7.8 |
2 |
8 |
430 |
94 |
| AKR-35160810-PM-1C |
Connector & Wire |
X |
Rectangle |
35 |
16 |
5.8 |
1 |
8 |
720 |
95 |
| AKR-35200420-PPC-1C |
Connector & Wire |
X |
Rectangle |
35 |
20 |
6.8 |
2 |
4 |
800 |
97 |
| AKR-35200820-PPC-1 |
Solder Point |
X |
Rectangle |
35 |
20 |
7.6 |
2 |
4 |
800 |
97 |
| AKR-40200410-MC-1C |
Connector & Wire |
X |
Rectangle |
40 |
20 |
5.8 |
1 |
4 |
650 |
92 |
| AKR-40200820-PPC-1C |
Connector & Wire |
X |
Rectangle |
40 |
20 |
8.4 |
2 |
8 |
700 |
98 |
| AKR-402008C-3C |
Connector & Wire |
X |
Rectangle |
40 |
20 |
9.6 |
2 |
8 |
550 |
93 |
| AKR-535308100-MU-1C2 |
Connector & Wire |
X |
Rectangle |
53.4 |
53.4 |
30.5 |
10 |
8 |
200 |
121 |
| AKR-71410840-MPC-1C |
Connector & Wire |
X |
Rectangle |
71 |
41 |
29 |
4 |
8 |
450 |
100 |
| AKR-714108C-C |
Connector & Wire |
X |
Rectangle |
71 |
41 |
29 |
4 |
8 |
450 |
100 |
| AKR-878708C-1 |
Solder Point |
X |
Rectangle |
87 |
87 |
33.2 |
5 |
8 |
240 |
105 |
| AKR-905008C-1 |
Solder Point |
X |
Rectangle |
90 |
50 |
35.5 |
4 |
8 |
250 |
104 |
| AKR-P1511M8-1WV |
Connector & Wire |
X |
Rectangle |
15 |
11 |
3.9 |
0.5 |
8 |
650 |
81 |
| AKV2-15100805-PM-1C |
Connector & Wire |
X |
Oval |
15 |
10 |
4.2 |
0.5 |
8 |
1300 |
86 |
| AKV-18130808-PM-1C |
Connector & Wire |
X |
Oval |
20 |
15 |
5.1 |
0.8 |
8 |
1050 |
88 |
| AKV-20140408-PM-1C |
Connector & Wire |
X |
Oval |
20 |
14 |
4.5 |
0.8 |
4 |
950 |
94 |
| AKV-20140808-PM-1 |
Solder Point |
X |
Oval |
20 |
14 |
4.5 |
0.8 |
8 |
1000 |
88 |
| AKV-20140808-PM-1WV |
Connector & Wire |
X |
Oval |
20 |
14 |
4.5 |
0.8 |
8 |
1000 |
88 |
| AKV-22090810-PM-1W |
Connector & Wire |
X |
Oval |
22 |
9 |
4.2 |
1 |
8 |
1350 |
90 |
| AKV-24150808-PM-1W |
Connector & Wire |
X |
Oval |
24 |
15 |
5 |
0.8 |
8 |
950 |
92 |
| AKV-30200810-PM-2CV |
Connector & Wire |
X |
Oval |
30 |
20 |
5.1 |
1 |
8 |
670 |
94 |
| AKV-P2209M8-1C |
Connector & Wire |
X |
Oval |
22 |
9 |
4.2 |
1 |
8 |
1350 |
90 |
| AKV-P3020M4-1C |
Connector & Wire |
X |
Oval |
30 |
20 |
635 |
1 |
4 |
750 |
95 |
| AK-200805-MM-1C-IP45 |
Connector & Wire |
X |
Circle |
21.5 |
21.5 |
4 |
0.5 |
8 |
900 |
92 |
| ADK-2008EB-23 |
Solder Point |
X |
Circle |
20 |
20 |
3.4 |
0.5 |
8 |
800 |
90 |
| AK-1808A-3 |
Solder Point |
X |
Circle |
18 |
18 |
3.8 |
0.5 |
8 |
650 |
85 |
| AK-2308EB-8 |
Solder Point |
X |
Circle |
23 |
23 |
4 |
1.0 |
8 |
820 |
97 |
| AK-2808AB-12 |
Solder Point |
X |
Circle |
28 |
28 |
3.9 |
0.3 |
8 |
600 |
90 |
| AK-2808AB-18 |
Solder Point |
X |
Circle |
28 |
28 |
4 |
0.3 |
8 |
750 |
94 |
| AK-3008BA-0PB |
Pin |
V |
Circle |
29.2 |
29.2 |
11.8 |
0.15 |
8 |
1300 |
80 |
| AK-3608BB-27-LF |
Solder Point |
X |
Circle |
36 |
36 |
4.6 |
0.5 |
8 |
500 |
96 |
| AK-4008BB-7W1 |
Wire |
X |
Circle |
40 |
40 |
5.1 |
0.5 |
8 |
600 |
98 |
| AK-4508BB-2-LF |
Solder Point |
X |
Circle |
45 |
45 |
5.3 |
1.0 |
8 |
500 |
100 |
| AK-131605-PM-1 |
Solder Point |
X |
Circle |
13 |
13 |
3.4 |
0.5 |
16 |
1300 |
90 |
| AK-230805-MM-1C |
Connector & Wire |
X |
Circle |
23 |
23 |
4.5 |
0.5 |
8 |
600 |
93 |
| AK-343408FF-2 |
Solder Point |
X |
Rectangle |
34 |
34 |
15 |
2.0 |
8 |
300 |
93 |
| AKB-542008CC-1C-LF |
Connector & Wire |
V |
Rectangle |
54 |
20 |
10.5 |
1.0 |
8 |
900 |
93 |
| AK-603308BC-8C |
Connector & Wire |
V |
Rectangle |
60 |
33 |
18 |
2.0 |
8 |
750 |
95 |
| AK-703008BC-2-LF |
Solder Point |
V |
Rectangle |
70 |
30 |
23 |
2.0 |
8 |
300 |
103 |
| AK-714108BC-4 |
Solder Point |
X |
Rectangle |
71 |
41 |
25 |
4.0 |
8 |
380 |
100 |
| AKB-1508A-P |
Pin |
V |
Circle |
15 |
15 |
7.5 |
0.3 |
8 |
2000 |
90 |
| AK-1808A-3 |
SOLDER POINT |
X |
Circle |
18 |
18 |
3.8 |
0.5 |
8 |
650 |
85 |
| AK-2308EB-8 |
SOLDER POINT |
X |
Circle |
23 |
23 |
4 |
1 |
8 |
820 |
97 |
| AK-2808AB-18 |
SOLDER POINT |
X |
Circle |
28 |
28 |
4 |
0.3 |
8 |
750 |
94 |
| AK-3608BB-27-LF |
SOLDER POINT |
X |
Circle |
36 |
36 |
4.6 |
0.5 |
8 |
500 |
96 |
| AK-4008BB-7W1 |
Wire |
X |
Circle |
40 |
40 |
5.1 |
0.5 |
8 |
600 |
98 |
| AK-4508BB-2-LF |
SOLDER POINT |
X |
Circle |
45 |
45 |
5.3 |
1 |
8 |
500 |
100 |
| AK-131605-PM-1 |
SOLDER POINT |
X |
Circle |
13 |
13 |
3.4 |
0.5 |
16 |
1300 |
90 |
| AK-230805-MM-1C |
Wire & Connector |
X |
Circle |
23 |
23 |
4.5 |
0.5 |
8 |
600 |
93 |
| AK-343408FF-2 |
SOLDER POINT |
X |
Square |
34 |
34 |
15 |
2 |
8 |
300 |
93 |
| AK-703008BC-2-LF |
SOLDER POINT |
X |
Rectangle |
70 |
30 |
23 |
2 |
8 |
300 |
103 |
| AK-714108BC-4 |
SOLDER POINT |
X |
Rectangle |
71 |
41 |
25 |
4 |
8 |
380 |
100 |
| AKB-1508A-P |
PIN |
V |
Circle |
15 |
15 |
7.5 |
0.3 |
8 |
2000 |
90 |
| AKS-1308-1 |
SMT |
X |
Circle |
13 |
13 |
4 |
0.7 |
8 |
1100 |
83 |
| AK-542008CC-1C-LF |
Wire |
V |
Circle |
79.6 |
20 |
10.5 |
1 |
8 |
900 |
93 |
| AK-5008KC-4 |
Solder Point |
X |
Circle |
50 |
50 |
16.9 |
0.25 |
8 |
450 |
96 |
| AK-260810-MM-2 |
Solder Point |
X |
Circle |
26 |
26 |
4.6 |
1 |
8 |
750 |
94 |
| AK-1006A-1W |
Wire |
X |
Circle |
10 |
10 |
3.4 |
0.3 |
6 |
1200 |
85 |
| UT-P2023 |
SMT |
V |
Rectangle |
6.7 |
4.7 |
1.58 |
15V |
26nF |
2900 |
71 |
| UA-C0601-2F |
SMD |
X |
Circle |
6 |
6 |
1.4 |
22nF |
2700 |
113 |
| UA-C0501-2T |
SMD |
X |
Circle |
5 |
5 |
1.42 |
22nF |
5100 |
118 |
| UA-C0601-2T |
SMD |
X |
Circle |
6 |
6 |
1.44 |
22nF |
5400 |
118 |
|
|
