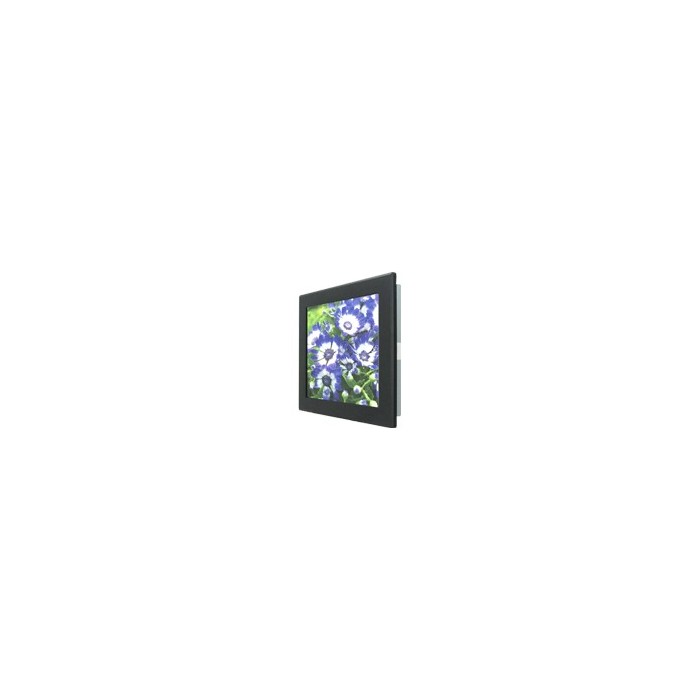

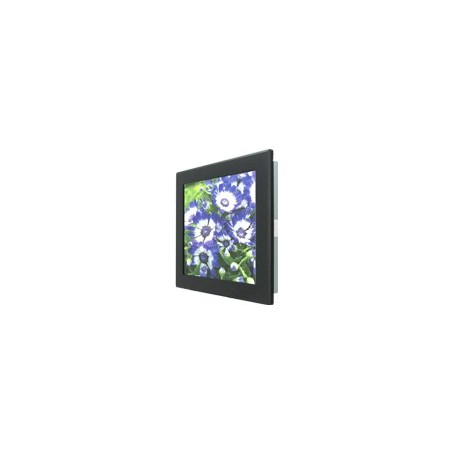

Panel Mount LCD 17" : S17L500-PMM1/S17L540-PMM1 Agrandir l'image

Panel Mount LCD 17" : S17L500-PMM1/S17L540-PMM1

Téléchargement

Description

Screen Size : 17"
Display Resolution (pixel) : 1280x1024
Contrast Ratio : 800:1 (typ.)
Brightness (CD/m^2) : 300 (typ.)

Specification
Active Display Area (mm) : 337.92 (H)x270.34 (V)
Pixel Pitch (mm) : 0.264 (H)x0.264 (V)
Display Resolution (pixel) : 1280x1024
Contrast Ratio : 800:1 (typ.)
Display Color : 16.7M (6bits+FRC)
Brightness (CD/m^2) : 300 (typ.)
Viewing Angles (CR >=10) : -80~80 (H); -80~80 (V)
Synchronization Range_Horizontal / Vertical : 31.5~80.0KHz / 60~75Hz
Recommended Resolution : 1280x1024@60Hz, 75Hz
Signal Connector : 15 pin D-sub
Power Source : AC 100~240 V,Universal,±10%
Power Consumption : 32 W typical, normal operation
Power Management : VESA DPMS Compliant
Plug & Play : VESA DDC 1/2B
Video Input (optional) : S-Video,Composite
DVI Input (optional) : Yes
Support Video Signal Type : NTAC/PAL
Optional Touch Screen : Resistive, Capacitive, SAW

Remark:R17L500 = VGA input only
R17L540 = VGA + Video input

*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.

Fiche technique

Dalles TactilesCapacitif, Infra Rouge , Résistif, SAW
Diagonales de l'écran12,5 à 21''
Entrées vidéoVGA
Luminosités300 cd/m2
Résolutions1 280 x 1 024
