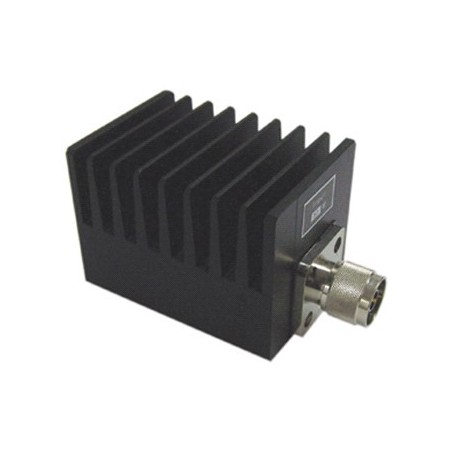

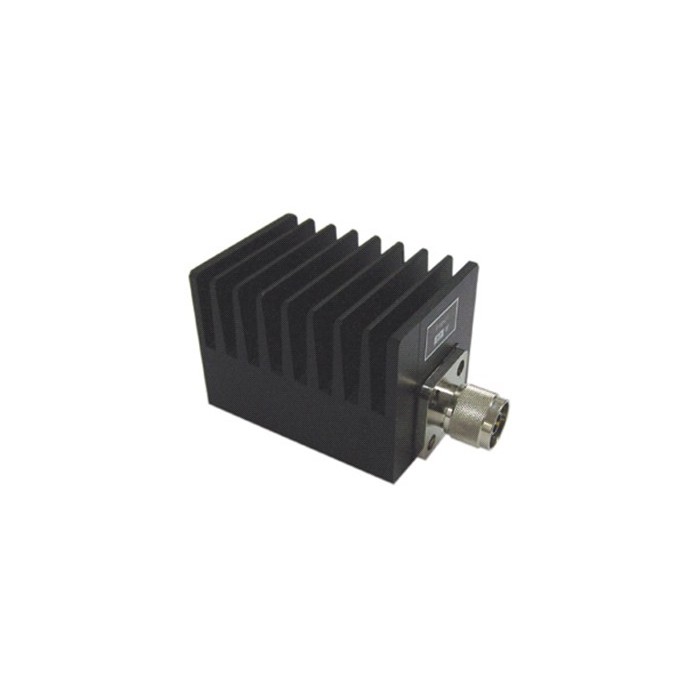

Description
Caractéristiques techniques :
- DC-40GHz, jusqu'à 100W
- Impédance de 50 Ohm et 75 Ohm
- Valeur d'atténuation plate et précision
- Haute fiabilité, performances répétables
- Montage sur cloison ou sur panneau
- Avec connecteurs 2.92mm,3.5mm,SMA,N
- Conformité RoHS
- Conceptions personnalisées disponibles
Références et spécifications :
| Model Number |
Average Power(W) |
Peak Power(kW) |
Frequency Range(GHz) |
VSWR |
Nominal Attenuation Value(dB) |
Connector
Type |
| SMPTS1 |
1 |
|
DC-18 |
≤1.35 |
1,2,3,5,7,9,10 |
SMP |
| 1.85TS1 |
1 |
0.2 |
DC-67 |
1.35-1.65 |
3,6,10,20 |
1.85mm(M,F) |
| 1.85TS2-XX-65 |
1 |
0.2 |
DC-65 |
1.35-1.65 |
3,6,10,20 |
1.85mm(M,F) |
| GZL-TS2/5 |
2/5 |
0.5 |
0.1-6 |
≤1.30 |
1-9,10,20,30,40 |
N |
| GZL-DTS10 |
10 |
1 |
0.1-6 |
≤1.30 |
1-9,10,20,30,40 |
N |
| GZL-DTS25 |
25 |
1 |
0.1-6 |
≤1.30 |
1-9,10,20,30,40 |
N |
| GZL-DTS50G |
50 |
5 |
0.1-6 |
≤1.30 |
3/6,10,20,30,40 |
N |
| GZL-DTS100-D |
100 |
5 |
0.1-4 |
≤1.25 |
20,30,40 |
N |
| PDTS100 |
100 |
10 |
DC-6 |
≤1.20 |
20-40 |
N,7/16 |
| 2.4TS2-50 |
2 |
0.2 |
DC-50 |
≤1.55 |
1-10,20 |
2.4mm |
| 2.4TS5-50 |
5 |
0.2 |
DC-50 |
≤1.45 |
1-30 |
2.4mm |
| 2.4TS2 |
2 |
0.2 |
DC-40 |
≤1.35 |
1-40 |
2.4mm |
| 2.4TS5 |
5 |
0.2 |
DC-41 |
≤1.35 |
1-40 |
2.4mm |
| 2.4TS10 |
10 |
0.2 |
DC-42 |
≤1.40 |
10-40 |
2.4mm |
| 2.4TS20 |
20 |
0.2 |
DC-43 |
≤1.40 |
10-40 |
2.4mm |
| 2.92TS2-26.5 |
2 |
0.2 |
DC-44 |
≤1.25 |
1-40 |
2.92mm |
| 2.92TS2-40-KFKS |
2 |
0.2 |
DC-45 |
≤1.35 |
1-9,10,20,30 |
2.92mm(F,F) |
| 2.92TS1-40 |
1 |
0.2 |
DC-46 |
≤1.35 |
1,2-9,10,20,30 |
2.92mm(M,F) |
| 2.92TS2-40 |
2 |
0.2 |
DC-47 |
≤1.35 |
1-40 |
2.92mm |
| 2.92TS5-26.5 |
5 |
0.2 |
DC-48 |
≤1.25 |
1-40 |
2.92mm |
| 2.92TS5-40 |
5 |
0.2 |
DC-49 |
≤1.35 |
1-40 |
2.92mm |
| 2.92TS10 |
10 |
0.2 |
DC-50 |
≤1.40 |
10-40 |
2.92mm |
| 2.92TS20 |
20 |
0.2 |
DC-51 |
≤1.40 |
10-40 |
2.92mm |
| 2.92TS30 |
30 |
0.2 |
DC-52 |
≤1.45 |
40 |
2.92mm |
| 2.92TS50-40 |
50 |
0.5 |
DC-53 |
≤1.60 |
30,40 |
2.92mm |
| 2.92TS100-26.5 |
100 |
0.5 |
DC-54 |
≤1.40 |
10-40 |
2.92mm |
| 3.5TS2 |
2 |
0.5 |
DC-55 |
≤1.25 |
1-70 |
3.5mm |
| 3.5TS5 |
5 |
0.5 |
DC-56 |
≤1.25 |
1-9,10-19,20-30,40,50,60 |
3.5mm |
| 3.5TS10 |
10 |
0.5 |
DC-57 |
≤1.25 |
1-70 |
3.5mm |
| 3.5TS25 |
25 |
0.5 |
DC-58 |
≤1.3 |
3-70 |
3.5mm |
| 3.5TS50 |
50 |
0.5 |
DC-59 |
≤1.3 |
3-60 |
3.5mm |
| 3.5TS100-26.5 |
100 |
0.5 |
DC-60 |
≤1.40 |
3,6,10,20,30,40,50 |
3.5mm, SMA(M,F),SMK(2.92) |
| MSMA |
2 |
0.5 |
DC-61 |
≤1.30 |
1-9,10,20,30 |
SMA(M,F) |
| SMA |
2 |
0.5 |
DC-62 |
≤1.35 |
1-30 |
SMA |
| SMAG |
2 |
0.5 |
DC-63 |
≤1.30 |
1-50 |
SMA |
| SMAG2 |
2 |
0.5 |
DC-64 |
≤ 1.35 |
1-40 |
SMA(M,F) |
| SMAS |
2 |
0.5 |
DC-65 |
≤1.3 |
1-12 |
SMA(M,F) |
| SMAGH |
2 |
0.5 |
DC-66 |
≤ 1.40 |
30-90 |
SMA |
| SSMA |
2 |
0.2 |
DC-67 |
≤1.35 |
1-30 |
SSMA(M,F) |
| RPSMA |
2 |
0.5 |
DC-68 |
≤1.20 |
1-30 |
SMA(M,F) |
| QMA2 |
2 |
0.5 |
DC-69 |
≤1.2 |
1-30 |
输入：QMA，输出：SMA |
| QSMA2 |
2 |
0.5 |
DC-70 |
≤ 1.2 |
1-30 |
输入：QSMA，输出：SMA |
| SMAKF |
2 |
0.5 |
DC-71 |
≤ 1.35 |
1-30 |
SMA(F,F) |
| SMA5 |
5 |
0.5 |
DC-72 |
≤ 1.35 |
3-50 |
SMA(M,F) |
| QSMA10 |
10 |
0.5 |
DC-73 |
≤1.20 |
30 |
QSMA(M), SMA(F) |
| SMA10 |
10 |
0.5 |
DC-74 |
≤ 1.35 |
3-40 |
SMA(M,F) |
| SMA25 |
25 |
1 |
DC-75 |
≤ 1.35 |
10-40 |
SMA(M,F) |
| DTS50-1.4-1G |
50 |
5 |
DC-76 |
≤1.20 |
1.4 |
N(F,F) |
| DTS50GA |
50 |
1 |
DC-77 |
≤1.30 |
10-60 |
SMA, 3.5mm, 2.92mm |
| DTS50-9.4-1G |
50 |
5 |
DC-78 |
≤ 1.20 |
9.4 |
N(F,F) |
| SMK50-26.5 |
50 |
1 |
DC-79 |
≤1.35 |
10,20,30,40 |
SMK(2.92) |
| TS2 |
2 |
0.5 |
DC-80 |
≤ 1.25 |
1-9,10,20,30,40 |
A: N, SMA, TNC, BNC(DC-4), B: N, SMA, TNC |
| TS2G |
2 |
0.5 |
DC-81 |
≤ 1.40 |
1-9,10,20,30,40,50 |
N,TNC,SMA |
| TS2GA |
2 |
0.5 |
DC-82 |
≤ 1.30 |
1-9,10,20,30,40,50 |
A:N; B/C:N,TNC |
| TS2GH |
2 |
0.5 |
DC-83 |
≤ 1.35 |
40-90 |
N,TNC |
| TS5 |
5 |
0.5 |
DC-84 |
≤ 1.3 |
1-9,10,20,30,40 |
A: N,SMA,BNC(DC-4),CC11(DC-4), L16(DC-4)；B:N,SMA |
| TS5G |
5 |
0.5 |
DC-85 |
≤ 1.40 |
1-50 |
N,TNC,SMA |
| TS5GA |
5 |
0.5 |
DC-86 |
≤ 1.30 |
1-50 |
A:N; B/C:N,TNC |
| TS5GH |
5 |
1 |
DC-87 |
≤ 1.35 |
40-90 |
N,TNC |
| DTS10 |
10 |
1 |
DC-88 |
≤ 1.3 |
1-40 |
N, SMA, TNC, BNC(DC-4) |
| DTS10G |
10 |
1 |
DC-89 |
≤ 1.45 |
3,6,10,20,30,40 |
N, SMA,TNC |
| DTS10GA |
10 |
1 |
DC-90 |
≤ 1.30 |
1-40 |
N |
| DTS10GH |
10 |
1 |
DC-91 |
≤ 1.45 |
10-60 |
N, TNC,SMA |
| DTS25 |
25 |
1 |
DC-92 |
≤ 1.3 |
1-50 |
N, SMA, TNC(DC-4), BNC(DC-4), 7/16(DC-4) |
| DTS25G |
25 |
1 |
DC-93 |
≤ 1.45 |
10-40 |
N,TNC,SMA |
| DTS25G-D |
25 |
1 |
DC-94 |
≤ 1.30 |
10-70 |
N, TNC |
| DTS25GH |
25 |
1 |
DC-95 |
≤ 1.45 |
10-60 |
N, SMA,TNC |
| DTS30 |
30 |
1 |
DC-96 |
≤ 1.30 |
3,6,10,20,30,40 |
N, SMA, 7/16(DC-4), BNC(DC-4) |
| DTS30G |
30 |
5 |
DC-97 |
≤ 1.35 |
3,6,10,20,30,40 |
N |
| DTS50-A |
50 |
10 |
DC-98 |
≤ 1.35 |
1-40 |
N, SMA, 7/16, TNC, BNC |
| DTS50G |
50 |
5 |
DC-99 |
≤ 1.35 |
3-40 |
N, 7/16 |
| DDTS50 |
50 |
10 |
DC-100 |
≤1.35 |
1-40 |
N，7/16 |
| DTS50GH |
50 |
1 |
DC-101 |
≤1.35 |
10-40 |
N,TNC,SMA |
| DTS50GH-C |
50 |
1 |
DC-102 |
≤ 1.35 |
3-40 |
N,SMA |
| DTS50GH-D |
50 |
1 |
DC-103 |
≤ 1.25 |
10-60 |
N |
| WDTS50 |
50 |
5 |
DC-104 |
≤ 1.35 |
3-40 |
7/16(DC-4), N |
| DTS60 |
60 |
10 |
DC-105 |
≤ 1.35 |
1-40 |
N, SMA, 7/16, TNC, BNC |
| DTS60G |
60 |
5 |
DC-106 |
≤ 1.35 |
3-40 |
N, 7/16 |
| DTS80 |
80 |
10 |
DC-107 |
≤ 1.35 |
10-40 |
N, 7/16, TNC, BNC |
| DTS80G |
80 |
1 |
DC-108 |
≤ 1.45 |
10,20,30,40 |
N,SMA,TNC |
| WDTS80 |
80 |
5 |
DC-109 |
≤1.40 |
3,6,10,20,30,40 |
N, 7/16(DC-2.5) |
| DTS100 |
100 |
10 |
DC-110 |
≤1.35 |
10,20,30,40-50 |
N, 7/16 |
| DTS100-D |
100 |
5 |
DC-111 |
≤1.25 |
30 |
N,7/16 |
| DDTS100(双向) |
100 |
5 |
DC-112 |
≤1.20 |
30,40 |
N |
| WDTS100-A(B) |
100 |
5 |
DC-113 |
≤1.45 |
3,6,10,20,30,40 |
|
| TNC2 |
2 |
0.5 |
DC-114 |
≤1.35 |
1-30 |
TNC |
| TNC2H |
2 |
0.5 |
DC-115 |
≤1.35 |
40-90 |
TNC |
| TNC5 |
5 |
0.5 |
DC-116 |
≤1.35 |
1-30 |
TNC |
| TNC5H |
5 |
0.5 |
DC-117 |
≤1.35 |
40-90 |
TNC |
| TNC10 |
10 |
1 |
DC-118 |
≤1.35 |
1-30 |
TNC |
| TNC10H |
10 |
1 |
DC-119 |
≤1.35 |
40-90 |
TNC |
| TNC25 |
25 |
1 |
DC-120 |
≤1.35 |
10-40 |
TNC |
| TNC50-A |
50 |
1 |
DC-121 |
≤1.40 |
3-40 |
TNC |
| TNC50-B |
50 |
1 |
DC-122 |
≤1.3 |
10-40 |
TNC |
| TNC100 |
100 |
1 |
DC-123 |
≤1.4 |
10-40 |
TNC |
| TNC150 |
150 |
1 |
DC-124 |
≤ 1.45 |
10-40 |
TNC |
| TNC200 |
200 |
1 |
DC-125 |
≤ 1.5 |
10-40 |
TNC |
| 4.3/10TS10 |
10 |
1 |
DC-126 |
≤1.25 |
1-40 |
4.3/10 |
| 4.3/10TS25 |
25 |
1 |
DC-127 |
≤1.25 |
1-40 |
4.3/10 |
| 4.3/10TS50 |
50 |
5 |
DC-128 |
≤1.30 |
10-40 |
4.3/10 |
| 4.3/10TS100-D |
100 |
5 |
DC-129 |
≤1.25 |
20,30,40 |
4.3/10 |
| 4.3/10WTS100 |
100 |
5 |
DC-130 |
≤1.30 |
10-40 |
4.3/10 |
| 4.3/10WTS150 |
150 |
5 |
DC-131 |
≤1.30 |
10-40 |
4.3/10 |
| 4.3/10WTS200 |
200 |
5 |
DC-132 |
≤1.30 |
10-40 |
4.3/10 |
| FTS2-XX-18-NS |
18 |
0.2 |
DC-133 |
≤ 1.30 |
1-30 |
N(F)-SMA(M,F) |
| DTS30G-A |
30 |
5 |
DC-134 |
≤1.20 |
3-40 |
N |
| DTS30G-B |
30 |
5 |
DC-135 |
≤1.20 |
3-40 |
N |
| DTS50G-E |
50 |
5 |
DC-136 |
≤ 1.35 |
3-40 |
N |
| DTS50GH-E |
50 |
5 |
DC-137 |
1.35-1.10 |
3-40 |
N |
| DTS80G |
80 |
1 |
DC-138 |
≤ 1.40 |
10-40 |
N, SMA |
| WDTS80 |
80 |
5 |
DC-139 |
≤ 1.40 |
3-40 |
N,7/16（DC-2.5） |
| DTS100 |
100 |
10 |
DC-140 |
≤ 1.35 |
10-50 |
N, 7/16 |
| DTS100-D |
100 |
5 |
DC-141 |
≤ 1.25 |
30 |
N,7/16 |
| DDTS100(双向) |
100 |
5 |
DC-142 |
≤1.20 |
30,40 |
N |
| DTS100G(F) |
100 |
1 |
DC-143 |
≤ 1.45 |
3-50 |
N |
| DTS100G-A |
100 |
1 |
DC-144 |
≤ 1.40 |
3-50 |
N |
| DTS100G-C(双向) |
100 |
1 |
DC-145 |
≤ 1.40 |
3-40 |
N |
| WDTS100 |
100 |
5 |
DC-146 |
≤ 1.50 |
3-40 |
7/16(DC-4), N |
| WDTS100-C |
100 |
5 |
DC-147 |
≤ 1.50 |
3-40 |
7/16(DC-4), N |
| WDTS100-E |
100 |
5 |
DC-148 |
1.15-1.50 |
3-40 |
N |
| WDTS150-E |
150 |
5 |
DC-149 |
1.15-1.50 |
3-40 |
N |
| WDTS200-E |
200 |
5 |
DC-150 |
1.15-1.45 |
10,20,30,40 |
N (M,F) |
| QSMA10-30-6 |
10 |
0.5 |
DC-151 |
≤1.20 |
30 |
QSMA |
| MSMA |
2 |
0.5 |
DC-152 |
≤1.30 |
1-9,10,20,30 |
SMA(M,F) |
| QSMA2 |
2 |
0.5 |
DC-153 |
≤1.20 |
1-9,10,20,30 |
QSMA, SMA |
