FEATURES • Supports Intel® Dual Core / Quad Core Xeon® processors
• 2x DDR2 DIMM sockets for up to 48GB memory
• Onboard Intel® Gigabit LAN with 4x RF-45 interfaces
• Supports 2x swappable 3.5" SAS or SATA hard disks
• 16x2 LCM for ease of control and operation
• IPMI 2.0 compliant
SPECIFICATIONS • CPU : 2x Intel® Dual Core/Quad Core Xeon 5000 series processors
• Chipset : Intel® 5100, Intel® ICH9R I/O Controller Hub
• Memory : 6x DDR2 DIMM sockets, support ECC registered 533/667 MHz, upto
48GB
• Network :
- Intel® 82571 dual Gigabit LAN
- Intel® 82575 dual Gigabit LAN
• Expansion Slot : 2x PCI-E (x8) expansion slot
• Storage : 2x swappable 3.5" SAS or SATA hard disks
• USB :
- 2x USB 2.0 ports on front panel
- Optional 1x USB 2.0 ports on rear panel
• VGA : Optional on rear panel by pin header with ASPEED AST2050 integrated
VGA
• LCM : 2x16 characters LCM module
• IPMI : IPMI 2.0 compatible
• Power Supply : Full Range ATX 500W Redundant 1+1
• Dimensions : 88mm (H) x 430mm (W) x 500mm (D)
Environmental/Mechanical :
• Operating Temperature : 0 ~ 45°C
• Storage Temperature : -20 ~ 70°C
• Operating Humidity : 5 ~ 95%
• Certification : CE/FCC
ORDERING INFORMATION

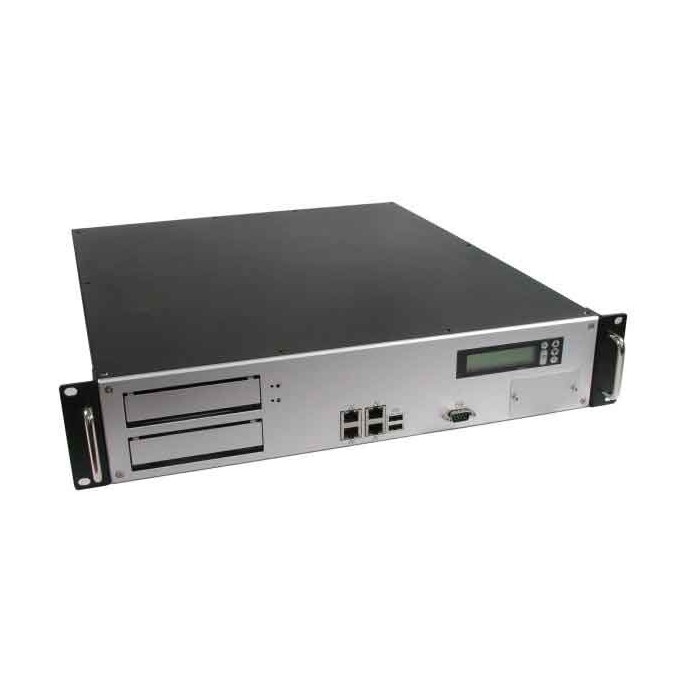

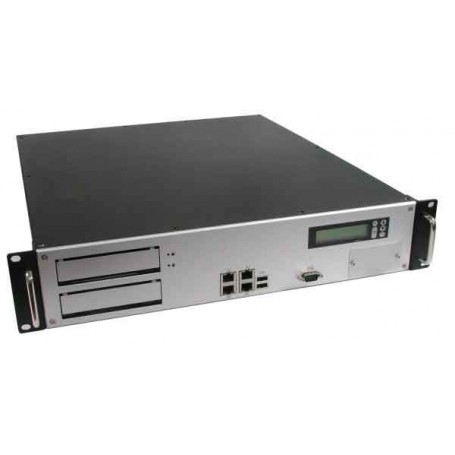

• FWA9300 : 2U Rackmount High Performance Intel® 5100 PCI-E Network
Security Appliance
Remarks : 1. Specifications are subject to change without prior notice.
