Description
Feature :
- High Contrast Ratio
- High Uniformity
- Fast Response Time
- Thin and Light
Specifications :

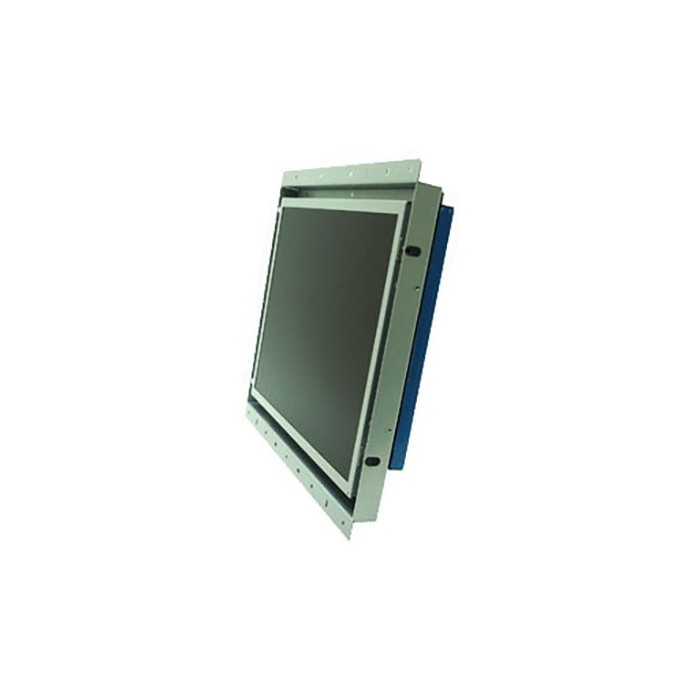

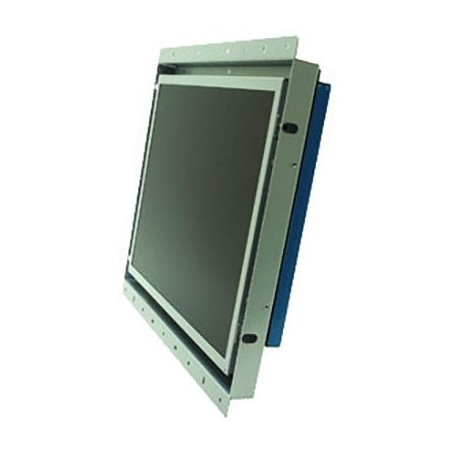

- Description : 15” Open Frame LCD Display, 250 nits, XGA
- Display Area : 304.128 x 228.096 mm
- Brightness : 250cd/m2
- Resolution : 1024 x 768 (XGA)
- Contrast Ratio : 600 : 1
- Pixel Pitch (mm) : 0.297(H) x 0.297(V)
- Viewing Angle : 160°(H), 160°(V)
- Display Colors : 16.7M colors
- Response Time (Typical) : 8ms (Typical)
- Power Input : DC 12V
- Power Consumption : 28W
- Dimensions : 352 x 319.4 x 46.8mm
- Weight (Net) : 3.42kg
Control Board (Optional) :
- AD5621GA : VGA + Audio
- AD5621GD : VGA+DVI
- AD2662GDVAR : VGA+DVI (Optional S-Video/ Component / Audio)
F/R Control Button :
- 5 Key : Power Switch, Menu, Select (+,-), Auto
- 4 Key : Power Switch, Menu, Select (+,-),
OSD Menu : Brightness, Contrast, H/V Position, Color, Phase, Clock…
Optional : AOT Touch Screen Waterproof
