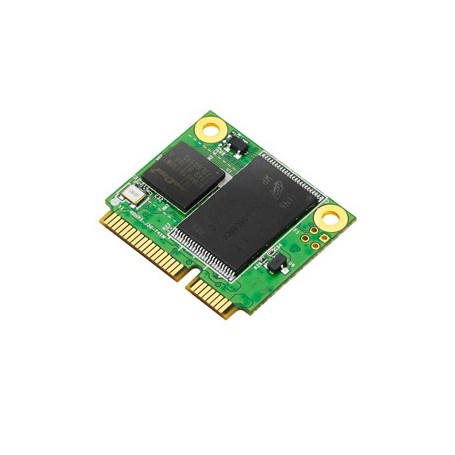

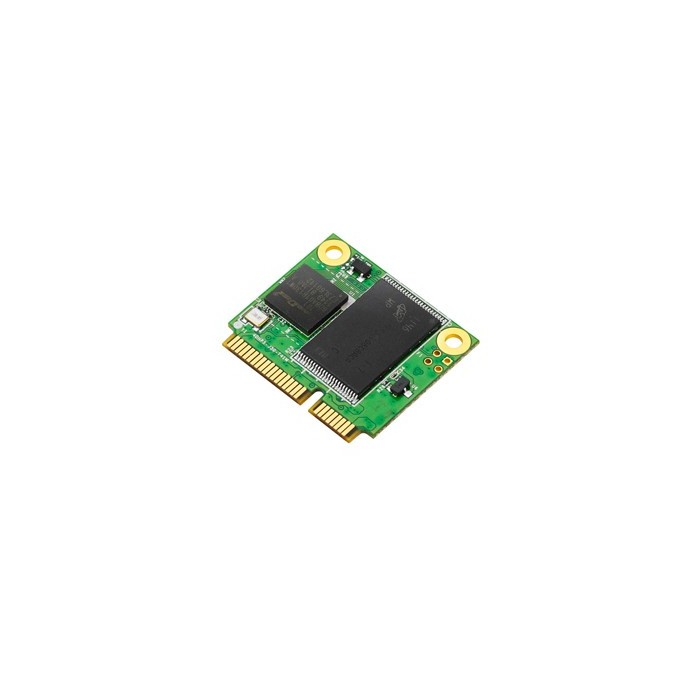

Innodisk’s InnoLite mSATA mini D150Q is designed in a half mini PCIe form factor with a SATA interface. This unique combination provides fast data transfer rate performance and allows for effective integration in small form factor applications, such as kiosks. The InnoLite mSATA mini D150Q also supports the SATA II standard (3.0Gb/s) and is compliant with JEDEC MO-300/MO-300B standards and SATA-IO mini SATA standards. The InnoLite mSATA mini D150Q is an MLC-based flash device and is available in capacities from 4GB up to 64GB.

Features :

• Static wear leveling algorithm support
• S.M.A.R.T / iSMART disk health monitoring tool
• Intelligent error recovery system
• Excellent data transfer speed

Benefits :
The Innodisk InnoLite mSATA D150Q provides manufacturers with a cost-effective MLC NAND flash replacement solution for hard disk drives (HDDs).

• Enables personal computer design to be smaller and more compact
• Reduces operation system boot time
• Consumes less power than an HDD
• Can be configured as a boot device or data storage device

Specifications :

• Model Name : InnoLite mSATA D150Q
• Interface : SATA II 3.0Gb/s
• Type : Standard
• Flash Type : MLC
• Pin Definition : mSATA
• Capacity : 8GB~128GB
• Max. Channels : 4
• Sequential R/W (MB/sec, max.) : 120/70
• Max. Power consumption : 1.25W (3.3V x 380mA)
• Thermal Sensor : Y
• External DRAM Buffer : N
• H/W Write Protect : Y
• ATA Security : Y
• S.M.A.R.T. : Y
• Conformal Coating : N
• Dimension (WxLxH/mm) : 29.8 x 50.8 x 3.5
• Vibration : 20G@7~2000Hz
• Shock : 1500G@0.5ms
• MTBF : >3 million hours
• Storage Temperature : -55°C ~ +95°C
• Operation Temperature :
  - Standard Grade: 0°C ~ +70°C;
  - Industrial Grade. OP: -40°C ~ +85°C
