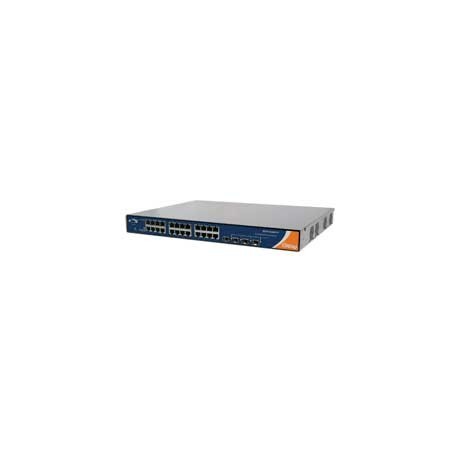

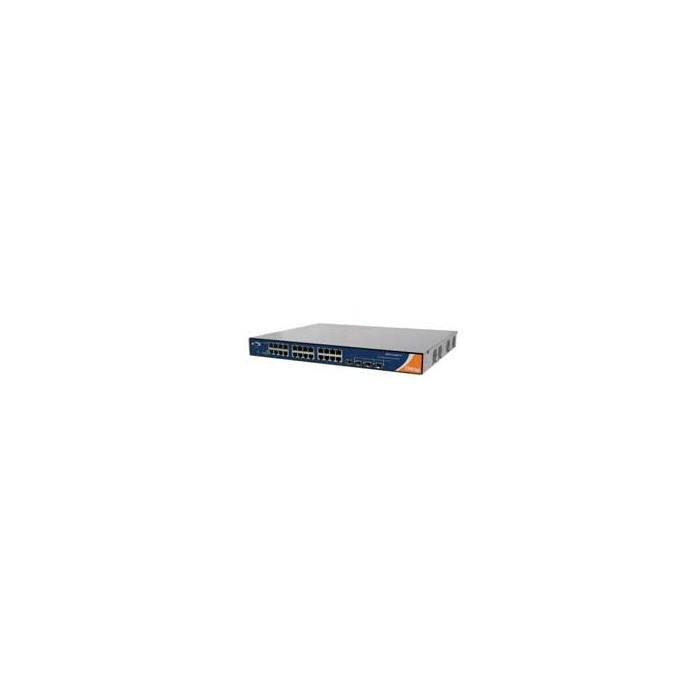

Industrial Rack-Mount Gigabit PoE Ethernet Switch, 1U, 24 ports : RGPS-7244GP/RGPS-7244GP-P Agrandir l'image

Industrial Rack-Mount Gigabit PoE Ethernet Switch, 1U, 24 ports : RGPS-7244GP/RGPS-7244GP-P | ORING

Support 24x10/100/1000Base-T(X) ports and 4x1000Base-X SFP ports 24 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port Support Jumbo frame up to 9K Bytes Supports O-Ring (recovery time < 30ms over 250 units of connection), MSTP/RSTP/STP (IEEE 802.1s/w/D)...

Téléchargement

Description

  • Support 24x10/100/1000Base-T(X) ports and 4x1000Base-X SFP ports
  • 24 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port
  • Support Jumbo frame up to 9K Bytes
  • Supports O-Ring (recovery time < 30ms over 250 units of connection), MSTP/RSTP/STP (IEEE 802.1s/w/D) for Ethernet Redundancy
  • Supports IP-based bandwidth management
  • Supports application-based QoS management
  • Supports Device Binding security function
  • Supports DOS/DDOS auto prevention
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Supports SNMP v1/v2c/v3, RMON and 802.1Q VLAN Network Management
  • Support ACL, 802.1x User Authentication for security
  • Multiple notification for warning of unexpected event
  • Windows utility (Open-Vision 3.0 or above) support centralized management and configurable by Web-based interface, Telnet and Console (CLI)
  • Support LLDP Protocol
  • Rigid IP-20 housing design
  • DIN-Rail and wall mounting enabled

Fiche technique (peut contenir des options)

Nombre de ports24 ports
