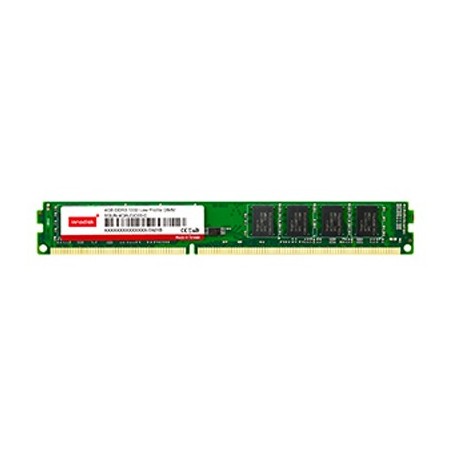

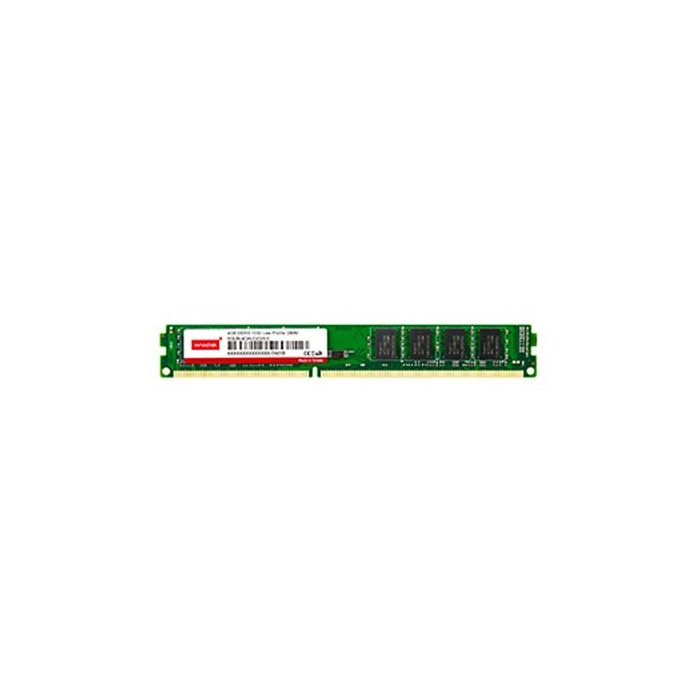

Very Low-Profile (VLP) 1600MHz/1333MHz/1066MHz 240pin : DDR3 LONG DIMM Agrandir l'image

Very Low-Profile (VLP) 1600MHz/1333MHz/1066MHz 240pin : DDR3 LONG DIMM | INNODISK

JEDEC standard 1.35V(1.28V~1.45V) & 1.5V(1.425V~1.575V) Power Supply JEDEC Standard 240-pin Dual In-Line Memory Module 8 bit pre-fetch On Die Termination with ODT pin Bi-directional Differential Data Strobe Average Refresh Period 7.8us at lower then TCASE 85°C, 3.9us at 85°C <...

Téléchargement

Description

  • JEDEC standard 1.35V(1.28V~1.45V) & 1.5V(1.425V~1.575V) Power Supply
  • JEDEC Standard 240-pin Dual In-Line Memory Module
  • 8 bit pre-fetch
  • On Die Termination with ODT pin
  • Bi-directional Differential Data Strobe
  • Average Refresh Period 7.8us at lower then TCASE 85°C, 3.9us at 85°C < TCASE ≤ 95°C
  • Low profile of PCB
  • Gold Finger 3μ"
  • RoHS Compliant

Fiche technique (peut contenir des options)

Data Rate 1600 MHz/ 1 333MHz/ 1 066 MHz
Pin 240 pin
Séries Standard

21 autres produits dans la même catégorie

Principales Caractéristiques (Peut contenir des options)

Data Rate 1600 MHz/ 1 333MHz/ 1 066 MHz
Pin 240 pin
Séries Standard
