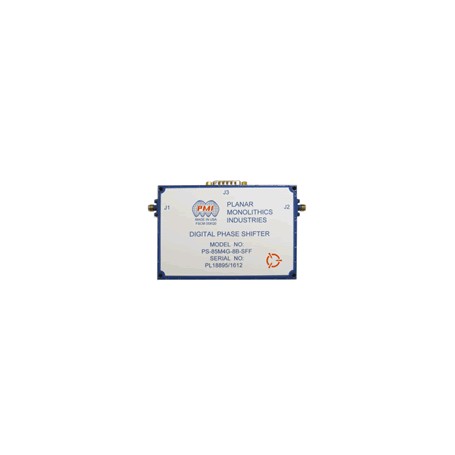

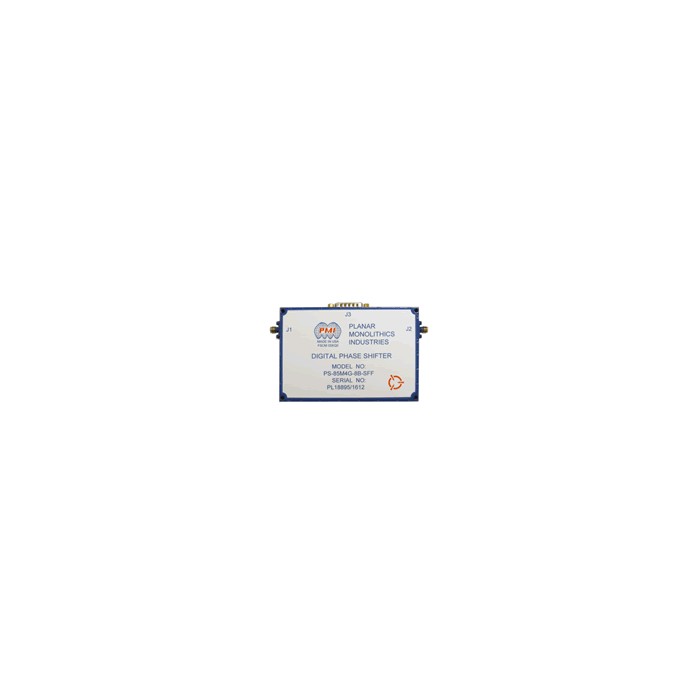

Déphaseur programmable (0,1 - 37 GHz) : Série PS Agrandir l'image

Déphaseur programmable (0,1 - 37 GHz) : Série PS | PLANAR MONOLITHICS INDUSTRIES (PMI)

Si vous ne voyez pas exactement ce dont vous avez besoin, veuillez envoyer votre demande par e-mail à hyper@es-france.com afin que nous puissions vous proposer une solution immédiate.

Plus de détails

Description

PMI propose des déphaseurs et des modulateurs biphasés de la plus haute qualité pour des applications industrielles et militaires dans la gamme de fréquences de quelques MHz à 40 GHz. Si vous ne voyez pas exactement ce dont vous avez besoin, veuillez envoyer votre demande par e-mail à hyper@es-france.com afin que nous puissions vous proposer une solution immédiate.

Caractéristiques des déphaseurs :

  • 0 à 360 degrés
  • Contrôle analogique
  • Contrôle numérique
  • Vitesse rapide
  • Faible perte d'insertion
  • Haute précision de phase
  • Petite taille

Références et spécifications :

StatusFrequency MinFrequency MaxControl BitsInsertion LossPhase Shift Range
PS-85M4G-8B-SFF- ROHSPreliminary0.085 GHz4 GHz8-Bit TTL13 dB max.360° typ
PS-2G18G-360-14D-TS OPT812Preliminary8 GHz12 GHz14 Bits (TTL)18 dB MAX360°
PS-812-360-14B-SFF OPT10D27Preliminary8 GHz12 GHz14 Bits, +3.3 V RS-422 Differential (+5V Tolerant)12 dB MAX360°
PS-360-DC-3 Option 618Active6 GHz18 GHz8-Bit TTL12.0 dBm Maximum, 10 dB Typical360
PS-360-DC-7928A
Options 618, 7928A
Preliminary6 GHz18 GHz8-Bit TTL3 dB typ.360°
PS-200M2G-8B-SFF-OPT480MPreliminary0.46 GHz0.5 GHz8-Bit TTL10.5 dB typ.360
PS-360-3237-10-292FFPreliminary32 GHz37 GHz10-Bit TTL13.0 dB Typ358.59°
PS-2G18G-360-12D-TS- OPT26Preliminary2.0 GHz6.0 GHz12-Bit TTL18.0 dB Max360°
PS-2G18G-360-12D-TS- OPT618Preliminary6.0 GHz18.0 GHz12-Bit TTL18.0 dB Max360°
PS-2G18G-360-12D-TSActive2.0 GHz18.0 GHz12-Bit TTL18.0 dB Max360°
PDPS-510-6-LCPreliminary5 GHz10 GHz6-Bit TTL14dB max180°
PDPS-515G535G-360- 2BPreliminary5.15 GHz5.35 GHz2-Bit TTL6.5dB typ270°
PS-100M1200M-9B-SFFActive0.1 GHz1.2 GHz9-Bit TTL13 dB max.360° typ
PS-204-1G2G-8B-SFF- LMPreliminary1 GHz2 GHz8-Bit TTL6.0 dB typ204°
PS-24R3G24R4-360- 10BPreliminary24.3 GHz24.4 GHz10-Bit TTL14 dB max.360°
PS-2G18G-360-12DPreliminary2 GHz18 GHz12 Bit TTL18.0 dB Max360°
PS-2G18G-360-16DPreliminary2 GHz18 GHz16 Bit TTL18.0 dB Max360°
PS-2G18G-360-16D- OPT6G18GPreliminary6 GHz18 GHz16 Bit TTL18.0 dB Max360°
PS-2G18G-360-8D-AMPPreliminary2 GHz18 GHz8-Bit TTL4.0 dB max.360° typ
PS-2G18G-360-8D-HTPreliminary2 GHz18 GHz8-Bit TTL18.0 dB max.360° typ
PS-2G6G-8B-SFF- OPT1G1D1GPreliminary1 GHz1.1 GHz8-Bit TTL10.5 dB Typ.360°
PS-360-19D5G20D5G- 10B-SFFPreliminary19.5 GHz20.5 GHz10-Bit TTL11.5dB typ360°
PS-360-1G2G-10B-SFFPreliminary1 GHz2 GHz10-Bit TTL5.5dB typ360°
PS-360-2R2G2R3G-6- SFFPreliminary2.2 GHz2.3 GHz6-Bit TTL-360°
PS-360-6G18G-5-SFFPreliminary6 GHz18 GHz5-Bit TTL8.0dB Max348.75°
PS-360-700M1100M-6- SFF-OPT1020Preliminary1.02 GHz1.1 GHz6-Bit TTL7.5 dB goal354.4°
PS-360-7R98R6G-6-SFFPreliminary7.9 GHz8.6 GHz6-Bit TTL-360°
PS-360-900M930M-6- SFFActive0.9 GHz0.93 GHz6-Bit TTL7dB typical354.4°
PS-360-DC-3 OPTION 618-15D-10R712R75Preliminary10.7 GHz12.7 GHz8 Bit TTL12.0 dB Max. 10.0 dB Typ360° in 256 Steps
PS-360-DC-3 OPTION 618-15D-6D25GPreliminary6.25 GHz6.25 GHz8-Bit TTL5dB typ360° typ
PS-360-DC-3 OPTION 713-15DPreliminary7 GHz13 GHz8 Bit TTL12.0 dB Max. 10.0 dB Typ360° in 256 Steps
PS-360-DC-3- OPT6R7G12R8G-15DPreliminary6.7 GHz12.8 GHz8-Bit TTL12.0 dB Max360° typ
PS-360-DC-IR- 14G14D5GActive14 GHz14.5 GHz10-Bit TTL11.5dB max.359.65°
PS-360-DC-IR-9D510D5Active9.5 GHz10.5 GHz10-Bit TTL11.5dB max359.65°
PS-360-DC-IR-9G10GActive9 GHz10 GHz10-Bit TTL11.5dB max.359.65°
PS-85M4G-6B-SFF- OPT100M300MPreliminary0.1 GHz0.3 GHz6-Bit TTL13 dB max.360° typ.
PSA-12G14G-10DPreliminary12 GHz14 GHz10-Bit TTL7.0dB max360°
PSD-25R5G27G-360Preliminary25.5 GHz27 GHz8-Bit TTL9.0 dB max.360°
PSDM-25R5G27G-360Preliminary25.5 GHz27 GHz8-Bit TTL12 dB max360°
PSDM-2G18G-360-10BPreliminary2 GHz18 GHz10-Bit TTL14 dB max360°
PSDM-2G18G-360-10B- AMPPreliminary2 GHz18 GHz10-Bit TTL2 dB max360°
PS-255-2G18G-8B-SFF- OPT25Preliminary2 GHz5 GHz8-Bit TTL3 dB typ.255°
PS-2G18G-360-8D- OPT4G16GPreliminary4 GHz16 GHz8-Bit TTL18.0 dB Max360°
PS-2G6G-8B-SFF- OPT2R1G4R8GPreliminary2.1 GHz4.8 GHz8-Bit TTL10.5 dB typ.360°
PS-360-2433D5-6-SFF-1Active2.433 GHz2.433 GHz6-Bit TTL5dB Typ360°
PS-360-2832-5-292FFPreliminary28 GHz32 GHz5-Bit TTL12.0 dB Max348.75°
PS-360-3237-5-292FFActive32 GHz37 GHz5-Bit TTL8.0dB Max348.75°
PS-360-DC-1R-810Active8 GHz10 GHz10-Bit TTL11.5 dB Max359.65°
PS-360-DC-3 OPT 618- 15D-12BPreliminary6 GHz18 GHz12 Bit TTL12.0dB Max360°
PS-360-DC-IR-9G11GActive9 GHz11 GHz10-Bit TTL8.0 dB typ360°
PS-400M2000M-360- 8DActive0.4 GHz2 GHz8-Bit TTL13.0 dB Max360° typ
PS-4G12G-360-12B-SFFPreliminary4 GHz12 GHz12 Bit TTL16dB Max.360° typ
PS-4G6G-10B-SFFPreliminary4 GHz6 GHz10-BIT TTL-360°
PS-500M2G-10B-SFF-EPreliminary0.4 GHz2 GHz10-Bit TTL13dB max360° typ
PS-85M4G-9B-SFF- OPT100M600MPreliminary0.1 GHz0.6 GHz9-Bit TTL13dB max360° typ
PSAT-9G11G-360D- 60DB-10DPreliminary9 GHz11 GHz2 x 10-Bit TTL12dB Typ.360°
PSD-25R5G27G-360- OPT25R2527R25Preliminary25.25 GHz27.25 GHz8-Bit TTL9.0 dB max.360°
PDPS-105F-6Active1.5 GHz1.5 GHz6-Bit TTL9.0 dB Max354.2°
PDPS-510-6Preliminary5 GHz10 GHz6-Bit TTL6.5dB Max354.2°
PDPS-5F-6Preliminary5.4 GHz5.9 GHz6-Bit TTL6.5dB Max354.2°
PS-12-360-QQ1470Active1 GHz2 GHz8-Bit TTL6.0 dB Max360° typ
PS-200M2G-8B-SFFActive0.2 GHz2 GHz8-Bit TTL10.5 dB Typ360° Typ
PS-204-1G2G-8B-SFFActive1 GHz2 GHz8-Bit TTL6.0 dB typ204°
PS-2D2G-360-CD-1Active2.17 GHz2.2 GHz9-Bit TTL13dB Typ360°
PS-2G18G-360-16D-TSPreliminary2 GHz18 GHz16-Bit TTL18.0 dB Max360
PS-360-2832-5-292FF- OPT10BPreliminary28 GHz32 GHz10-Bit TTL12.0 dB Max.359°
PS-360-8D5G11G-8- SFF-LVTActive8.5 GHz11 GHz8-Bit TTL8dB Typ360°
PS-360-90-2-202FActive1.7 GHz2.3 GHz2-Bit TTL5.5 dB360°
PS-360-DC-3-618Active6 GHz18 GHz8-Bit TTL12.0 dB Max358.6°
PS-4G10G-8B-SFFActive4 GHz10 GHz8-Bit TTL10.5 dB typ360°
PS-500M2G-10B-SFFActive0.5 GHz2 GHz10-Bit TTL13 dB Max360° typ
PS-85M4G-8B-SFFActive0.085 GHz4 GHz8-Bit TTL13 dB max.360° typ
PS-85M4G-9B-SFF- OPT30M400MPreliminary0.03 GHz0.4 GHz9-Bit TTL13 dB Max.360° typ
PS-255-2G18G-8B-SFFActive2 GHz18 GHz8-Bit TTL18 dB Typ255°
PS-360-2D42D5G-10- CD-SFFActive2.4 GHz2.5 GHz10-Bit TTL4dB Typical360°
PS-360-DC-1 Option 911Active9 GHz11 GHz8-Bit TTL12 dB Max358.6°
PS-504509-360- QQ1470Active5.4 GHz5.9 GHz5-Bit TTL6.0 dB Max360º
PS-2G18G-360-12D- OPT6G18GActive6 GHz18 GHz12 Bit TTL18.0 dB Max360°
PS-360-8G10G-8-SFF- LVT-15DPreliminary8.0 GHz10.0 GHzPositive Binary 8-Bit LVTTL10 dB Typ, 12 dB Max360° Min
PS-360-DC-3 OPTION 812-15DActive8.0 GHz12.0 GHz8-Bit TTL14 dB Max360° in 256 Steps
PS-3R5G6R5G-10B-SFFActive3.5 GHz6.5 GHz10-BIT TTL-360°
PS-85M4G-9B-SFFActive0.085 GHz4 GHz9-Bit TTL13 dB Max360° Typ
PDPS-3F-6-ALActive2.75 GHz3.25 GHz6-Bit TTL9.0 dB Typ354.2°
PS-12-360-QQ1470
Option 107
Active1.7 GHz1.7 GHz8-Bit TTL6.0 dB Max360° Typ
PS-200M4G-8B-SFFActive0.2 GHz4 GHz8-Bit TTL10.5 dB Typ360° Typ
PS-360-8D5G11G-8- SFF-LVT-15D *Active8.5 GHz11 GHz8-Bit TTL10 dB Typi360°
PS-200M10G-8B-SFFActive0.2 GHz10 GHz8-Bit TTL10.5 dB Typ360° Typ
PS-2G6G-8B-SFFActive2 GHz6 GHz8-Bit TTL10.5 dB Typ360°
PS-2G18G-360-8D- OPT212Active2 GHz12 GHz8-Bit TTL18.0 dB Max360°
PS-360-DC-3 OPTION 618-15D-10BITActive6 GHz18 GHz10-Bit TTL12.0 dB max360° Typ
PS-360-DC-3 OPTION 618-15D *Active6 GHz18 GHz8-Bit TTL12.0 dB Max360° typ
PS-360-3237-8-292FF *Active32 GHz37 GHz8-Bit TTL13.0 dB Typ358.59°
PS-500M2G-8B-SFF *Active0.5 GHz2 GHz8-Bit TTL13 dB Max360° - Measured
358.6°
PS-2G18G-360-8DActive2 GHz18 GHz8-Bit TTL18.0 dB Max360°
PS-360-8D5G11G-6-SFFPreliminary8.5 GHz11 GHzPositive Binary 6 Bit10 dB typ., 12 dB max.360° min.
