Description
Afin de réduire davantage la taille des dispositifs de communication sans fil et de permettre un placement plus flexible de l'antenne, Cirocomm a créé une solution d'antenne Bluetooth / WIFI / ZigBee. Grâce au conseil professionnel d'accès, les clients peuvent choisir la disposition du circuit en fonction du type d'antenne le plus approprié.

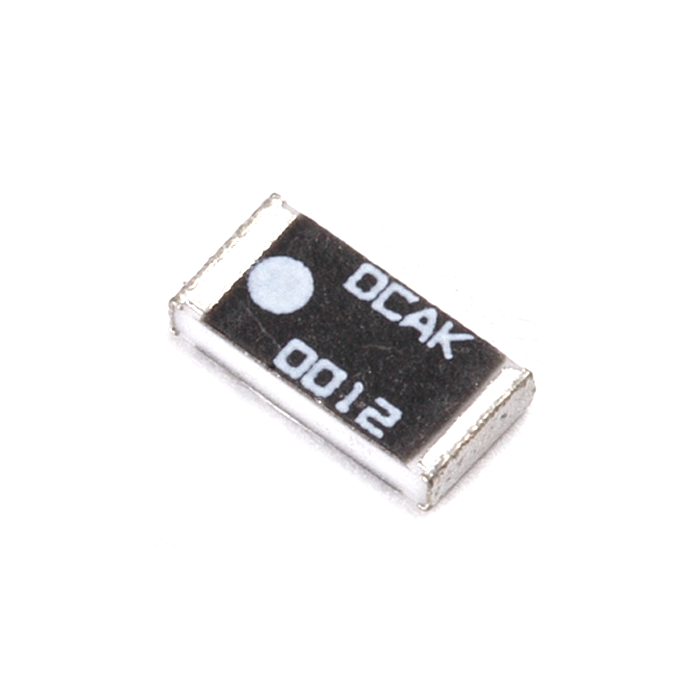

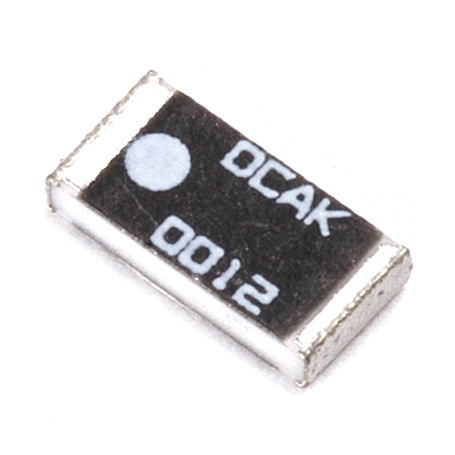

Antenne à puce 2,4GHz :
- Compacte, légère et rentable.
- Construction robuste et solide.
- Conception pour montage en surface (SMD) avec métallisation à faible perte facilement soudable.
- Gain élevé, directivité uniforme.
Références et spécifications :
| Refrence |
Working Frequency |
Bandwidth(Min.) |
LxWxH |
Return Loss |
Peak Gain |
VSWR |
Polarization |
Azimuth |
Impedance |
Operating Temperature |
| DCAK0012 |
2400-2500 MHz |
100 MHz |
3.05*1.60*0.55 mm |
﹤-10dB |
1.0 dBi (typ) |
2.0max |
Linear |
Omni-directional |
50 Ω |
-40℃~105℃ |
| DCAJ0S05 |
2400-2500 MHz |
85 MHz |
1.62*0.83*0.29 mm |
﹤-6.5dB |
1.7 dBi (typ) |
|
Linear |
Omni-directional |
50 Ω |
-40℃~110℃ |
| DCAJ0S08 |
2400-2500 MHz |
100 MHz |
1.70*0.93*0.75 mm |
﹤-10dB |
2.2 dBi (typ) |
|
Linear |
Omni-directional |
50 Ω |
-40℃~110℃ |
| DCAJ0S06 |
2400-2500 MHz |
85 MHz |
2.05*1.23*0.45 mm |
﹤-6.5dB |
1.7 dBi (typ) |
|
Linear |
Omni-directional |
50 Ω |
-40℃~110℃ |
| DCAJ0S07 |
2400-2500 MHz |
100 MHz |
2.05*1.28*1.23 mm |
﹤-6.5dB |
3.9 dBi (typ) |
|
Linear |
Omni-directional |
50 Ω |
-40℃~110℃ |
| DCAJ0S09 |
2400-2500 MHz |
100 MHz |
3.23*1.66*0.45 mm |
﹤-6.5dB |
1.7 dBi (typ) |
|
Linear |
Omni-directional |
50 Ω |
-40℃~110℃ |
| DCAJ0S10 |
2400-2500 MHz |
100 MHz |
3.23*1.66*1.23 mm |
﹤-6.5dB |
2.7 dBi (typ) |
|
Linear |
Omni-directional |
50 Ω |
-40℃~110℃ |
| DCAJ0S11 |
2400-2500 MHz |
100 MHz |
5.02*2.12*1.03 mm |
﹤-10 dB |
3.4 dBi (typ) |
|
Linear |
Omni-directional |
50 Ω |
-40℃~110℃ |
| PCAK0001-10 |
2400-2500 MHz |
＞100MHz @ -10dB |
9.0*1.6*1.6 |
﹤-15dB @ Center Frequency |
2.0 dBi (typ) |
|
Linear |
Omni-directional |
50 Ω |
-40℃~105℃ |
| PCAK0000-12 |
2400-2500 MHz |
|
5.0*2.0*1.0 |
﹤-10dB |
1.0 dBi (typ) |
2.0max (center frequency) |
Linear |
Omni-directional |
50 Ω |
-40℃~105℃ |
| PCAK0000-14 |
2400-2500 MHz |
100 MHz |
5.0*2.0*1.0 mm |
﹤-10dB |
1.0 dBi (typ) |
2.0max |
Linear |
Omni-directional |
50 Ω |
-40℃~105℃ |
