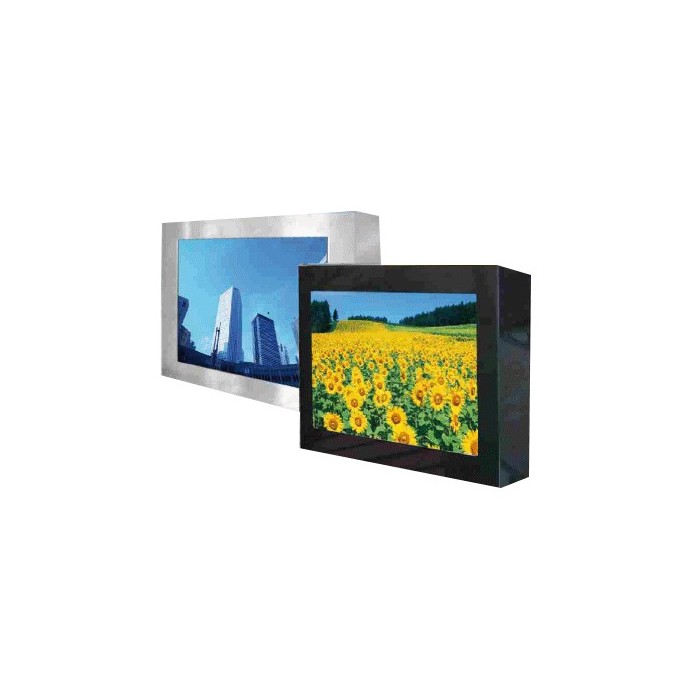

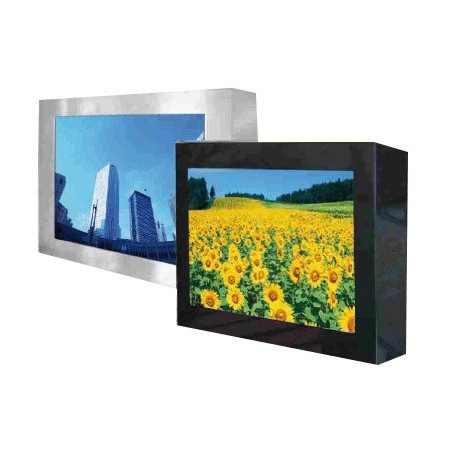

Full IP65 / NEMA 4 chassis 19” : R19L300-65M1 | WINMATE

• Screen Size : 19"
• Display Resolution (pixel) : 1280x1024
• Contrast Ratio : 800:1 (typ.)
• Brightness (CD/m^2) : 300 (typ.)

Specification
• Model Name : R19L300-65M1
• Screen Size : 19"
• Active Display Area (mm) : 376.32 (H) x 301.06 (V)
• Pixel Pitch (mm) : 0.294 (H) x 0.294 (V)
• Display Resolution (pixel) : 1280x1024
• Contrast Ratio : 800:1 (typ.)
• Display Color : 16.7M (8bits/colors)
• Brightness (CD/m^2) : 300 (typ.)
• Viewing Angles (CR >=10) : -80~80 (H); -80~80 (V)
• Synchronization Range_Horizontal / Vertical : 31.5~80.0KHz / 60~75Hz
• Recommended Resolution : 1280x1024@60HZ,75HZ
• Signal Connector : 15 pin D-sub
• I/O : 3 pin Power cable(IP65 connector); 10 pin VGA cable (IP65 connector); Optional 10 pin RS232 or USB cable(IP65 connector);
• Power Source : DC12V in
• Power Consumption : 41 W typical, normal operation
• Power Management : VESA DPMS Compliant
• Plug & Play : VESA DDC 1/2B
• Video Input (optional) : yes
• Optional Touch Screen : Resistive, Capacitive

*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
