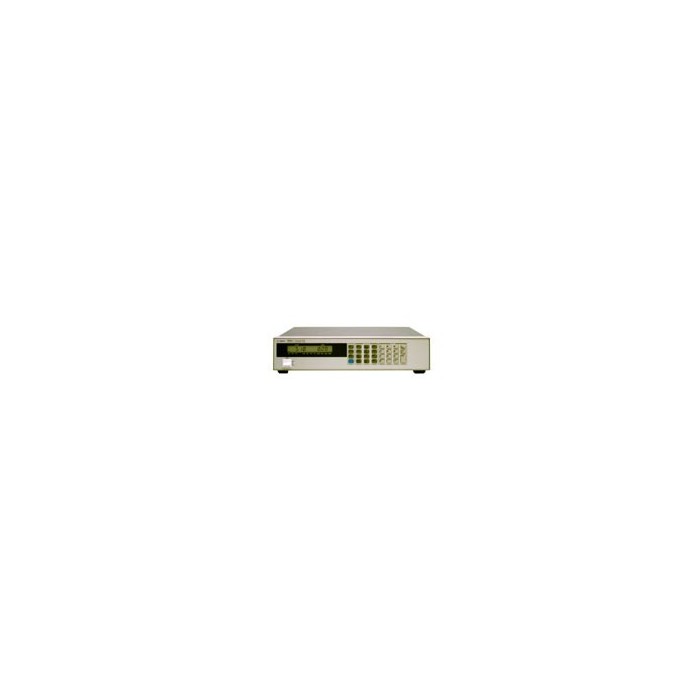

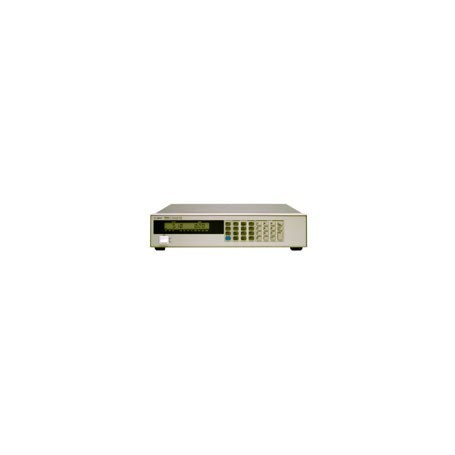

Charge électronique 250W : 6063B | KEYSIGHT TECHNOLOGIES

Output Ratings Amperes: 0 to 10 A Volts: 3 to 240 V Maximum power: (at 40° C) 250 W Constant Current Mode Ranges: 0 to 1 A, 0 to 10 A Accuracy: 0.15% +/-10 mA Regulation: 8 mA Constant Voltage Mode Accuracy: 0.12% +/-120 mV Regulation (w/remote sense): 10 mV Constant Resistance...

Téléchargement

Description

Output Ratings

  • Amperes: 0 to 10 A
  • Volts: 3 to 240 V
  • Maximum power: (at 40° C) 250 W

Constant Current Mode

  • Ranges: 0 to 1 A, 0 to 10 A
  • Accuracy: 0.15% +/-10 mA
  • Regulation: 8 mA

Constant Voltage Mode

  • Accuracy: 0.12% +/-120 mV
  • Regulation (w/remote sense): 10 mV

Constant Resistance Mode 0.20 to 24.0 Ohms

  • Ranges: 24 to 10,000 Ohms / 240 to 50,000 Ohms
  • Accuracy: 24 Ohms: 0.8% +/-200 mOhms (with ³1 A at input) / 10 KOhms/: 0.3% +/-0.3 mS (with ³24 V at input) / 50 KOhms: 0.3% +/-0.3 mS (with ³24 V at input)

Fiche technique (peut contenir des options)

Puissances0 à 400 W
