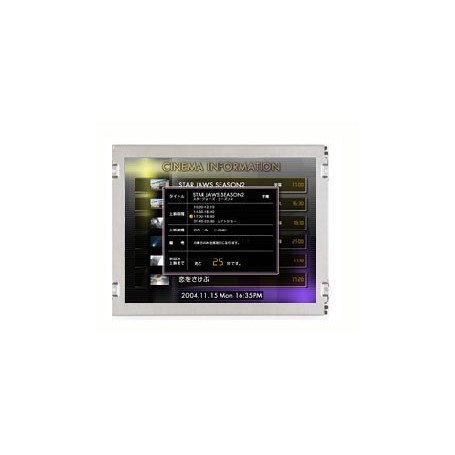

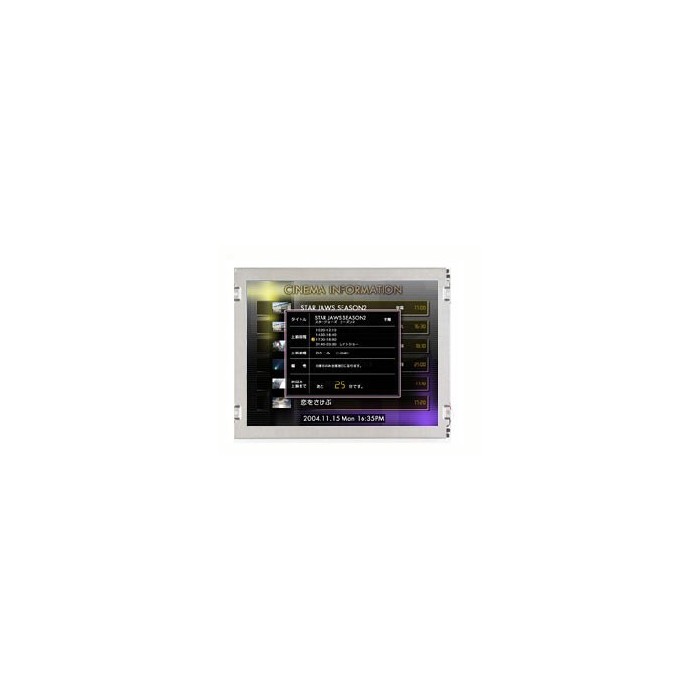

Description
Specifications :
- Screen Size : 16.6cm (6.5 inch)
- Number of Pixels : 640 × 480 Pixel
- Pitch (H, V/mm) : 0.207 × 0.207
- Brightness : 700cd/m2
- Contrast Ratio : 600:1
- Electrical Interface : LVDS
- Power Supply Voltage : 3.3V
- Viewing Angle (°) : 80/80 (R/L) 80/60 (U/D)*
- Number of Colors : 262k/16.77M (6-bit/8-bit)
- Module Size (W x H x D) : 154.0 × 121.0 × 11.0mm
- Module Mass : 185g
- Backlight Unit : LED, Edge-light replaceable
- Optimum Viewing Angle(Contrast Ratio) : 6 o'clock*
* By Reverse Scanning direction, the direction of the viewing angle can be changed to suit Optimum Viewing Angle.
