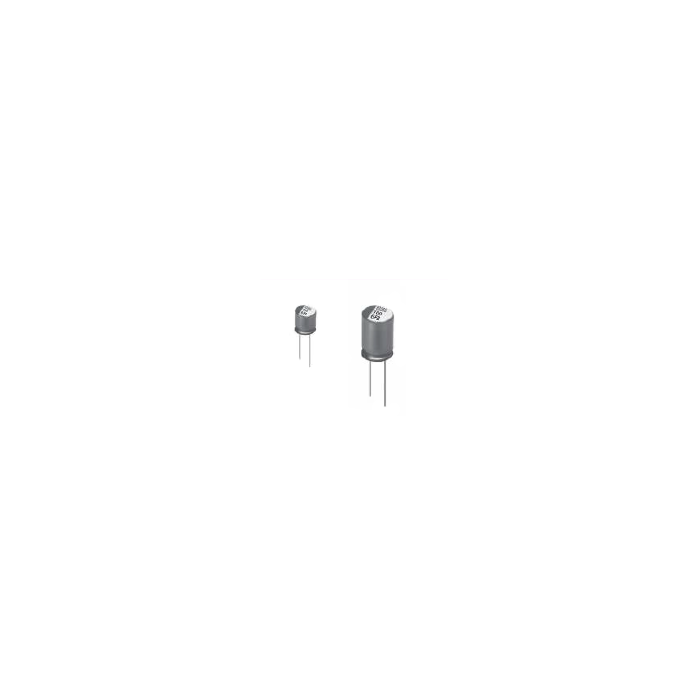

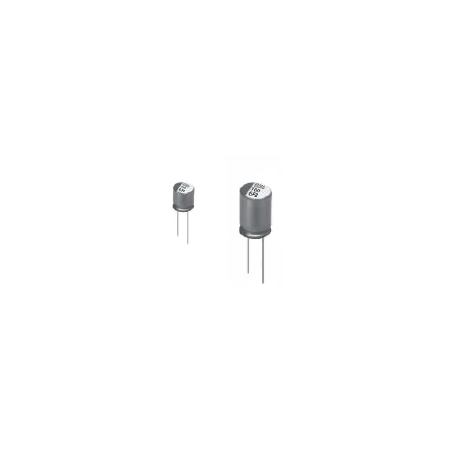

Condensateur Polymère Radial : Série FB Agrandir l'image

Condensateur Polymère Radial : Série FB | SAMWHA

Conformité à la directive RoHS, faible ESR

Plus de détails

Livre blanc : Supercondensateurs pour RTC Livre Blanc : Comparaison des condensateurs

Téléchargement

Description

Caractéristiques techniques :

  • Faible ESR
  • Courant à forte ondulation
  • Durée de vie : 2000 heures à 105° C
  • Conformité à la directive RoHS

Spécifications :

Item Characteristics
Operating temperature range  -55 -  +105° C
Leakage current max. Less than or equal to the value of Table 1
Capacitance tolerance ±20% at 120Hz, 20°C
Dissipation factor max. Less than or equal to the value of Table1
ESR Less than or equal to the value of Table1
Temperature characteristics (lmpedance ratio at 100kHz) Z-55°C / Z+20' C z  +  105°c  t z +20°c
0.75 - 1.25 0.75      -   1.25
Load life
(after application of the rated voltage for 2000 hours al 105'C, ln case of 25WV is applied 20V)
Leakage current Less than specified value
Capacitance change Within  ± 20% of initial value
tanẟ Less than 150% of specified value
Resistance to soldering heat (Refer to Pa e 37 for soldering recommendation) Leakage current Less than specified value
Capacitance change Within  ± 20% of initial value
tanẟ Less than 150% of specified value
