Description

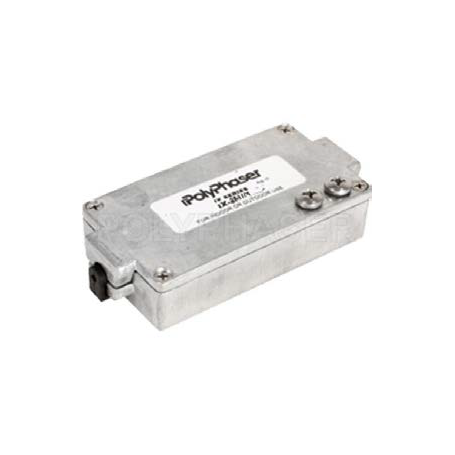

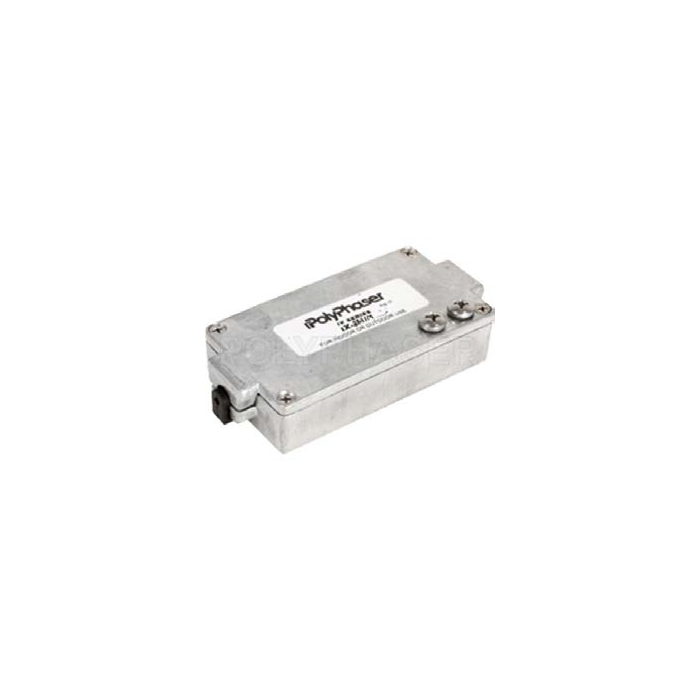

La série IX de PolyPhaser est une gamme complète de parafoudres de données utilisant des conceptions optimisées pour les protocoles de données synchrones les plus courants. Ces dispositifs offrent une protection efficace contre les intempéries pour un maximum de cinq paires torsadées, assurant la sécurité de vos équipements critiques tout en maintenant l'intégrité du signal.
Avantages :
- Protection transparente pour le trafic réseau sans dégradation des performances
- Sécurisation des équipements essentiels contre la foudre et les surtensions transitoires
- Installation flexible avec kit de montage sur poteau disponible
- Boîtier étanche IP67 pour une résistance maximale aux conditions extérieures
- Large gamme de configurations pour s'adapter à tous types d'installations
- Conformité aux standards de sécurité les plus exigeants
Caractéristiques Principales :
- Certification UL 497B et conformité GR-1089
- Modules de protection données optimisés pour Ethernet, PoE, RS-232, RS-422, RS-485, T1/E1 et POTS
- Modules de protection DC pour tensions 12Vdc, 24Vdc, 48Vdc, 56Vdc et 72Vdc
- Options de terre isolée disponibles
- Boîtier résistant aux intempéries IP67
- Certification RoHS (respect des normes environnementales)
- Protection jusqu'à 5 paires torsadées
Applications :
- Réseaux Ethernet 10/100Base-T et Gigabit
- Systèmes Power over Ethernet (PoE)
- Communications série RS-232, RS-422, RS-485
- Lignes T1/E1 et systèmes téléphoniques POTS
- Équipements de télécommunications extérieurs
- Infrastructure réseau en environnement industriel
- Systèmes de surveillance et de sécurité
- Installations de radiocommunications
Spécifications et modèles disponibles :
| Modèle | Numéro produit | Type de produit | Application | Nombre de paires/Ampérage | Tension/Type | Caractéristiques |
|---|
| DAS-TP-0001 |
TP-0001 |
Surge Protector |
AISG + 18Vdc |
2 paires |
1 Pair AISG, 1 Pair 18Vdc |
Outdoor, 8-Pin |
| IS-12VDC-30A-FG |
IS-12VDC-30A-FG |
DC Lightning Surge Protector |
DC Power |
30A |
12Vdc |
Floating Ground |
| IS-12VDC-30A-NG |
IS-12VDC-30A-NG |
DC Lightning Surge Protector |
DC Power |
30A |
12Vdc |
Negative Ground |
| IS-12VDC-50A-NG |
IS-12VDC-50A-NG |
DC Lightning Surge Protector |
DC Power |
50A |
12Vdc |
Negative Ground |
| IS-24VDC-30A-FG |
IS-24VDC-30A-FG |
DC Lightning Surge Protector |
DC Power |
30A |
24Vdc |
Floating Ground |
| IS-RCT |
— |
DC Lightning Surge Protector |
DC Power |
8 Lines |
60Vdc |
Multi-line |
| IX-10DC12 |
IX-10DC12 |
Surge Protector Module |
DC Power |
10 modules |
12 Vdc |
Pack de 10 modules |
| IX-10DC24 |
IX-10DC24 |
Surge Protector Module |
DC Power |
10 modules |
24 Vdc |
Pack de 10 modules |
| IX-10DC24-IG |
IX-10DC24-IG |
Surge Protector Module |
DC Power |
10 paires |
24Vdc |
Isolated DC Ground |
| IX-10L |
RS-232 |
Surge Protector Module |
TE/E1, RS-232/422/485 |
10 modules |
TE/E1, RS-232/422/485 |
Pack de 10 modules |
| IX-10M |
RS-232 |
Surge Protector Module |
RS-232 |
10 modules |
RS-232 |
Pack de 10 modules |
| IX-10P |
IX-10P |
Surge Protector Module |
POTS |
10 modules |
POTS |
Pack de 10 modules |
| IX-10T |
IX-10T |
Surge Protector Module |
POTS, xDSL |
10 paires |
POTS, xDSL |
UL 497B, Pack de 10 |
| IX-1DC48 |
DC48 |
Surge Protector |
DC Power |
1 paire |
48Vdc |
Outdoor, UL 497B |
| IX-1H |
— |
Surge Protector |
100Base-T Ethernet |
1 paire |
100Base-T |
Outdoor, UL 497B |
| IX-1L1DC24-IG |
RS-232 |
Surge Protector |
T1/E1, RS-232/422/485 + DC |
2 paires |
T1/E1 + 24Vdc |
Outdoor, Isolated Ground |
| IX-1M |
RS-232 |
Surge Protector |
RS-232 |
1 paire |
RS-232 |
Outdoor, UL 497B |
| IX-1M1DC24 |
RS-232 |
Surge Protector |
RS-232 + DC |
2 paires |
RS-232 + 24Vdc |
Outdoor, UL 497B |
| IX-1P |
— |
Surge Protector |
POTS |
1 paire |
POTS |
Outdoor, UL 497B |
| IX-1T |
— |
Surge Protector |
POTS, xDSL |
1 paire |
POTS, xDSL |
Outdoor, UL 497B |
| IX-2DC12 |
DC12 |
Surge Protector |
DC Power |
2 paires |
12Vdc |
Outdoor, UL 497B |
| IX-2DC24 |
DC24 |
Surge Protector |
DC Power |
2 paires |
24Vdc |
Outdoor, UL 497B |
| IX-2DC48 |
DC48 |
Surge Protector |
DC Power |
2 paires |
48Vdc |
Outdoor, UL 497B |
| IX-2H |
— |
Surge Protector |
10/100Base-T |
2 paires |
10/100Base-T |
Outdoor, UL 497B |
| IX-2H1DC24-IG |
DC24-IG |
Surge Protector |
100Base-T + DC |
3 paires |
100Base-T + 24Vdc |
Outdoor, Isolated Ground |
| IX-2H1DC48 |
DC48 |
Surge Protector |
100Base-T + DC |
3 paires |
100Base-T + 48Vdc |
Outdoor |
| IX-2H1DC48-IG |
DC48-IG |
Surge Protector |
100Base-T + DC |
3 paires |
100Base-T + 48Vdc |
Outdoor, Isolated Ground |
| IX-2H1DC56-IG |
DC56-IG |
Surge Protector |
100Base-T + DC |
3 paires |
100Base-T + 56Vdc |
Outdoor, Isolated Ground |
| IX-2H1DC56-IG/W |
UL497B |
Surge Protector |
100Base-T + DC |
2 paires |
100Base-T + 56Vdc |
Outdoor, Wall Mount |
| IX-2H1L1DC48 |
RS-232 |
Surge Protector |
100Base-T + T1/E1 + DC |
4 paires |
100Base-T + T1/E1 + 48Vdc |
Outdoor |
| IX-2H1L1DC48-IG |
RS-232 |
Surge Protector |
100Base-T + T1/E1 + DC |
4 paires |
100Base-T + T1/E1 + 48Vdc |
Outdoor, Isolated Ground |
| IX-2H2DC24 |
DC24 |
Surge Protector |
100Base-T + DC |
4 paires |
100Base-T + 2×24Vdc |
Outdoor |
| IX-2H2DC48 |
DC48 |
Surge Protector |
100Base-T + DC |
4 paires |
100Base-T + 2×48Vdc |
Outdoor |
| IX-2L |
RS-232 |
Surge Protector |
T1/E1, RS-232/422/485 |
2 paires |
T1/E1, RS-232/422/485 |
Outdoor, UL 497B |
| IX-2L1DC12 |
RS-232 |
Surge Protector |
T1/E1 + DC |
3 paires |
T1/E1 + 12Vdc |
Outdoor |
| IX-2M |
RS-232 |
Surge Protector |
RS-232 |
2 paires |
RS-232 |
Outdoor, UL 497B |
|
| IX-2M2DC24 |
RS-232 |
Surge Protector |
RS-232 + DC |
4 paires |
RS-232 + 2×24Vdc |
Outdoor, UL 497B |
| IX-2M2DC48 |
RS-232 |
Surge Protector |
RS-232 + DC |
4 paires |
RS-232 + 2×48Vdc |
Outdoor, UL 497B |
| IX-2P |
— |
Surge Protector |
POTS |
2 paires |
POTS |
Outdoor, UL 497B |
| IX-2T |
— |
Surge Protector |
Dual Telco Trunk |
2 paires |
Dual Telco |
Outdoor, UL 497B |
| IX-3DC24 |
DC24 |
Surge Protector |
DC Power |
3 paires |
24Vdc |
Outdoor, UL 497B |
| IX-3H1DC48 |
DC48 |
Surge Protector |
100Base-T + DC |
4 paires |
3×100Base-T + 48Vdc |
Outdoor |
| IX-3L |
RS-232 |
Surge Protector |
T1/E1, RS-232/422/485 |
3 paires |
T1/E1, RS-232/422/485 |
Outdoor, UL 497B |
| IX-3L1DC24 |
RS-232 |
Surge Protector |
T1/E1 + DC |
4 paires |
3×T1/E1 + 24Vdc |
Outdoor |
| IX-3L2DC48 |
RS-232 |
Surge Protector |
T1/E1 + DC |
5 paires |
3×T1/E1 + 2×48Vdc |
Outdoor |
| IX-3M1DC48 |
RS-232 |
Surge Protector |
RS-232 + DC |
4 paires |
3×RS-232 + 48Vdc |
Outdoor, UL 497B |
| IX-4DC24 |
DC24 |
Surge Protector |
DC Power |
4 paires |
24Vdc |
Outdoor, UL 497B |
| IX-4H |
— |
Surge Protector |
100Base-T Ethernet |
4 paires |
100Base-T |
Outdoor, UL 497B |
| IX-4L |
RS-232 |
Surge Protector |
T1/E1, RS-232/422/485 |
4 paires |
T1/E1, RS-232/422/485 |
Outdoor, UL 497B |
| IX-4M |
RS-232 |
Surge Protector |
RS-232 |
4 paires |
RS-232 |
Outdoor, UL 497B |
| IX-50DC24 |
IX-50DC24 |
Surge Protector Module |
DC Power |
50 modules |
24 Vdc |
Pack de 50 modules |
| IX-50H |
IX-50H |
Surge Protector Module |
100Base-T Ethernet |
50 paires |
100Base-T |
UL 497B, Pack de 50 |
| IX-50L |
RS-232 |
Surge Protector Module |
T1/E1, RS-232/422/485 |
50 paires |
T1/E1, RS-232/422/485 |
UL 497B, Pack de 50 |
| IX-50M |
RS-232 |
Surge Protector Module |
RS-232 |
50 paires |
RS-232 |
UL 497B, Pack de 50 |
| IX-50T |
IX-50T |
Surge Protector Module |
POTS, xDSL |
50 paires |
POTS, xDSL |
UL 497B, Pack de 50 |
| IX-5H |
— |
Surge Protector |
100Base-T Ethernet |
5 paires |
100Base-T |
Outdoor, UL 497B |
| IX-5L |
RS-232 |
Surge Protector |
T1/E1, RS-232/422/485 |
5 paires |
T1/E1, RS-232/422/485 |
Outdoor, UL 497B |
| IX-5T/W |
— |
Surge Protector |
POTS, xDSL |
5 paires |
POTS, xDSL |
Outdoor, Wall Mount, UL 497B |
| IX-5T |
— |
Surge Protector |
POTS, xDSL |
5 paires |
POTS, xDSL |
Outdoor, UL 497B |
| IXG-05 |
IXG-05 |
Surge Protector |
Gigabit Ethernet, PoE |
4 paires |
Gigabit Ethernet, PoE |
Outdoor, UL 497B |
