Description

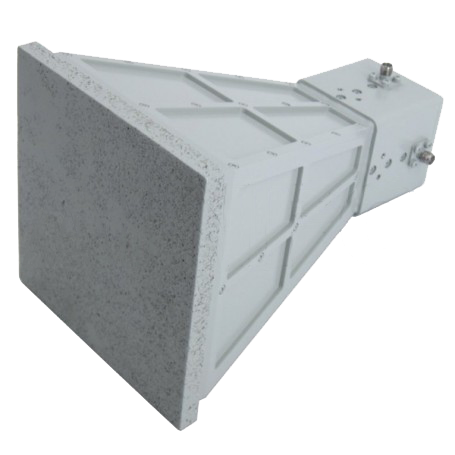

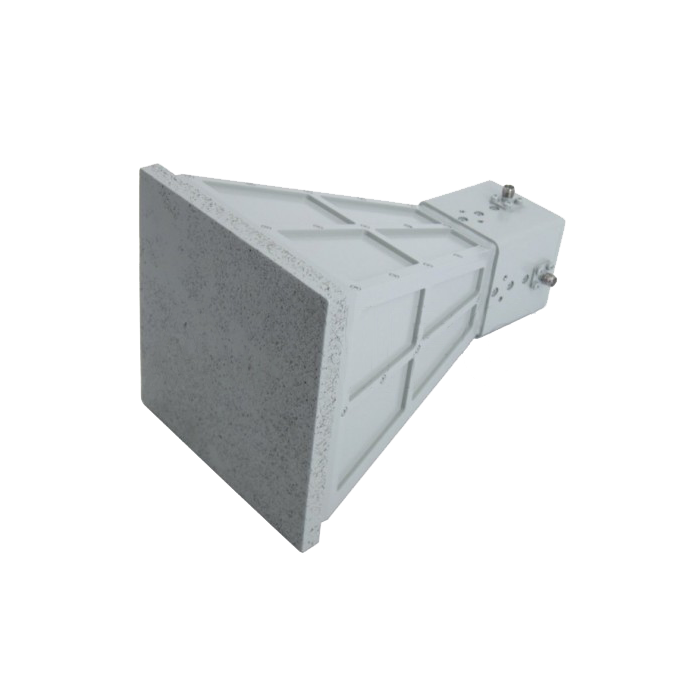

Construit en aluminium léger et résistant à la corrosion, le cornet est livré avec un radôme étanche spécialement conçu pour offrir une excellente protection contre la pluie et la poussière, mais avec très peu de perte sur toute la bande de fréquence de fonctionnement. Cette antenne cornet a une double polarisation linéaire et convient parfaitement aux tests EMI, à la radiogoniométrie, à la surveillance, aux mesures de gain et de diagramme d'antenne et à d'autres applications.
Références et spécifications :
| Model |
Freq. Min(GHz) |
Freq. Max(GHz) |
Gain, Typ(dB) |
Pol. |
Iso., Min(dB) |
VSWR, Typ |
Connector |
Connector Gender |
| LB-SJ-10100-SF |
1 |
10 |
10 |
Dual Linear |
20 |
1.5:1 |
SMA |
Female |
| LB-SJ-10100-SFSPO |
1 |
10 |
10 |
Dual Linear |
20 |
1.5:1 |
SMA |
Female |
| LB-SJ-10100-NF |
1 |
10 |
10 |
Dual Linear |
20 |
1.5:1 |
N Type |
Female |
| LB-SJ-10100-NFSPO |
1 |
10 |
10 |
Dual Linear |
20 |
1.5:1 |
N Type |
Female |
| LB-SJ-20180-SF |
2 |
18 |
14 |
Dual Linear |
30 |
1.5:1 |
SMA |
Female |
| LB-SJ-20180-SFSPO |
2 |
18 |
14 |
Dual Linear |
30 |
1.5:1 |
SMA |
Female |
| LB-SJ-20180-NF |
2 |
18 |
14 |
Dual Linear |
30 |
1.5:1 |
N Type |
Female |
| LB-SJ-30400-KF |
3 |
40 |
12 |
Dual Linear |
20 |
1.5:1 |
2.92mm(K) |
Female |
| LB-SJ-30400-KFSPO |
3 |
40 |
12 |
Dual Linear |
20 |
1.5:1 |
2.92mm(K) |
Female |
| LB-SJ-30400-2.4F |
3 |
40 |
12 |
Dual Linear |
20 |
1.5:1 |
2.4mm |
Female |
| LB-SJ-30400-2.4FSPO |
3 |
40 |
12 |
Dual Linear |
20 |
1.5:1 |
2.4mm |
Female |
| LB-SJ-40180-SF |
4 |
18 |
15 |
Dual Linear |
20 |
2.0:1 |
SMA |
Female |
| LB-SJ-40180-SFSPO |
4 |
18 |
15 |
Dual Linear |
20 |
2.0:1 |
SMA |
Female |
| LB-SJ-40400-KF |
4 |
40 |
12 |
Dual Linear |
20 |
1.5:1 |
2.92mm(K) |
Female |
| LB-SJ-40400-KFSPO |
4 |
40 |
12 |
Dual Linear |
20 |
1.5:1 |
2.92mm(K) |
Female |
| LB-SJ-40400-2.4F |
4 |
40 |
12 |
Dual Linear |
20 |
1.5:1 |
2.4mm |
Female |
| LB-SJ-40400-2.4FSPO |
4 |
40 |
12 |
Dual Linear |
20 |
1.5:1 |
2.4mm |
Female |
| LB-SJ-50500-2.4F |
5 |
50 |
12 |
Dual Linear |
20 |
1.5:1 |
2.4mm |
Female |
| LB-SJ-50500-1.85F |
5 |
50 |
12 |
Dual Linear |
20 |
1.5:1 |
1.85mm(V) |
Female |
| LB-SJ-60180-SF |
6 |
18 |
12 |
Dual Linear |
30 |
2.0:1 |
SMA |
Female |
| LB-SJ-60180-SFSPO |
6 |
18 |
12 |
Dual Linear |
30 |
2.0:1 |
SMA |
Female |
| LB-SJ-60245-SF |
6 |
24.5 |
14 |
Dual Linear |
30 |
2.0:1 |
SMA |
Female |
| LB-SJ-60245-SFSPO |
6 |
24.5 |
14 |
Dual Linear |
30 |
2.0:1 |
SMA |
Female |
| LB-SJ-180400-KF |
18 |
40 |
15 |
Dual Linear |
20 |
2.0:1 |
2.92mm(K) |
Female |
| LB-SJ-180400-KFSPO |
18 |
40 |
15 |
Dual Linear |
20 |
2.0:1 |
2.92mm(K) |
Female |
| LB-SJ-180400-2.4F |
18 |
40 |
15 |
Dual Linear |
20 |
2.0:1 |
2.4mm |
Female |
| LB-SJ-180400-2.4FSPO |
18 |
40 |
15 |
Dual Linear |
20 |
2.0:1 |
2.4mm |
Female |
| LB-SJ-180400L-KF |
18 |
40 |
8 |
Dual Linear |
25 |
2.0:1 |
2.92mm(K) |
Female |
| LB-SJ-180400L-2.4F |
18 |
40 |
8 |
Dual Linear |
25 |
2.0:1 |
2.4mm |
Female |
| LB-SJ-180435-2.4F |
18 |
43.5 |
15 |
Dual Linear |
20 |
2.0:1 |
2.4mm |
Female |
| LB-SJ-180435-2.4FSPO |
18 |
43.5 |
15 |
Dual Linear |
20 |
2.0:1 |
2.4mm |
Female |
| LB-SJ-180500-2.4F |
18 |
50 |
15 |
Dual Linear |
25 |
1.50:1 |
2.4mm |
Female |
| LB-SJ-180500-1.85F |
18 |
50 |
15 |
Dual Linear |
25 |
1.50:1 |
1.85mm(V) |
Female |
| LB-SJ-180500L-2.4F |
18 |
50 |
8 |
Dual Linear |
20 |
2.0:1 |
2.4mm |
Female |
| LB-SJ-180540-2.4F |
18 |
54 |
14 |
Dual Linear |
25 |
1.5:1 |
2.4mm |
Female |
| LB-SJ-180540-1.85F |
18 |
54 |
14 |
Dual Linear |
25 |
1.5:1 |
1.85mm(V) |
Female |
| LB-SJ-180540B-2.4F |
18 |
54 |
15 |
Dual Linear |
25 |
1.50:1 |
2.4mm |
Female |
| LB-SJ-180540BL-2.4F |
18 |
54 |
8 |
Dual Linear |
20 |
2.0:1 |
2.4mm |
Female |
