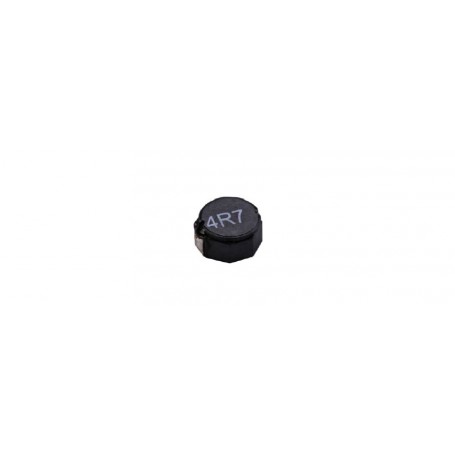

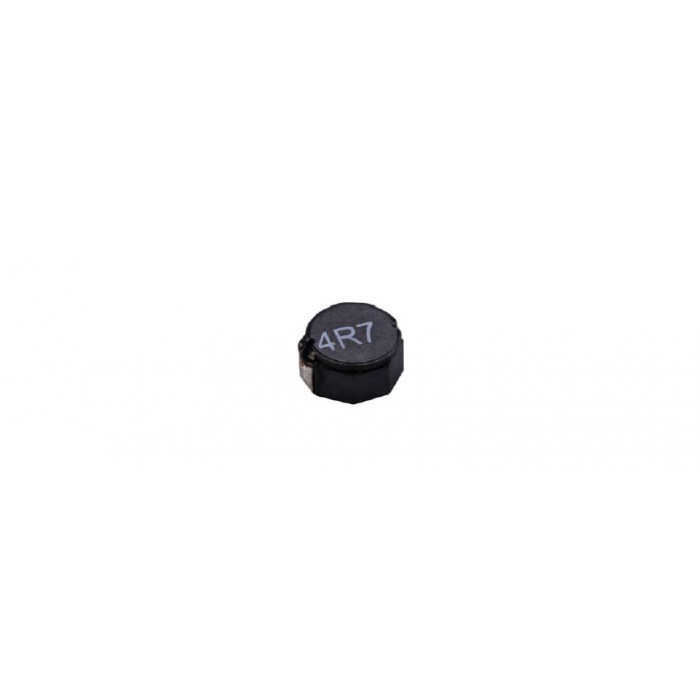

Inductance de puissance CMS (Blindée) : Série SRDH Agrandir l'image

Inductance de puissance CMS (Blindée) : Série SRDH | VIKING TECH

Inductance de puissance CMS blindée, compacte, à faible profil, avec un faible DCR et un courant élevé, avec un blindage magnétique contre la rédiffusion.

Plus de détails

Téléchargement

Description

Caractéristiques :

  • Construction avec blindage magnétique.
  • Conformité ROHS.
  • Applications
  • TV LCD.
  • Convertisseurs DC à DC.
  • PC portable.
  • Gammes d'inductance et de courant nominal :
    • SDRH0830 1.0 ~ 100μH, 6.5 ~ 0.75 A
    • SDRH0840 1,8 ~ 100μH, 6,5 ~ 0,88 A
    • SDRH0845 1,0 ~ 100μH, 8,5 ~ 1,30 A
  • Équipement de test :
    • L : Compteur LCR HP4284A
    • DCR : Milli-ohm mètre
    • Spécifications électriques à 25°C

Caractéristiques :

  • Courant DC nominal : Le courant lorsque l'inductance devient 35% inférieure à sa valeur initiale.
  • Température de fonctionnement : -40 ~ 125°C

Inductance de puissance CMS blindée, compacte, à faible profil, avec un faible DCR et un courant élevé, avec un blindage magnétique contre la rédiffusion.

Références et spécifications :

Image Size Tolerance Inductance (μH) Test Condition DCR (Ω) max. IDC (A)
Shielded SMD Power Inductor (SDRH Series SDRH0830NT1R0) 830 ±30% 1 100KHz, 0.25V 11 6.5
Shielded SMD Power Inductor (SDRH Series SDRH0830NT2R5) 830 ±30% 2.5 100KHz, 0.25V 15.6 4.5
Shielded SMD Power Inductor (SDRH Series SDRH0830NT3R3) 830 ±30% 3.3 100KHz, 0.25V 18.2 4
Shielded SMD Power Inductor (SDRH Series SDRH0830NT4R7) 830 ±30% 4.7 100KHz, 0.25V 24.7 3.4
Shielded SMD Power Inductor (SDRH Series SDRH0830NT7R3) 830 ±30% 7.3 100KHz, 0.25V 39 2.8
Shielded SMD Power Inductor (SDRH Series SDRH0830NT100) 830 ±30% 10 100KHz, 0.25V 47 2.5
Shielded SMD Power Inductor (SDRH Series SDRH0830NT150) 830 ±30% 15 100KHz, 0.25V 69 1.9
Shielded SMD Power Inductor (SDRH Series SDRH0830NT220) 830 ±30% 22 100KHz, 0.25V 99 1.6
Shielded SMD Power Inductor (SDRH Series SDRH0830NT330) 830 ±30% 33 100KHz, 0.25V 156 1.3
Shielded SMD Power Inductor (SDRH Series SDRH0830NT470) 830 ±30% 47 100KHz, 0.25V 195 1.15
Shielded SMD Power Inductor (SDRH Series SDRH0830NT680) 830 ±30% 68 100KHz, 0.25V 286 0.92
Shielded SMD Power Inductor (SDRH Series SDRH0830NT101) 830 ±30% 100 100KHz, 0.25V 430 0.75
Shielded SMD Power Inductor (SDRH Series SDRH0840NT1R8) 840 ±30% 1.8 100KHz, 0.1V 15.6 7
Shielded SMD Power Inductor (SDRH Series SDRH0840NT2R5) 840 ±30% 2.5 100KHz, 0.1V 17.5 6.5
Shielded SMD Power Inductor (SDRH Series SDRH0840NT3R5) 840 ±30% 3.5 100KHz, 0.1V 24 5
Shielded SMD Power Inductor (SDRH Series SDRH0840NT4R7) 840 ±30% 4.7 100KHz, 0.1V 29 4.6
Shielded SMD Power Inductor (SDRH Series SDRH0840NT6R0) 840 ±30% 6 100KHz, 0.1V 32 4.2
Shielded SMD Power Inductor (SDRH Series SDRH0840NT100) 840 ±30% 10 100KHz, 0.1V 48 3
Shielded SMD Power Inductor (SDRH Series SDRH0840NT150) 840 ±30% 15 100KHz, 0.1V 67 2.75
Shielded SMD Power Inductor (SDRH Series SDRH0840NT220) 840 ±30% 22 100KHz, 0.1V 105 2.3
Shielded SMD Power Inductor (SDRH Series SDRH0840NT330) 840 ±30% 33 100KHz, 0.1V 157 1.75
Shielded SMD Power Inductor (SDRH Series SDRH0840NT470) 840 ±30% 47 100KHz, 0.1V 189 1.52
Shielded SMD Power Inductor (SDRH Series SDRH0840NT680) 840 ±30% 68 100KHz, 0.1V 290 1.3
Shielded SMD Power Inductor (SDRH Series SDRH0840NT101) 840 ±30% 100 100KHz, 0.1V 410 1.05
Shielded SMD Power Inductor (SDRH Series SDRH0845NT1R0) 845 ±30% 1 100KHz, 0.1V 9.5 9
Shielded SMD Power Inductor (SDRH Series SDRH0845NT1R2) 845 ±30% 1.2 100KHz, 0.1V 12.2 8
Shielded SMD Power Inductor (SDRH Series SDRH0845NT1R5) 845 ±30% 1.5 100KHz, 0.1V 13 7.8
Shielded SMD Power Inductor (SDRH Series SDRH0845NT2R0) 845 ±30% 2 100KHz, 0.1V 14 7
Shielded SMD Power Inductor (SDRH Series SDRH0845NT2R2) 845 ±30% 2.2 100KHz, 0.1V 15 6.8
Shielded SMD Power Inductor (SDRH Series SDRH0845NT2R5) 845 ±30% 2.5 100KHz, 0.1V 16 6.6
Shielded SMD Power Inductor (SDRH Series SDRH0845NT3R3) 845 ±30% 3.3 100KHz, 0.1V 17 6.2
Shielded SMD Power Inductor (SDRH Series SDRH0845NT3R9) 845 ±30% 3.9 100KHz, 0.1V 19 5.9
Shielded SMD Power Inductor (SDRH Series SDRH0845NT4R7) 845 ±30% 4.7 100KHz, 0.1V 22 5.6
Shielded SMD Power Inductor (SDRH Series SDRH0845NT6R8) 845 ±30% 6.8 100KHz, 0.1V 25 4.4
Shielded SMD Power Inductor (SDRH Series SDRH0845NT100) 845 ±30% 10 100KHz, 0.1V 36 4
Shielded SMD Power Inductor (SDRH Series SDRH0845NT150) 845 ±30% 15 100KHz, 0.1V 53 2.9
Shielded SMD Power Inductor (SDRH Series SDRH0845NT180) 845 ±30% 18 100KHz, 0.1V 72 2.7
Shielded SMD Power Inductor (SDRH Series SDRH0845NT220) 845 ±30% 22 100KHz, 0.1V 75 2.6
Shielded SMD Power Inductor (SDRH Series SDRH0845NT270) 845 ±30% 27 100KHz, 0.1V 100 2.25
Shielded SMD Power Inductor (SDRH Series SDRH0845NT330) 845 ±30% 33 100KHz, 0.1V 125 2.2
Shielded SMD Power Inductor (SDRH Series SDRH0845NT470) 845 ±30% 47 100KHz, 0.1V 150 1.8
Shielded SMD Power Inductor (SDRH Series SDRH0845NT680) 845 ±30% 68 100KHz, 0.1V 240 1.5
Shielded SMD Power Inductor (SDRH Series SDRH0845NT101) 845 ±30% 100 100KHz, 0.1V 360 1.3
