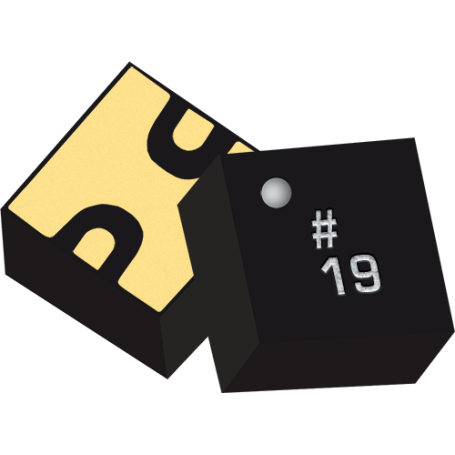

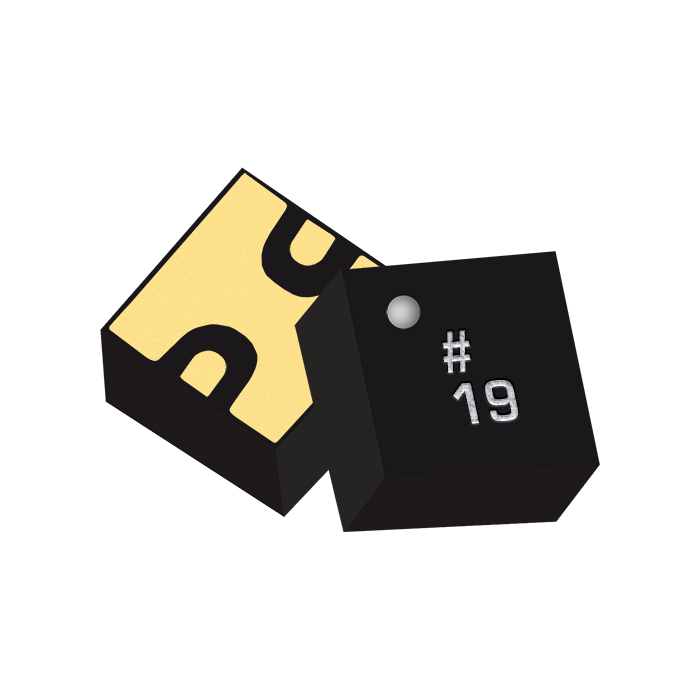

Description
La famille MFBP regroupe des filtres passe-bande RF passifs destinés aux applications micro-ondes nécessitant une large couverture fréquentielle, une réjection hors bande élevée et une intégration CMS compacte. Ces filtres sont conçus pour répondre à une grande diversité de besoins, depuis les bandes RF basses jusqu’aux fréquences micro-ondes élevées, tout en conservant une structure cohérente au sein d’une même famille.
Avantages :
- Large choix de fréquences centrales couvrant un spectre RF étendu
- Bandes passantes caractérisées à 1 dB, 3 dB et −30 dBc
- Forte réjection hors bande adaptée aux chaînes RF exigeantes
- Format CMS standardisé facilitant l’intégration
- Famille homogène permettant la sélection précise du modèle
Caractéristiques principales :
- Fonction : Filtre passe-bande RF passif
- Technologie : MMIC GaAs
- Plage de fréquences centrales : de 3,62 GHz à plus de 36 GHz selon le modèle
- Caractérisation fréquentielle : F1dB, F3dB et F30dBc
- Impédance : 50 Ω
- Boîtiers : CMS 4 × 4 mm et 5 × 5 mm selon les références
Applications typiques :
- Chaînes RF et micro-ondes
- Instrumentation RF
- Systèmes de communication large bande
- Radar et sous-systèmes RF
- Modules RF intégrés
Pourquoi choisir la famille MFBP :
La famille MFBP permet de couvrir un très large éventail de bandes RF avec une granularité fine des fréquences centrales. Elle constitue une solution flexible pour la conception de chaînes RF, en offrant un compromis maîtrisé entre sélectivité, largeur de bande et intégration CMS.
Spécifications et modèles disponibles :
Famille PSM
| Part Number | Fc [GHz] | F1dB Low [GHz] | F1dB High [GHz] | F3dB Low [GHz] | F3dB High [GHz] | F30dBc Low [GHz] | F30dBc High [GHz] | Size |
|---|
| MFBP-00010PSM |
3.62 |
2.24 |
5.86 |
1.87 |
6.24 |
1.39 |
7.03 |
5 × 5 mm |
| MFBP-00001PSM |
5.4 |
4.7 |
6.2 |
4.54 |
6.35 |
3.84 |
7.28 |
4 × 4 mm |
| MFBP-00002PSM |
6.6 |
5.85 |
7.45 |
5.69 |
7.6 |
4.93 |
8.58 |
4 × 4 mm |
| MFBP-00011PSM |
4.33 |
2.35 |
7.97 |
1.88 |
8.45 |
1.38 |
9.8 |
5 × 5 mm |
| MFBP-00004PSM |
7.9 |
6.07 |
10.27 |
5.69 |
10.69 |
4.81 |
12.12 |
5 × 5 mm |
| MFBP-00059PSM |
8.79 |
7 |
11.03 |
6.81 |
11.49 |
5.87 |
12.82 |
5 × 5 mm |
| MFBP-00006PSM |
10.51 |
8.19 |
13.49 |
7.71 |
14.06 |
6.31 |
16.15 |
5 × 5 mm |
| MFBP-00008PSM |
11.99 |
10.38 |
13.84 |
9.95 |
14.22 |
9.41 |
15.23 |
5 × 5 mm |
| MFBP-00029PSM |
13.07 |
12.23 |
13.96 |
11.9 |
14.17 |
11.38 |
14.66 |
5 × 5 mm |
| MFBP-00003PSM |
6.44 |
2.53 |
16.38 |
1.91 |
18.62 |
1.38 |
21.23 |
5 × 5 mm |
| MFBP-00030PSM |
16.94 |
16.19 |
17.72 |
15.96 |
17.94 |
15.27 |
18.55 |
5 × 5 mm |
| MFBP-00009PSM |
15.88 |
14.13 |
17.85 |
13.62 |
18.35 |
12.8 |
19.54 |
5 × 5 mm |
| MFBP-00005PSM |
10.64 |
6.26 |
18.07 |
5.72 |
19.04 |
4.8 |
21.32 |
5 × 5 mm |
| MFBP-00007PSM |
13.69 |
10.31 |
18.18 |
9.5 |
18.82 |
8.23 |
21.33 |
5 × 5 mm |
| MFBP-00034PSM |
19.61 |
18.05 |
21.3 |
17.82 |
21.8 |
17 |
22.47 |
5 × 5 mm |
| MFBP-00060PSM |
17.61 |
13.76 |
22.54 |
13.47 |
23.47 |
11.58 |
25.48 |
5 × 5 mm |
| MFBP-00036PSM |
20.56 |
17.55 |
24.09 |
17.2 |
25.02 |
16 |
26.69 |
5 × 5 mm |
| MFBP-00035PSM |
22.47 |
20.56 |
24.55 |
20.29 |
25.12 |
19.41 |
26.02 |
5 × 5 mm |
| MFBP-00037PSM |
25.7 |
22.45 |
29.43 |
22.07 |
30.29 |
20.9 |
31.88 |
5 × 5 mm |
| MFBP-00058PSM |
30.94 |
29.92 |
32 |
29.54 |
32.41 |
28.26 |
32.94 |
5 × 5 mm |
| MFBP-00028PSM |
31.52 |
30.82 |
32.24 |
30.5 |
32.54 |
29.46 |
32.97 |
5 × 5 mm |
| MFBP-00033PSM |
32.63 |
31.95 |
33.33 |
31.61 |
33.63 |
30.39 |
34.07 |
5 × 5 mm |
| MFBP-00038PSM |
30.71 |
27.69 |
34.06 |
27.11 |
35.31 |
26.04 |
36.31 |
5 × 5 mm |
| MFBP-00027PSM |
35.13 |
34.15 |
36.13 |
33.72 |
36.56 |
32.22 |
37.08 |
5 × 5 mm |
| MFBP-00032PSM |
36.04 |
35.2 |
36.89 |
34.81 |
37.25 |
33.27 |
37.78 |
5 × 5 mm |
| MFBP-00039PSM |
35.63 |
33.08 |
38.38 |
32.08 |
39.95 |
30.93 |
41.18 |
5 × 5 mm |
| MFBP-00031PSM |
32.58 |
32.14 |
33.03 |
31.89 |
33.25 |
30.94 |
34.39 |
5 × 5 mm |
| MFBP-00120PSM |
12.51 |
13.27 |
13.54 |
14.89 |
16.37 |
16.65 |
17.43 |
5 x 5 mm |
| MFBP-00121PSM |
14.13 |
15.25 |
15.48 |
16.87 |
18.38 |
18.72 |
19.51 |
5 x 5 mm |
| MFBP-00122PSM |
16.14 |
17.05 |
17.35 |
18.84 |
20.46 |
20.80 |
21.70 |
5 x 5 mm |
| MFBP-00123PSM |
18.15 |
19.09 |
19.43 |
20.86 |
22.40 |
22.78 |
23.72 |
5 x 5 mm |
| MFBP-00124PSM |
2.79 |
2.96 |
3.04 |
3.27 |
3.52 |
3.63 |
3.90 |
5 x 5 mm |
| MFBP-00125PSM |
4.77 |
5.08 |
5.16 |
5.41 |
5.67 |
5.79 |
6.08 |
5 x 5 mm |
| MFBP-00133PSM |
18.63 |
19.38 |
19.78 |
20.71 |
21.68 |
21.98 |
22.63 |
5 x 5 mm |
| MFBP-00137PSM |
6.97 |
7.42 |
7.67 |
9.92 |
12.82 |
13.82 |
14.62 |
5 x 5 mm |
| MFBP-00138PSM |
9.62 |
10.22 |
11.02 |
13.90 |
17.53 |
18.53 |
19.58 |
5 x 5 mm |
| MFBP-00097PSM |
7.38 |
7.82 |
8.00 |
8.64 |
9.34 |
9.55 |
9.88 |
5 x 5 mm |
| MFBP-00098PSM |
7.89 |
8.36 |
8.54 |
9.20 |
9.91 |
10.12 |
10.47 |
5 x 5 mm |
| MFBP-00099PSM |
8.33 |
8.86 |
9.01 |
9.67 |
10.38 |
10.64 |
10.99 |
5 x 5 mm |
| MFBP-00150PSM |
3.60 |
2.81 |
4.62 |
2.57 |
4.88 |
2.30 |
5.32 |
5 x 5 mm |
| MFBP-00130PSM |
18.11 |
17.28 |
18.98 |
16.98 |
19.33 |
18.13 |
18.13 |
5 x 5 mm |
| MFBP-00131PSM |
18.98 |
18.03 |
19.98 |
17.73 |
20.28 |
16.93 |
20.98 |
5 x 5 mm |
| MFBP-00132PSM |
19.69 |
18.83 |
20.58 |
18.43 |
20.93 |
17.68 |
21.53 |
5 x 5 mm |
| MFBP-00166PSM |
8.74 |
8.18 |
9.34 |
7.98 |
9.50 |
7.58 |
9.82 |
5 x 5 mm |
| MFBP-00167PSM |
9.20 |
8.66 |
9.78 |
8.46 |
9.94 |
8.06 |
10.30 |
5 x 5 mm |
| MFBP-00168PSM |
9.76 |
9.18 |
10.38 |
8.98 |
10.58 |
8.54 |
10.90 |
5 x 5 mm |
| MFBP-00173PSM |
17.46 |
16.77 |
18.18 |
16.56 |
18.49 |
16.12 |
18.89 |
5 x 5 mm |
| MFBP-00167PSM |
7.58 |
7.98 |
8.18 |
8.74 |
9.34 |
9.50 |
9.82 |
5 x 5 mm |
| MFBP-00168PSM |
8.54 |
8.98 |
9.18 |
9.76 |
10.38 |
10.58 |
10.90 |
5 x 5 mm |
| MFBP-00173PSM |
16.12 |
16.56 |
16.77 |
17.46 |
18.18 |
18.49 |
18.89 |
5 x 5 mm |
| MFBP-00149PSM |
8.14 |
8.61 |
8.74 |
9.21 |
9.70 |
9.88 |
10.17 |
5 x 5 mm |
| MFBP-00150PSM |
2.30 |
2.57 |
2.81 |
3.60 |
4.62 |
4.88 |
5.32 |
5 x 5 mm |
| MFBP-00132PSM |
17.68 |
18.43 |
18.83 |
19.69 |
20.58 |
20.93 |
21.53 |
5 x 5 mm |
| MFBP-00130PSM |
18.11 |
17.28 |
18.98 |
16.98 |
19.33 |
18.13 |
18.13 |
5 x 5 mm |
| MFBP-00131PSM |
18.98 |
18.03 |
19.98 |
17.73 |
20.28 |
16.93 |
20.98 |
5 x 5 mm |
| MFBP-00166PSM |
8.74 |
8.18 |
9.34 |
7.98 |
9.50 |
7.58 |
9.82 |
5 x 5 mm |
Famille CSP3
| Part Number | Fc [GHz] | F1dB Low [GHz] | F1dB High [GHz] | F3dB Low [GHz] | F3dB High [GHz] | F30dBc Low [GHz] | F30dBc High [GHz] | Size |
|---|
| MFBP-00151CSP3 |
6.97 |
7.66 |
7.81 |
9.61 |
11.82 |
12.55 |
13.30 |
3.50 x 3.50 mm |
| MFBP-00152CSP3 |
10.87 |
11.61 |
11.94 |
13.77 |
15.88 |
16.18 |
17.52 |
3.50 x 3.50 mm |
| MFBP-00155CSP3 |
1.25 |
1.73 |
2.11 |
4.64 |
10.22 |
11.38 |
12.49 |
3.50 x 3.50 mm |
| MFBP-00070CSP3 |
16.05 |
17.31 |
17.67 |
21.21 |
25.46 |
26.21 |
27.81 |
3.50 x 3.50 mm |
| MFBP-00072CSP3 |
29.20 |
30.14 |
30.76 |
33.32 |
36.09 |
36.81 |
37.96 |
3.50 x 3.50 mm |
| MFBP-00082CSP3 |
13.23 |
13.75 |
13.99 |
14.92 |
15.92 |
16.27 |
16.77 |
3.50 x 3.50 mm |
| MFBP-00083CSP3 |
15.29 |
15.81 |
16.04 |
16.95 |
17.92 |
18.24 |
18.74 |
3.50 x 3.50 mm |
| MFBP-00085CSP3 |
8.14 |
8.60 |
8.95 |
11.36 |
14.42 |
15.22 |
16.30 |
3.50 x 3.50 mm |
| MFBP-00086CSP3 |
11.64 |
12.22 |
12.69 |
15.07 |
17.90 |
18.44 |
19.63 |
3.50 x 3.50 mm |
| MFBP-00118CSP3 |
24.01 |
25.74 |
26.30 |
32.19 |
39.41 |
40.78 |
43.58 |
3.50 x 3.50 mm |
| MFBP-00143CSP3 |
10.17 |
10.56 |
10.68 |
11.00 |
11.33 |
11.49 |
11.82 |
3.50 x 3.50 mm |
| MFBP-00144CSP3 |
5.28 |
6.22 |
6.85 |
10.04 |
14.72 |
15.93 |
17.57 |
3.50 x 3.50 mm |
| MFBP-00145CSP3 |
2.66 |
3.22 |
3.84 |
8.01 |
16.70 |
19.22 |
21.04 |
3.50 x 3.50 mm |
| MFBP-00146CSP3 |
5.16 |
5.70 |
5.86 |
7.62 |
9.90 |
10.93 |
11.84 |
3.50 x 3.50 mm |
| MFBP-00061CSP3 |
16.40 |
17.16 |
17.44 |
18.88 |
20.43 |
20.84 |
21.63 |
3.50 x 3.50 mm |
| MFBP-00062CSP3 |
26.33 |
27.20 |
27.50 |
28.66 |
29.86 |
30.28 |
30.91 |
3.50 x 3.50 mm |
| MFBP-00108CSP3 |
1.49 |
1.82 |
2.06 |
2.87 |
4.01 |
4.36 |
4.83 |
3.50 x 3.50 mm |
| MFBP-00109CSP3 |
3.14 |
3.73 |
3.98 |
4.94 |
6.12 |
6.48 |
7.16 |
3.50 x 3.50 mm |
| MFBP-00110CSP3 |
4.90 |
5.67 |
5.99 |
7.10 |
8.41 |
8.78 |
9.67 |
3.50 x 3.50 mm |
| MFBP-00126CSP3 |
16.16 |
16.91 |
17.20 |
18.81 |
20.56 |
21.05 |
21.98 |
3.50 x 3.50 mm |
| MFBP-00127CSP3 |
16.26 |
17.03 |
17.45 |
18.88 |
20.43 |
20.71 |
21.86 |
3.50 x 3.50 mm |
| MFBP-00128CSP3 |
25.89 |
27.12 |
27.43 |
28.76 |
30.16 |
30.55 |
31.31 |
3.50 x 3.50 mm |
| MFBP-00129CSP3 |
25.67 |
26.94 |
27.41 |
28.56 |
29.76 |
30.06 |
32.02 |
3.50 x 3.50 mm |
|
| MFBP-00064CSP3 |
15.60 |
14.37 |
15.83 |
17.68 |
19.74 |
20.23 |
21.23 |
3.50 x 3.50 mm |
| MFBP-00066CSP3 |
19.38 |
18.38 |
19.82 |
21.84 |
24.07 |
24.40 |
25.83 |
3.50 x 3.50 mm |
Famille GSM1
| Part Number | Fc [GHz] | F1dB Low [GHz] | F1dB High [GHz] | F3dB Low [GHz] | F3dB High [GHz] | F30dBc Low [GHz] | F30dBc High [GHz] | Size |
|---|
| MFBP-00160GSM1 |
2.50 |
2.74 |
2.85 |
3.67 |
4.72 |
4.97 |
5.30 |
7.50 x 4.25 mm |
| MFBP-00161GSM1 |
1.69 |
1.89 |
1.95 |
2.20 |
2.49 |
2.57 |
2.86 |
7.50 x 4.25 mm |
| MFBP-00162GSM1 |
1.22 |
1.36 |
1.42 |
1.68 |
1.99 |
2.05 |
2.32 |
7.50 x 4.25 mm |
| MFBP-00163GSM1 |
1.21 |
1.36 |
1.42 |
1.85 |
2.41 |
2.49 |
2.89 |
7.50 x 4.25 mm |
| MFBP-00164GSM1 |
0.35 |
0.40 |
0.43 |
0.65 |
0.99 |
1.04 |
1.29 |
7.50 x 4.25 mm |
| MFBP-00165GSM1 |
0.68 |
0.78 |
0.82 |
1.13 |
1.55 |
1.61 |
1.92 |
7.50 x 4.25 mm |
Famille BH
| Part Number | Fc [GHz] | F1dB Low [GHz] | F1dB High [GHz] | F3dB Low [GHz] | F3dB High [GHz] | F30dBc Low [GHz] | F30dBc High [GHz] | Size |
|---|
| MFBP-00040BH |
1.66 |
1.22 |
2.09 |
1.10 |
2.26 |
0.91 |
2.63 |
30.1 x 9.5 mm |
| MFBP-00045BH |
2.88 |
2.25 |
3.55 |
2.08 |
3.77 |
1.80 |
4.26 |
30.1 x 9.5 mm |
| MFBP-00053BH |
5.90 |
4.55 |
7.23 |
4.21 |
7.67 |
3.68 |
8.63 |
30.1 x 9.5 mm |
| MFBP-00084BH |
8.10 |
6.88 |
9.92 |
6.33 |
10.52 |
5.37 |
11.85 |
30.1 x 9.5 mm |
| MFBP-00086BH |
9.95 |
8.55 |
11.64 |
7.93 |
12.22 |
6.76 |
13.39 |
30.1 x 9.5 mm |
| MFBP-00089BH |
12.18 |
10.42 |
14.09 |
9.86 |
14.65 |
8.37 |
15.89 |
30.1 x 9.5 mm |
| MFBP-00051BH |
41.10 |
39.20 |
43.58 |
38.31 |
44.10 |
34.95 |
45.30 |
32.8 x 9.5 mm |
| MFBP-00057BH |
33.22 |
30.88 |
36.41 |
29.84 |
37.28 |
26.97 |
39.10 |
32.8 x 9.5 mm |
| MFBP-00103BH |
47.42 |
44.02 |
51.09 |
43.25 |
52.74 |
39.27 |
55.68 |
32.8 x 9.5 mm |
Famille CH
| Part Number | Fc [GHz] | F1dB Low [GHz] | F1dB High [GHz] | F3dB Low [GHz] | F3dB High [GHz] | F30dBc Low [GHz] | F30dBc High [GHz] | Size |
|---|
| MFBP-00134CH |
25.38 |
21.85 |
29.49 |
21.18 |
30.22 |
20.24 |
31.7 |
- |
| MFBP-00135CH |
24.00 |
19.72 |
28.91 |
19.26 |
29.61 |
18.06 |
31.04 |
- |
| MFBP-00136CH |
17.31 |
13.87 |
21.54 |
13.43 |
22.14 |
12.34 |
23.63 |
- |
| MFBP-00137CH |
13.90 |
9.83 |
18.05 |
9.46 |
18.62 |
8.10 |
19.9 |
- |
| MFBP-00138CH |
17.33 |
12.86 |
21.47 |
12.45 |
22.05 |
11.25 |
23.41 |
- |
| MFBP-00151CH |
28.00 |
24.06 |
32.62 |
23.39 |
33.29 |
22.57 |
34.94 |
3.10 x 3.10 mm |
| MFBP-00152CH |
20.39 |
16.18 |
25.03 |
15.59 |
25.63 |
14.27 |
26.9 |
3.10 x 3.10 mm |
| MFBP-00153CH |
30.56 |
25.55 |
36.25 |
25.04 |
36.8 |
24.12 |
38.14 |
3.10 x 3.10 mm |
| MFBP-00154CH |
20.15 |
15.26 |
25.07 |
14.71 |
25.55 |
13.57 |
26.99 |
3.10 x 3.10 mm |
