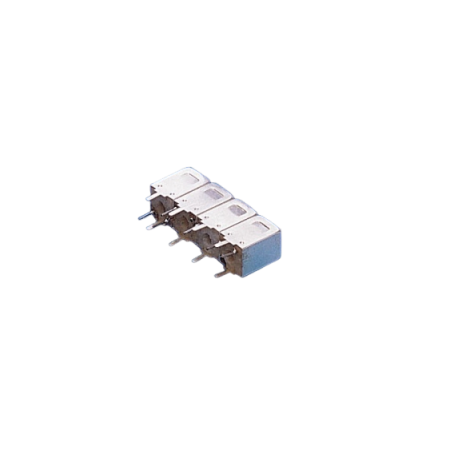

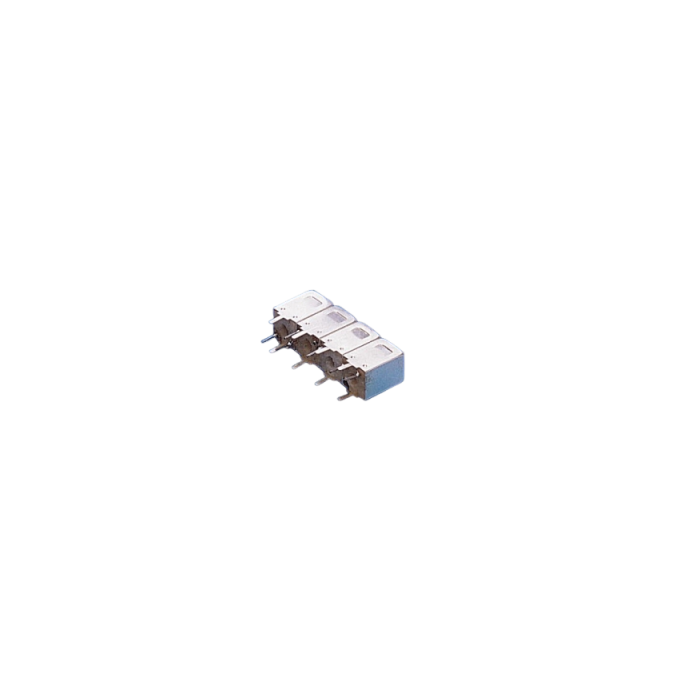

Nouveau Filtre hélicoïdal VHF (4 MHz - 30 MHz) : Série 7H4 Agrandir l'image

Filtre hélicoïdal VHF (4 MHz - 30 MHz) : Série 7H4 | Temwell Corporation

La série 7H4 regroupe des filtres hélicoïdaux VHF à montage broches (Pin) conçus pour les applications radio entre 56 et 145 MHz.

Plus de détails

Description

La série 7H4 regroupe des filtres hélicoïdaux VHF à montage broches (Pin) conçus pour les applications radio entre 56 et 145 MHz. Compacts et robustes, ils offrent plusieurs largeurs de bande (-3 dB) de 4 à 30 MHz, une impédance 50 Ω en entrée/sortie, et une tenue en puissance typique de 1 à 5 W. Leur format standardisé (hauteur 12,5 mm, empreinte env. 30,5 × 7,6 mm) facilite l’intégration sur des cartes RF à forte densité.

Avantages :

  • Couverture VHF étendue : versions centrées de ~56 à 145 MHz pour adresser de nombreux canaux et services.
  • Large choix de bandes passantes : options 4, 5, 6, 7, 8, 10, 11, 14, 17, 20, 22, 23, 30 MHz pour optimiser sélectivité et pertes.
  • Pertes d’insertion maîtrisées : typiquement de ~2 à 6,5 dB selon la variante et la bande passante.
  • Format compact et répétable : hauteur 12,5 mm pour une intégration aisée en boîtiers RF bas-profil.
  • Montage simple : type Pin compatible assemblage traversant, robuste en environnement.

Caractéristiques principales :

  • Plage de fréquences (Fo) : variantes typiques 56–67 MHz, 68–75 MHz, 76–85 MHz, 86–95 MHz, 96–107 MHz, 108–125 MHz, 126–145 MHz.
  • Bande passante à –3 dB : 4 à 30 MHz selon modèle.
  • Pertes d’insertion (IL) : env. 2 à 6,5 dB suivant la bande et la largeur.
  • Réjection typique : valeurs données à Fo±(10~50) MHz selon version (ex. 40–89 dB), permettant un fort rejet hors bande.
  • Impédance : 50 Ω (entrée/sortie).
  • Puissance admissible : ~1 à 5 W.

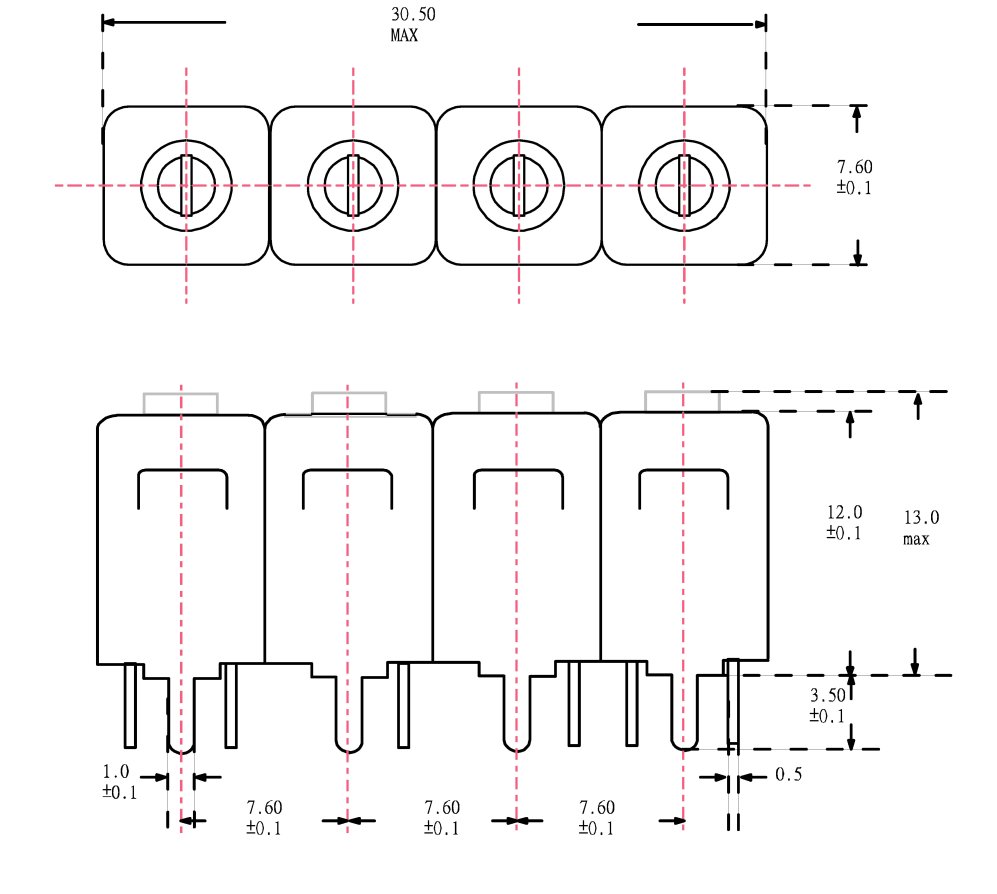

  • Format mécanique : H ≈ 12,5 mm ; empreinte ≈ 30,5 × 7,6 mm ; montage Pin.
  • Gamme RF : VHF.

Applications typiques :

  • Radios VHF, émetteurs/récepteurs terrestres, maritimes et aéronautiques légers.
  • Filtrage d’étage RF en tête de chaîne (préselection) ou en intermédiaire (IF proche VHF).
  • Infrastructures IoT / télémesure VHF, systèmes de balises et liaisons spécialisées.
  • Suppression d’images et d’harmoniques dans des architectures superhétérodynes.

Pourquoi choisir cette série :

  • Granularité de références : un riche éventail de fréquences centrales et de bandes passantes pour ajuster finement la sélectivité selon le cahier des charges.
  • Compacité éprouvée : hauteur 12,5 mm et empreinte étroite pour diminuer l’encombrement et préserver l’isolation entre étages.
  • Performance hors bande : réjection élevée à Fo±(10~50) MHz permettant de protéger le récepteur des canaux adjacents et interférences.
  • Intégration simple : montage Pin, 50 Ω natif, idéal pour des chaînes RF 1–5 W sans adaptation complexe.
  • Polyvalence VHF : couvre les principales tranches 56–145 MHz pour des déploiements multisecteurs (industriel, sécurité, transport, IoT).

Tableau comparatif des modèles – Série 7H4 (56 MHz – 145 MHz)
ModèlePlage de fréquence (MHz)Bande passante (-3dB)Perte d’insertion (dB)@Fo–( )M/dB@Fo+( )M/dBImpédancePuissanceTypeTaille (mm)Bande RF
TF69626B-64M 56 – 67 4 MHz 4 dB (10)35 (10)33 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69526B-60M 56 – 67 10 MHz 3 dB (15)40 (15)30 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69188B-70M 68 – 75 4 MHz 4.5 dB (10)42 (10)33 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6489B1-74M 68 – 75 5.5 MHz 4 dB (50)69 (50)89 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6491B-74M 68 – 75 10 MHz 3 dB (50)60 (50)80 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69489D-75M 68 – 75 11 MHz 3.5 dB (20)53 (20)38 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69425A-70M 68 – 75 14 MHz 2 dB (50)57 (50)60 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64389B-74.5M 68 – 75 20 MHz 2.5 dB (50)60 (50)55 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69190B-81.3M 76 – 85 4 MHz 5.5 dB (10)46 (10)46 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69287B-80M 76 – 85 5 MHz 4.5 dB (10)46 (10)32 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69371B-77M 76 – 85 17 MHz 2.5 dB (50)53 (50)58 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69300A-90M 86 – 95 10 MHz 3 dB (50)65 (50)70 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69280A1-107M 96 – 107 6 MHz 4 dB (10)29 (10)31 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69427B1-98M 96 – 107 14 MHz 3 dB (20)41 (20)30 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69178B-100M 96 – 107 15 MHz 3 dB (20)38 (20)30 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6488E-98M 96 – 107 20 MHz 2 dB (30)50 (30)34 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64324B-110M 108 – 125 5 MHz 4 dB (20)54 (20)56 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69198B1-124M 108 – 125 6 MHz 4 dB (10)26 (10)24 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69641A1-113.5M 108 – 125 14 MHz 4 dB (40)65 (40)70 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69695BF-118M 108 – 125 20 MHz 2 dB (30)46 (30)32 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64217C-118M 108 – 125 23 MHz 2 dB (30)43 (30)32 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6957E-135M 126 – 145 4 MHz 5 dB (30)78 (30)65 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6955B-137M 126 – 145 4 MHz 6.5 dB (12)59 (12)47 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6955D1-140M 126 – 145 5 MHz 3.5 dB (10)35 (10)25 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69676B1-130M 126 – 145 6 MHz 4 dB (10)23 (10)22 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6957B1-140.21M 126 – 145 7 MHz 4 dB (12)31 (12)28 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69205B1-134M 126 – 145 8 MHz 4 dB (30)65 (30)60 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69677B1-140M 126 – 145 10 MHz 3 dB (50)80 (50)70 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69383B-142M 126 – 145 14 MHz 3 dB (50)60 (50)64 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69362B-128.5M 126 – 145 14 MHz 3 dB (50)70 (50)72 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64218C-128M 126 – 145 20 MHz 2 dB (30)46 (30)33 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69181B1-128M 126 – 145 20 MHz 2.5 dB (30)45 (30)30 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69381B-144M 126 – 145 20 MHz 2 dB (50)60 (50)50 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69159B1-128M 126 – 145 22 MHz 2.5 dB (50)59 (50)55 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64218B1-128M 126 – 145 30 MHz 2 dB (50)50 (50)33 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69239B-140M 126 – 145 30 MHz 2.5 dB (50)52 (50)27 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF

Tableau comparatif des modèles – Série 7H4 (146 MHz – 310 MHz)
ModèlePlage de fréquence (MHz)Bande passante (-3dB)Perte d’insertion (dB)@Fo–( )M/dB@Fo+( )M/dBImpédancePuissanceTypeTaille (mm)Bande RF
TF64721B-146M 146 – 165 2 MHz 7.0 dB (10)39 (10)51 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64722B-157M 146 – 165 2 MHz 7.5 dB (10)43 (10)54 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64723B-160M 146 – 165 2 MHz 7.0 dB (10)43 (10)53 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6914B-152M 146 – 165 3 MHz 6.5 dB (10)50 (10)39 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6921D-154M 146 – 165 3 MHz 7 dB (10)47 (10)37 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6915B-165M 146 – 165 3 MHz 4.5 dB (50)71 (50)68 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6914B1-157M 146 – 165 4 MHz 4.5 dB (10)35 (10)27 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69709B-146M 146 – 165 5 MHz 5 dB (10)40 (10)30 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69709B-152M 146 – 165 5 MHz 4.5 dB (10)40 (10)29 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69711B-151M 146 – 165 7 MHz 4 dB (10)31 (10)20 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6924D-151M 146 – 165 8 MHz 3.5 dB (20)60 (20)38 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69281A-146M 146 – 165 8 MHz 4 dB (50)65 (50)60 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64231E-152M 146 – 165 8 MHz 4 dB (30)70 (30)60 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64790B-146M 146 – 165 10 MHz 3 dB (50)75 (50)70 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64229E-152M 146 – 165 12 MHz 3 dB (30)55 (30)53 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69379B-165M 146 – 165 18 MHz 2.5 dB (30)41 (30)31 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64206B-160M 146 – 165 18 MHz 2 dB (50)47 (50)26 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69182B1-152.5M 146 – 165 18 MHz 3 dB (20)26 (20)22 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69377B-148M 146 – 165 26 MHz 2 dB (50)55 (50)38 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64213BF-161M 146 – 165 26 MHz 2 dB (50)62 (50)44 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69397B-149M 146 – 165 31 MHz 2.5 dB (30)33 (30)19 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69444B-149M 146 – 165 33 MHz 2.5 dB (50)49 (50)31 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6499B-157M 146 – 165 34 MHz 2 dB (30)24 (30)17 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69399D-149.5M 146 – 165 35 MHz 2 dB (50)42 (50)31 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64220B-155M 146 – 165 38 MHz 2 dB (50)47 (50)27 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64724A-172M 166 – 195 2 MHz 6.5 dB (10)37 (10)48 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6958B-170M 166 – 195 4 MHz 6.5 dB (10)48 (10)40 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64231F-172M 166 – 195 6 MHz 4 dB (20)61 (20)44 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6959D-174M 166 – 195 7 MHz 4 dB (20)60 (20)43 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6986B-172.5M 166 – 195 8 MHz 4.5 dB (20)60 (20)42 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64230F-172.5M 166 – 195 9 MHz 3.5 dB (20)55 (20)36 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69285B-173M 166 – 195 10 MHz 3 dB (10)22 (10)15 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64241F-172M 166 – 195 15 MHz 3 dB (50)61 (50)54 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69183B1-180M 166 – 195 19 MHz 4.5 dB (50)68 (50)57 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69723B1-180M 166 – 195 30 MHz 2 dB (50)47 (50)30 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF69725B-180M 166 – 195 40 MHz 2 dB (50)40 (50)25 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF6492B-191.5M 166 – 195 40 MHz 2 dB (50)43 (50)26 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF
TF64216B-195M 166 – 195 50 MHz 2 dB (50)38 (50)20 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 VHF

Tableau comparatif des modèles – Série 7H4 (311 MHz – 555 MHz)
ModèlePlage de fréquence (MHz)Bande passante (-3dB)Perte d’insertion (dB)@Fo–( )M/dB@Fo+( )M/dBImpédancePuissanceTypeTaille (mm)Bande RF
TF64221F-344M 311 – 350 15 MHz 3.5 dB (40)73 (40)43 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69479B1-325M 311 – 355 3 MHz 6.5 dB (20)60 (20)50 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69452B1-325M 311 – 355 8 MHz 5.5 dB (10)18 (10)11 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64334B-325M 311 – 355 10 MHz 4.5 dB (20)46 (20)33 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69275E-341M 311 – 355 10 MHz 4.5 dB (42)75 (42)70 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69321B1-325M 311 – 355 13 MHz 4 dB (20)38 (20)26 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69210B-340M 311 – 355 16 MHz 3.5 dB (50)90 (50)50 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64237E-330M 311 – 355 18 MHz 3 dB (30)46 (30)38 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69437E-341.4M 311 – 355 19 MHz 3.5 dB (50)58 (50)50 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6998B-350M 311 – 355 25 MHz 2.5 dB (40)45 (40)32 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64219E-330M 311 – 355 25 MHz 2.5 dB (40)47 (40)38 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69713B-318M 311 – 355 30 MHz 2 dB (50)50 (50)34 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6980B-350M 311 – 355 36 MHz 2 dB (50)43 (50)30 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6920A-341.4M 311 – 355 40 MHz 2 dB (50)35 (50)25 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64208B-325M 311 – 355 50 MHz 2 dB (50)28 (50)19 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6497B-352M 311 – 355 55 MHz 2 dB (100)50 (100)35 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64388B-340M 311 – 355 70 MHz 2 dB (100)50 (100)28 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69869B-350M 311 – 355 88 MHz 1.5 dB (100)44 (100)25 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69461A1-395M 356 – 400 4 MHz 5.5 dB (40)65 (40)50 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69275E2-390M 356 – 400 9 MHz 3.5 dB (30)36 (30)39 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64844A-395M 356 – 400 10 MHz 4.5 dB (50)58 (50)56 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64843A-385M 356 – 400 10 MHz 4.5 dB (50)59 (50)60 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64238F-370M 356 – 400 13 MHz 3 dB (30)49 (30)33 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69180B-365M 356 – 400 15 MHz 3 dB (50)75 (50)50 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64240F-360M 356 – 400 15 MHz 3 dB (30)51 (30)34 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64239F-390M 356 – 400 16 MHz 3 dB (30)45 (30)29 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6999B-396M 356 – 400 18 MHz 3 dB (36)56 (36)39 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6971F-375M 356 – 400 20 MHz 3 dB (50)68 (50)39 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64226E-370M 356 – 400 28 MHz 2.5 dB (40)40 (40)31 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69699B-378M 356 – 400 30 MHz 2.5 dB (50)48 (50)36 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6498B-397M 356 – 400 57 MHz 2 dB (100)55 (100)35 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69854B-365M 356 – 400 70 MHz 2 dB (100)46 (100)28 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64360F-358M 356 – 400 92 MHz 1.5 dB (160)58 (160)39 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64348B-375M 356 – 400 100 MHz 2 dB (100)38 (100)20 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64851B-455M 401 – 455 5 MHz 7 dB (50)60 (50)60 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64848B-452.5M 401 – 455 5 MHz 7 dB (50)65 (50)68 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64850B-454M 401 – 455 7 MHz 6 dB (50)60 (50)60 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69278B-418M 401 – 455 8 MHz 4.5 dB (50)69 (50)51 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69462A-455M 401 – 455 10 MHz 5.5 dB (50)65 (50)60 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64375E-440M 401 – 455 10 MHz 4 dB (20)35 (20)35 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6999D-450M 401 – 455 10 MHz 4 dB (50)74 (50)52 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64846B-425M 401 – 455 10 MHz 5 dB (50)67 (50)59 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64845B-415M 401 – 455 10 MHz 5 dB (50)63 (50)58 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69275E3-452.5M 401 – 455 10 MHz 4.5 dB (30)55 (30)51 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64369F-455M 401 – 455 15 MHz 3.5 dB (30)40 (30)35 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64234E-450M 401 – 455 15 MHz 3.5 dB (30)44 (30)40 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69466B-433M 401 – 455 15 MHz 3.5 dB (30)47 (30)37 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64340E-450M 401 – 455 16 MHz 3.5 dB (30)38 (30)34 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69157B-447.5M 401 – 455 17 MHz 3.5 dB (20)28 (20)21 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69460F-406M 401 – 455 18 MHz 3 dB (50)55 (50)53 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6971F2-420M 401 – 455 19 MHz 2.5 dB (50)65 (50)39 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6973F-404M 401 – 455 20 MHz 3 dB (30)37 (30)25 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6978B-433.9M 401 – 455 21 MHz 3 dB (50)54 (50)43 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69294B-415M 401 – 455 27 MHz 2.5 dB (100)60 (100)45 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69410B-435M 401 – 455 31 MHz 3 dB (100)60 (100)60 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69295B-430M 401 – 455 34 MHz 3 dB (50)40 (50)34 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69295B-435M 401 – 455 34 MHz 2.5 dB (50)41 (50)29 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69629B-425M 401 – 455 35 MHz 2 dB (100)74 (100)52 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6982B-450M 401 – 455 37 MHz 2.5 dB (50)40 (50)29 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69256B-430M 401 – 455 43 MHz 2.5 dB (50)38 (50)22 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64209B-455M 401 – 455 50 MHz 2 dB (50)26 (50)18 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69409B1-455M 401 – 455 60 MHz 2 dB (100)50 (100)33 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69528B-436M 401 – 455 65 MHz 1.5 dB (100)48 (100)27 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69607B-435M 401 – 455 68 MHz 2 dB (100)53 (100)31 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64847A-446.5M 401 – 455 73 MHz 2 dB (150)72 (150)40 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64729F-425M 401 – 455 90 MHz 1.5 dB (200)62 (200)43 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64391F-450M 401 – 455 95 MHz 1.5 dB (150)55 (150)35 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64214B-450M 401 – 455 110 MHz 1.5 dB (200)59 (200)33 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6495F-450M 401 – 455 120 MHz 1.5 dB (200)56 (200)32 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64725A-460M 456 – 515 2 MHz 10 dB (50)57 (50)62 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69880E-473M 456 – 515 6 MHz 7 dB (20)45 (20)42 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69457A-508M 456 – 515 7 MHz 6.5 dB (50)60 (40)60 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64857A-482.4M 456 – 515 7 MHz 6.5 dB (50)63 (50)56 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64858A-492.4M 456 – 515 7 MHz 6 dB (50)60 (50)62 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69463B-465M 456 – 515 8 MHz 4 dB (50)67 (50)53 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69463E-465M 456 – 515 10 MHz 4.5 dB (50)60 (50)55 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64347B-465M 456 – 515 12 MHz 4 dB (30)60 (30)41 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64232F-480M 456 – 515 12 MHz 3.5 dB (50)65 (50)50 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69553B-473M 456 – 515 14 MHz 3.5 dB (50)60 (50)45 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69101D-485M 456 – 515 14 MHz 4 dB (50)60 (50)52 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64372F-485M 456 – 515 14 MHz 4 dB (50)60 (50)52 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64236F-490M 456 – 515 15 MHz 3.5 dB (30)48 (30)30 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64232E-490M 456 – 515 15 MHz 3.5 dB (30)44 (30)42 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69654B-476.8M 456 – 515 16 MHz 3.5 dB (50)65 (50)48 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69491B-476M 456 – 515 17 MHz 3.5 dB (36)48 (36)36 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6974F-485M 456 – 515 20 MHz 3 dB (50)60 (50)46 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6974B-480M 456 – 515 24 MHz 2.5 dB (50)50 (50)37 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64247D-485M 456 – 515 25 MHz 2.5 dB (50)45 (50)29 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69478B-480M 456 – 515 31 MHz 3 dB (50)40 (50)30 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69299B-470M 456 – 515 36 MHz 2.5 dB (50)37 (50)26 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69811B-485M 456 – 515 40 MHz 2 dB (100)65 (100)45 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6972F-470M 456 – 515 45 MHz 2 dB (50)35 (50)18 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69493B-475M 456 – 515 65 MHz 2 dB (100)55 (100)33 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69495B-500M 456 – 515 70 MHz 2 dB (100)51 (100)32 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64852A-456.5M 456 – 515 73 MHz 2 dB (150)65 (150)41 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69855B-480M 456 – 515 80 MHz 2 dB (150)55 (150)35 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64741B-470M 456 – 515 100 MHz 1.5 dB (150)50 (150)25 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64335F-480M 456 – 515 120 MHz 2 dB (150)49 (150)29 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64427B-545M 516 – 555 6 MHz 11 dB (10)39 (10)31 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64426B-533M 516 – 555 6 MHz 11 dB (10)39 (10)31 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF

Tableau comparatif des modèles – Série 7H4 (641 MHz – 880 MHz)
ModèlePlage de fréquence (MHz)Bande passante (-3dB)Perte d’insertion (dB)@Fo–( )M/dB@Fo+( )M/dBImpédancePuissanceTypeTaille (mm)Bande RF
TF6964A-650M 641 – 660 5 MHz 7 dB (20)48 (20)37 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69632A-660M 641 – 660 10 MHz 6 dB (40)65 (40)54 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64345A-653M 641 – 660 35 MHz 3 dB (100)66 (100)48 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69633F-660M 641 – 660 58 MHz 3 dB (70)39 (70)22 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69501F-650M 641 – 660 69 MHz 2.5 dB (100)52 (100)28 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64366B-650M 641 – 660 120 MHz 2 dB (150)44 (150)28 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64726A-700M 661 – 700 2 MHz 9.5 dB (50)66 (50)64 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69838B-675M 661 – 700 10 MHz 6 dB (50)63 (50)52 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69242D-700M 661 – 700 14 MHz 4.5 dB (50)63 (50)50 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69845F-680M 661 – 700 20 MHz 3.5 dB (50)53 (50)52 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64325E-666M 661 – 700 22 MHz 3 dB (30)32 (30)30 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69783B-675M 661 – 700 27 MHz 3 dB (100)68 (100)57 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64860A-680.5M 661 – 700 35 MHz 3 dB (50)44 (50)26 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69297A-680M 661 – 700 35 MHz 2.5 dB (50)40 (50)24 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64326E-666M 661 – 700 38 MHz 2.5 dB (30)14 (30)12 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69651B-675M 661 – 700 50 MHz 2.5 dB (50)24 (50)15 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64327E-666M 661 – 700 50 MHz 2.5 dB (54)30 (54)24 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64328E-666M 661 – 700 64 MHz 2 dB (66)30 (66)24 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69503A-700M 661 – 700 74 MHz 2 dB (100)49 (100)25 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64329E-666M 661 – 700 76 MHz 2 dB (78)31 (78)21 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69600E-700M 661 – 700 85 MHz 2.5 dB (200)58 (200)49 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64330E-666M 661 – 700 88 MHz 2 dB (90)31 (90)23 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64331F-666M 661 – 700 105 MHz 2 dB (102)30 (102)22 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64332F-666M 661 – 700 115 MHz 2 dB (114)35 (114)22 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64333F-666M 661 – 700 125 MHz 2 dB (126)33 (126)23 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF94248F-700M 661 – 700 180 MHz 1.5 dB (200)43 (200)23 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6915A-749M 701 – 750 4 MHz 7.5 dB (50)59 (50)52 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69546F-738M 701 – 750 10 MHz 5 dB (50)59 (50)63 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64863B-710M 701 – 750 12 MHz 5.5 dB (100)60 (100)60 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64868B-740M 701 – 750 12 MHz 5.5 dB (50)56 (50)63 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64420E-710M 701 – 750 12 MHz 4.5 dB (50)59 (50)50 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64867B-737.5M 701 – 750 17 MHz 5 dB (50)64 (50)50 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64861A-707.5M 701 – 750 17 MHz 4.5 dB (50)58 (50)44 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64862B-707M 701 – 750 18 MHz 4.5 dB (50)53 (50)41 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69846B-725M 701 – 750 20 MHz 4 dB (50)52 (50)36 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64864B-713M 701 – 750 30 MHz 3 dB (50)45 (50)30 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64578F-735M 701 – 750 40 MHz 2.5 dB (50)36 (50)21 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64902A-725.5M 701 – 750 45 MHz 3 dB (50)35 (50)23 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69652B-725M 701 – 750 55 MHz 2.5 dB (50)21 (50)15 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69803B-725M 701 – 750 60 MHz 2.5 dB (100)52 (100)28 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69505A-730M 701 – 750 72 MHz 3.5 dB (100)49 (100)26 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69876B-725M 701 – 750 90 MHz 2 dB (200)60 (200)35 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64363F-706M 701 – 750 104 MHz 2 dB (102)30 (102)22 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64384F-750M 701 – 750 130 MHz 2 dB (200)52 (200)33 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64921B-782M 751 – 800 10 MHz 6 dB (50)63 (50)57 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF6970A-780M 751 – 800 10 MHz 5 dB (50)57 (50)56 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64913A-793M 751 – 800 12 MHz 6 dB (50)65 (50)61 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64911B-782M 751 – 800 12 MHz 6 dB (50)59 (50)62 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64912B-784.5M 751 – 800 15 MHz 6 dB (50)62 (50)62 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69130D-775M 751 – 800 21 MHz 3.5 dB (50)48 (50)35 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69648F-790M 751 – 800 25 MHz 3.5 dB (50)51 (50)35 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64910A-780.5M 751 – 800 45 MHz 2.5 dB (50)33 (50)22 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69653B-775M 751 – 800 55 MHz 2.5 dB (50)20 (50)14 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64602D-768M 751 – 800 65 MHz 2.5 dB (100)46 (100)28 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69514D-760M 751 – 800 69 MHz 2 dB (100)48 (100)26 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69514F-800M 751 – 800 70 MHz 2 dB (100)40 (100)33 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64367B-770M 751 – 800 120 MHz 2 dB (200)45 (200)27 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64385F-800M 751 – 800 130 MHz 2 dB (200)50 (200)32 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64561B-800M 751 – 800 160 MHz 2 dB (150)31 (150)12 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69147A-815M 801 – 830 6 MHz 8.5 dB (50)56 (50)40 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64494B-827.5M 801 – 830 6 MHz 8 dB (15)36 (15)30 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69131A-813.5M 801 – 830 9 MHz 6.5 dB (50)50 (50)50 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69244A-815M 801 – 830 10 MHz 5.5 dB (50)58 (50)51 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64865A-822.5M 801 – 830 15 MHz 5.5 dB (50)59 (50)52 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64914A-813.5M 801 – 830 15 MHz 5 dB (50)64 (50)51 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69552E-813.5M 801 – 830 18 MHz 4.5 dB (100)61 (100)58 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69214A-820M 801 – 830 22 MHz 5 dB (50)55 (50)40 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69555E-814.5M 801 – 830 24 MHz 4 dB (50.5)45 (49.5)39 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69301A-815M 801 – 830 29 MHz 3.5 dB (50)46 (50)35 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64871A-806M 801 – 830 30 MHz 3.5 dB (50)48 (50)33 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69306A-815M 801 – 830 42 MHz 2.5 dB (50)34 (50)21 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69798B-815M 801 – 830 50 MHz 2.5 dB (150)63 (150)50 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69655B1-825M 801 – 830 55 MHz 2.5 dB (100)51 (100)36 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69804B-815M 801 – 830 60 MHz 2.5 dB (150)62 (150)46 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69877B-815M 801 – 830 90 MHz 2.5 dB (200)66 (200)38 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64465F-805M 801 – 830 140 MHz 2.5 dB (150)40 (150)19 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64917A-833M 831 – 860 2 MHz 11 dB (50)52 (50)50 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69148A-845M 831 – 860 7 MHz 7.5 dB (30)55 (30)45 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69132A-850M 831 – 860 10 MHz 6 dB (50)57 (50)51 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64415F-842M 831 – 860 14 MHz 4 dB (50)52 (50)37 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64866F-837M 831 – 860 15 MHz 5.5 dB (50)70 (50)50 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64919A-860.5M 831 – 860 17 MHz 5 dB (50)62 (50)50 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF64817E-836.5M 831 – 860 25 MHz 4 dB (50)42 (50)44 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69450A-836.5M 831 – 860 25 MHz 3.5 dB (50)51 (50)37 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69450E-836.5M 831 – 860 25 MHz 3.5 dB (50)41 (50)44 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69555F-859.5M 831 – 860 25 MHz 3.5 dB (50)49 (50)33 50 Ω 1 – 5 W Pin 30.5 × 7.6 × 12.5 UHF
TF69245A-845M 831 – 860</t

10 autres produits dans la même catégorie

Close
