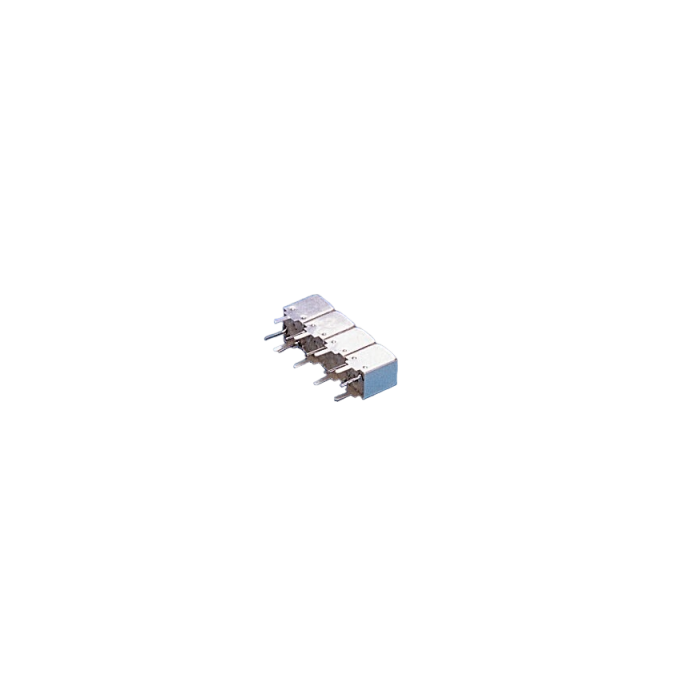

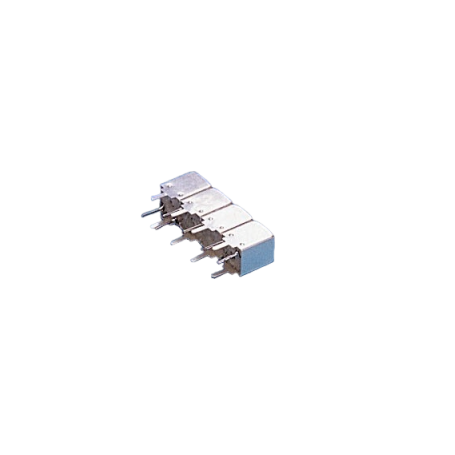

La série Temwell 5W4 regroupe des filtres passe-bande hélicoïdaux RF à 4 pôles conçus pour les architectures compactes. Le format mécanique est plus petit que la série 7S tout en conservant un excellent comportement en haute fréquence (> 1 GHz), souvent meilleur que la 7H dans cette zone. La topologie 4 pôles élève la sélectivité pour satisfaire des exigences de rejet plus strictes en front-end RF.
Avantages :
- Compacité : encombrement réduit vs 7S, idéal pour équipements denses.
- Haute fréquence optimisée : performances améliorées au-delà de 1 GHz.
- Sélectivité 4 pôles : rejet hors-bande 40 à 50 dB pour un nettoyage spectral efficace.
- Impédance standard 50 Ω facilitant l’intégration sur lignes RF.
- Large plage de BW : de la filtration étroite à large bande selon le besoin.
Caractéristiques principales :
- Fréquence centrale (Fc) : 230 à 2600 MHz.
- Bande passante (BW) : 2 à 120 MHz.
- Impédance : 50 Ω.
- Atténuation / Rejet hors-bande (typ.) : 40 – 50 dB.
- Technologie : filtre hélicoïdal passe-bande, 4 pôles.
Applications typiques :
- Télécommunications : répéteurs, liaisons, front-ends RF.
- Satellite (bord & sol) et stations de base.
- RADAR et aviation (pré-sélection, suppression d’images).
- Communications minières et environnements sévères.
Pourquoi choisir la série Temwell 5W4 ?
La 5W4 combine format réduit et rejet renforcé pour les chaînes RF exigeantes. Par rapport aux versions 2 et 3 pôles, la 5W4 apporte un niveau de sélectivité permettant de mieux contenir les interférences proches et de stabiliser les gabarits CEM tout en maintenant des pertes d’insertion maîtrisées. C’est une solution naturelle pour les designs UHF/L-band où l’espace, la sélectivité et la tenue HF sont critiques.
Tableau comparatif des modèles – Série 5W4 (230 MHz – 300 MHz)
| Modèle | Plage de fréquence (MHz) | Bande passante (-3dB) | Perte d’insertion (dB) | @Fo–( )M/dB | @Fo+( )M/dB | Impédance | Puissance | Type | Taille (mm) | Bande RF |
|---|
| TFW4416A-229M |
230 – 250 |
10 MHz |
5 |
(50)70 |
(50)56 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4417A-240M |
230 – 250 |
12 MHz |
5 |
(20)33 |
(20)25 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4638B-275M |
251 – 300 |
5 MHz |
6.5 |
(50)66 |
(50)62 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4933A-280M |
251 – 300 |
10 MHz |
5.5 |
(50)66 |
(50)58 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4658B-275M |
251 – 300 |
15 MHz |
5.5 |
(50)71 |
(50)52 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
Tableau comparatif des modèles – Série 5W4 (351 MHz – 640 MHz)
| Modèle | Plage de fréquence (MHz) | Bande passante (-3dB) | Perte d’insertion (dB) | @Fo–( )M/dB | @Fo+( )M/dB | Impédance | Puissance | Type | Taille (mm) | Bande RF |
|---|
| TFW4640B-375M |
351 – 400 |
9 MHz |
6 |
(50)63 |
(50)63 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4889A-375M |
351 – 400 |
10 MHz |
5 |
(50)68 |
(50)71 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4436A-400M |
351 – 400 |
18 MHz |
4 |
(50)59 |
(50)37 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4422A-375M |
351 – 400 |
21 MHz |
4 |
(30)36 |
(30)29 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4905B-375M |
351 – 400 |
40 MHz |
2.5 |
(50)30 |
(50)21 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4890A-425M |
401 – 450 |
10 MHz |
5 |
(50)82 |
(50)55 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4423A-420M |
401 – 450 |
18 MHz |
3.5 |
(50)55 |
(50)41 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4433A-425M |
401 – 450 |
23 MHz |
3.5 |
(50)52 |
(50)40 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4630B-435M |
401 – 450 |
26 MHz |
3.5 |
(150)65 |
(150)66 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4691B-425M |
401 – 450 |
28 MHz |
3 |
(50)45 |
(50)32 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4918B-425M |
401 – 450 |
50 MHz |
2.5 |
(100)55 |
(100)48 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41049B-460M |
451 – 500 |
2 MHz |
9.5 |
(50)55 |
(50)52 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4426B-480M |
451 – 500 |
9 MHz |
5 |
(50)59 |
(50)45 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4651B-469.5M |
451 – 500 |
10 MHz |
5 |
(50)71 |
(50)47 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4891A-475M |
451 – 500 |
10 MHz |
5 |
(50)64 |
(50)50 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4438A-460M |
451 – 500 |
17 MHz |
4.5 |
(50)62 |
(50)47 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4439A-475M |
451 – 500 |
22 MHz |
4 |
(30)31 |
(30)25 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4682B-475M |
451 – 500 |
25 MHz |
3.5 |
(50)49 |
(50)33 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4907B-475M |
451 – 500 |
40 MHz |
3 |
(50)27 |
(50)25 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4892A-525M |
501 – 550 |
10 MHz |
5.5 |
(50)59 |
(50)48 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4455F-525M |
501 – 550 |
19 MHz |
5.5 |
(30)37 |
(30)30 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4683B-525M |
501 – 550 |
25 MHz |
4 |
(50)46 |
(50)34 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4908B-525M |
501 – 550 |
40 MHz |
3 |
(50)37 |
(50)25 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4915B-518M |
501 – 550 |
48 MHz |
3 |
(50)21 |
(50)20 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4893A-575M |
551 – 600 |
10 MHz |
5.5 |
(50)68 |
(50)50 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4463F-580M |
551 – 600 |
15 MHz |
4.5 |
(50)50 |
(50)44 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4461F-575M |
551 – 600 |
19 MHz |
4.5 |
(50)54 |
(50)51 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4461B-575M |
551 – 600 |
19 MHz |
4.5 |
(50)60 |
(50)39 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4909B-575M |
551 – 600 |
40 MHz |
3.5 |
(50)25 |
(50)21 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4471B-612M |
601 – 640 |
19 MHz |
4 |
(50)55 |
(50)36 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4474B-625M |
601 – 640 |
22 MHz |
4.5 |
(50)50 |
(50)40 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4472F-612M |
601 – 640 |
30 MHz |
3.5 |
(50)35 |
(50)30 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
Tableau comparatif des modèles – Série 5W4 (641 MHz – 900 MHz)
| Modèle | Plage de fréquence (MHz) | Bande passante (-3dB) | Perte d’insertion (dB) | @Fo–( )M/dB | @Fo+( )M/dB | Impédance | Puissance | Type | Taille (mm) | Bande RF |
|---|
| TFW41050B-700M |
641 – 700 |
2 MHz |
20 |
(50)48 |
(50)46 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4482B-675M |
641 – 700 |
16 MHz |
6 |
(50)60 |
(50)46 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4671B-675M |
641 – 700 |
20 MHz |
4.5 |
(50)54 |
(50)35 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4483F-680M |
641 – 700 |
30 MHz |
3.5 |
(100)61 |
(100)58 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4642B-725M |
701 – 750 |
5 MHz |
7 |
(50)66 |
(50)45 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4494B-737M |
701 – 750 |
12 MHz |
6.5 |
(50)60 |
(50)45 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4492B-730M |
701 – 750 |
20 MHz |
5 |
(50)53 |
(50)37 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4491B-725M |
701 – 750 |
27 MHz |
3.5 |
(50)45 |
(50)30 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4493B-730M |
701 – 750 |
33 MHz |
4 |
(100)58 |
(100)45 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4672B-775M |
751 – 800 |
20 MHz |
4.5 |
(50)47 |
(50)31 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4503B-800M |
751 – 800 |
26 MHz |
4 |
(50)44 |
(50)30 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4501B-775M |
751 – 800 |
29 MHz |
3.5 |
(50)45 |
(50)30 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4500B-765M |
751 – 800 |
30 MHz |
4 |
(50)40 |
(50)26 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4504B-775M |
751 – 800 |
33 MHz |
4 |
(100)57 |
(100)45 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4644B-825M |
801 – 850 |
5 MHz |
9 |
(50)52 |
(50)52 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4514B-815M |
801 – 850 |
23 MHz |
5.5 |
(100)57 |
(100)59 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4513B-850M |
801 – 850 |
27 MHz |
3.5 |
(50)39 |
(50)27 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4505B-825M |
801 – 850 |
37 MHz |
3 |
(50)34 |
(50)23 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4771B-825M |
801 – 850 |
43 MHz |
3.5 |
(100)64 |
(100)39 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4916B-850M |
801 – 850 |
80 MHz |
2 |
(100)42 |
(100)24 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41051B-868M |
851 – 900 |
2 MHz |
9.5 |
(50)55 |
(50)62 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4531B-875M |
851 – 900 |
24 MHz |
6 |
(50)50 |
(50)37 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4549B-898M |
851 – 900 |
35 MHz |
4 |
(100)62 |
(100)42 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4772B-875M |
851 – 900 |
40 MHz |
3.5 |
(100)56 |
(100)37 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4788B-875M |
851 – 900 |
60 MHz |
3 |
(100)51 |
(100)29 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
Tableau comparatif des modèles – Série 5W4 (901 MHz – 1000 MHz)
| Modèle | Plage de fréquence (MHz) | Bande passante (-3dB) | Perte d’insertion (dB) | @Fo–( )M/dB | @Fo+( )M/dB | Impédance | Puissance | Type | Taille (mm) | Bande RF |
|---|
| TFW41052B-915M |
901 – 930 |
5 MHz |
8.0 |
(50)52 |
(50)58 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4662B-902M |
901 – 950 |
15 MHz |
5 |
(50)50 |
(50)38 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4684B-915M |
901 – 950 |
25 MHz |
4.5 |
(100)56 |
(100)52 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4674B-915M |
901 – 950 |
28 MHz |
5 |
(100)61 |
(100)58 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4553B-915M |
901 – 950 |
29 MHz |
4 |
(100)57 |
(100)48 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4551B-925M |
901 – 950 |
35 MHz |
4.5 |
(50)39 |
(50)27 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4565B-927M |
901 – 950 |
39 MHz |
3.5 |
(100)70 |
(100)43 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4781B-925M |
901 – 950 |
50 MHz |
4 |
(100)55 |
(100)33 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4789B-925M |
901 – 950 |
60 MHz |
3 |
(100)51 |
(100)30 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4571B1-997M |
951 – 1000 |
20 MHz |
2 |
(100)63 |
(100)54 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4571B-975M |
951 – 1000 |
27 MHz |
5.5 |
(50)42 |
(50)31 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4570B-960M |
951 – 1000 |
30 MHz |
4 |
(100)55 |
(100)44 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TTW4510F-987M |
951 – 1000 |
39 MHz |
3 |
(100)55 |
(100)42 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4790B-1000M |
951 – 1000 |
50 MHz |
3.5 |
(100)40 |
(100)27 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
Tableau comparatif des modèles – Série 5W4 (1251 MHz – 1500+ MHz)
| Modèle | Plage de fréquence (MHz) | Bande passante (-3dB) | Perte d’insertion (dB) | @Fo–( )M/dB | @Fo+( )M/dB | Impédance | Puissance | Type | Taille (mm) | Bande RF |
|---|
| TFW4575B-1282.5M |
1251 – 1300 |
29 MHz |
5 |
(100)59 |
(100)47 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41134B-1270M |
1251 – 1300 |
30 MHz |
6.5 |
(100)52 |
(100)51 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4599B-1275M |
1251 – 1300 |
37 MHz |
6.5 |
(70)46 |
(70)33 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4759B-1270M |
1251 – 1300 |
65 MHz |
3 |
(200)54 |
(200)54 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4554B-1310M |
1301 – 1350 |
31 MHz |
5.5 |
(50)35 |
(50)28 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4580B-1350M |
1301 – 1350 |
50 MHz |
4 |
(100)55 |
(100)36 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4538B-1490M |
1451 – 1500 |
40 MHz |
5 |
(100)55 |
(100)40 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41135B-1470M |
1451 – 1500 |
100 MHz |
3.0 |
(200)55 |
(200)33 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4932B-1485M |
1451 – 1500 |
120 MHz |
2.5 |
(180)48 |
(180)27 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41024B-1542M |
1501 – 1500 |
35 MHz |
5.5 |
(50)28 |
(50)21 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
Tableau comparatif des modèles – Série 5W4 (1551 MHz – 1800 MHz)
| Modèle | Plage de fréquence (MHz) | Bande passante (-3dB) | Perte d’insertion (dB) | @Fo–( )M/dB | @Fo+( )M/dB | Impédance | Puissance | Type | Taille (mm) | Bande RF |
|---|
| TFW41032B-1592.75M |
1551 – 1600 |
35 MHz |
5 |
(100)53 |
(100)37 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4588B-1575M |
1551 – 1600 |
50 MHz |
5 |
(100)50 |
(100)32 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41004B-1643.5M |
1601 – 1650 |
35 MHz |
5.5 |
(50)26 |
(50)20 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4917B-1680M |
1651 – 1700 |
35 MHz |
5.5 |
(50)25 |
(50)19 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41097B-1702.5M |
1701 – 1750 |
15 MHz |
9.0 |
(100)42 |
(100)31 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4701B-1725M |
1701 – 1750 |
20 MHz |
7.0 |
(100)54 |
(100)34 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4563B-1748M |
1701 – 1750 |
42 MHz |
5.0 |
(100)47 |
(100)35 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4561B-1747.5M |
1701 – 1750 |
48 MHz |
8 |
(150)60 |
(150)47 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4747B-1725M |
1701 – 1750 |
55 MHz |
5.0 |
(100)45 |
(100)31 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41099A-1740M |
1701 – 1750 |
60 MHz |
5.0 |
(100)40 |
(100)30 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4601E-1747.5M |
1701 – 1750 |
69 MHz |
4 |
(200)60 |
(200)49 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41100A-1745M |
1701 – 1750 |
70 MHz |
5.0 |
(100)40 |
(100)30 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41101B-1747.5M |
1701 – 1750 |
75 MHz |
5.0 |
(100)40 |
(100)28 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41053B-1800M |
1751 – 1800 |
20 MHz |
9 |
(100)56 |
(100)45 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41102B-1765M |
1751 – 1800 |
30 MHz |
7.0 |
(100)59 |
(100)47 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41103B-1767.4M |
1751 – 1800 |
35 MHz |
7.5 |
(100)56 |
(100)38 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41036A-1765M |
1751 – 1800 |
65 MHz |
4 |
(100)42 |
(100)29 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41037B-1787.5M |
1751 – 1800 |
65 MHz |
4 |
(100)43 |
(100)29 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41038B-1797.5M |
1751 – 1800 |
70 MHz |
4 |
(200)55 |
(200)53 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4609B-1800M |
1751 – 1800 |
105 MHz |
3.0 |
(150)44 |
(150)24 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
Tableau comparatif des modèles – Série 5W4 (2101 MHz – 2400 MHz)
| Modèle | Plage de fréquence (MHz) | Bande passante (-3dB) | Perte d’insertion (dB) | @Fo–( )M/dB | @Fo+( )M/dB | Impédance | Puissance | Type | Taille (mm) | Bande RF |
|---|
| TFW4707B-2125M |
2101 – 2150 |
25 MHz |
6.0 |
(100)47 |
(100)31 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41119B-2132.5M |
2101 – 2150 |
45 MHz |
5.5 |
(100)47 |
(100)33 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41120B-2140M |
2101 – 2150 |
60 MHz |
5.0 |
(100)42 |
(100)27 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4796B-2125M |
2101 – 2150 |
66 MHz |
4.5 |
(100)36 |
(100)26 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4524E-2140M |
2101 – 2150 |
73 MHz |
4.0 |
(200)52 |
(200)34 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4624E-2140M |
2101 – 2150 |
86 MHz |
3.5 |
(100)28 |
(100)16 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4874B-2101M |
2101 – 2150 |
167 MHz |
3.0 |
(200)29 |
(200)15 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4607B-2350M |
2101 – 2200 |
88 MHz |
4.5 |
(200)58 |
(200)36 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4602B-2200M |
2101 – 2200 |
95 MHz |
4.0 |
(200)57 |
(200)40 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41123B-2190M |
2151 – 2200 |
20 MHz |
8.0 |
(50)25 |
(50)19 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4708B1-2175M |
2151 – 2200 |
27 MHz |
7.5 |
(100)45 |
(100)32 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4829B-2175M |
2151 – 2200 |
45 MHz |
5.0 |
(100)38 |
(100)27 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4797B-2175M |
2151 – 2200 |
62 MHz |
4.5 |
(150)52 |
(150)39 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41122B-2155M |
2151 – 2200 |
70 MHz |
5.0 |
(100)34 |
(100)22 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41023B-2190M |
2151 – 2200 |
86 MHz |
3.5 |
(100)28 |
(100)16 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41121B-2155M |
2151 – 2200 |
90 MHz |
4.0 |
(100)29 |
(100)19 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4733B-2225M |
2201 – 2250 |
47 MHz |
5.0 |
(150)48 |
(150)36 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4798B-2225M |
2201 – 2250 |
62 MHz |
5.0 |
(150)47 |
(150)31 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4950E-2250M |
2201 – 2250 |
100 MHz |
3.5 |
(100)22 |
(100)15 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4605B-2250M |
2201 – 2250 |
121 MHz |
3.5 |
(200)38 |
(200)25 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4710B-2275M |
2251 – 2300 |
26 MHz |
6.5 |
(100)49 |
(100)34 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4734B-2275M |
2251 – 2300 |
50 MHz |
5.5 |
(150)53 |
(150)44 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4799B-2275M |
2251 – 2300 |
65 MHz |
5.0 |
(150)52 |
(150)36 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4606B-2300M |
2251 – 2300 |
90 MHz |
4.0 |
(20)46 |
(200)31 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4876B-2266M |
2251 – 2300 |
165 MHz |
3.0 |
(200)30 |
(200)16 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4724B-2325M |
2301 – 2350 |
36 MHz |
7.0 |
(150)50 |
(150)46 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4724B-2320M |
2301 – 2350 |
54 MHz |
5.5 |
(100)35 |
(100)25 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4755B-2325M |
2301 – 2350 |
60 MHz |
6.0 |
(150)68 |
(150)40 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW41054B-2400M |
2351 – 2400 |
20 MHz |
6.0 |
(150)50 |
(150)35 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4725B-2375M |
2351 – 2400 |
44 MHz |
7.0 |
(150)45 |
(150)33 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4736B-2450M |
2351 – 2400 |
47 MHz |
5.0 |
(150)49 |
(150)36 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4756B-2375M |
2351 – 2400 |
58 MHz |
6.0 |
(150)48 |
(150)35 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4854B1-2400M |
2351 – 2400 |
100 MHz |
4.5 |
(200)53 |
(200)35 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4836B-2400M |
2351 – 2400 |
170 MHz |
3.0 |
(300)63 |
(300)36 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
| TFW4834B-2400M |
2351 – 2400 |
180 MHz |
3.5 |
(300)58 |
(300)34 |
50 Ω |
1 – 5 W |
Pin |
22.4 × 5.6 × 8.6 |
UHF |
Tableau comparatif des modèles – Série 5W4 (2401 MHz – 2600 MHz)
| Modèle | Plage de fréquence (MHz) | Bande passante (-3dB) | Perte d’insertion (dB) | @Fo–( )M/dB | @Fo+( )M/dB | Impédance | Puissance | Type | Taille (mm) | Bande RF |
|---|
| TFW4536B-2450M |
2401–2450 |
82 MHz |
5.0 |
(200)50 |
(200)28 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW4859B-2450M |
2401–2450 |
100 MHz |
3.5 |
(300)40 |
(300)32 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW4840B-2450M |
2401–2450 |
168 MHz |
3.5 |
(300)45 |
(300)32 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW4922B-2437M |
2401–2500 |
50 MHz |
5.5 |
(100)34 |
(100)25 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW4921B-2437M |
2401–2500 |
60 MHz |
4.5 |
(100)32 |
(100)24 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW4877B-2416M |
2401–2500 |
175 MHz |
3.0 |
(200)24 |
(200)14 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW4860B-2500M |
2451–2500 |
113 MHz |
3.5 |
(300)40 |
(300)26 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW4737B-2550M |
2501–2550 |
40 MHz |
6.5 |
(200)45 |
(200)21 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW4802B-2550M |
2501–2550 |
62 MHz |
5.5 |
(200)45 |
(200)22 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW41124B-2535M |
2501–2550 |
66 MHz |
5.0 |
(100)32 |
(100)24 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW4999B-2535M |
2501–2550 |
153 MHz |
3.5 |
(200)35 |
(200)23 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW4861B-2600M |
2551–2600 |
102 MHz |
5.5 |
(300)46 |
(300)24 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW41042B-2570M |
2551–2600 |
130 MHz |
3.5 |
(200)38 |
(200)17 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW41039B-2590M |
2551–2600 |
130 MHz |
3.5 |
(200)42 |
(200)27 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW4875B-2583M |
2551–2600 |
153 MHz |
3.0 |
(200)29 |
(200)14 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW41008B-2595M |
2551–2600 |
153 MHz |
3.0 |
(200)34 |
(200)20 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW4619B-2593M |
2551–2600 |
182 MHz |
3.0 |
(200)38 |
(200)17 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW4863B-2600M |
2551–2600 |
188 MHz |
3.0 |
(400)51 |
(400)27 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
| TFW41011B-2595M |
2551–2600 |
192 MHz |
3.0 |
(200)31 |
(200)17 |
50 Ω |
5W4 |
Pin |
1–5W |
8.6 |
22.4×5.6 |
UHF |
